14inch-25
Cutter Suction Dredger
Diesel
Hydrocyclone
CTS
Customized
New
1year
Lifelong
30m
19*7.5*2.0
Cumins 447kw
Cumins 224kw
Cumins 30kw
350mm
45m
11m
2000m3/H
400m3/H
1500m
1450mm
70kw-110kw
Siemens
105L/H
Set Sail
Canvas
14 inch cutter suciton dredger
Qingzhou China
8905100000
Product Description
14 inch cutter suction lake sand dredger with mornitoring
1. 14 inch cutter suction dredger brief:
14 inch cutter suction dredger is small size cutter suction dredger . it is water flow is 2000 cubic meter per hour to reach solid capacity about 400 cubic meter per hour . water flow meter . pressure meter concentration meter are the noral configuration except the normal configuration we can match DGPS dredging auxiliary system and video mornitoring system anchor rod and carriage so on .
Hydraulic cutter head rate to add the solid concentration. mixture through the suction pipe into the discharge pipe by the pressure pump to arrived the destination .( power is from hydraulic electric or both together). all main parts such as sand pump and hydraulic pump power from the Cumins diesel engine . hydraulic pump provide the power for lifting winch swing winch . anchor boom winch . .hydraulic spud carrier and cutter head so on .
Set Sail main product : cutter suction dredger . jet suction dredger . wheel bucket suction dredger . bucket chain river mining and sand dredger .trailing hopper suction dredger .land mining machinery . multi function service working boat . sand transportation boat . sand washing platform . meantime we can according to the customers request to do the any dredging machinery .
| All cutter suction dredger just let customer reference . we can according to your requirement to made and equiped the all brand device |
3.14 inch cutter suction dredger basic parameter :
| No. | Item | specification |
| 1 | Total length | 30m |
| 2 | Main engine power /brand | Cumins 447 kw |
| 3 | Auxiliary engine power /brand | Cumins 224kw |
| 4 | Harbor generator | Cumins 30kw |
| 5 | Pump diacharge pipe diameter | 350mm |
| 6 | Head | 45m |
| 7 | Maximun dredging depth | 11m |
| 8 | Water flow | 2000m3/h |
| 9 | Solid capOUR acity | 400m3/h |
| 10 | Maximum discharge distance | 1500m |
| 11 | Cutter head diameter | 1450mm |
| 12 | Cutter head power | 70kw |
| 13 | Draft | 1.4m |
| 14 | Total weight | 90t |
| 15 | Total fuel oil cunsumption | 105L/H |

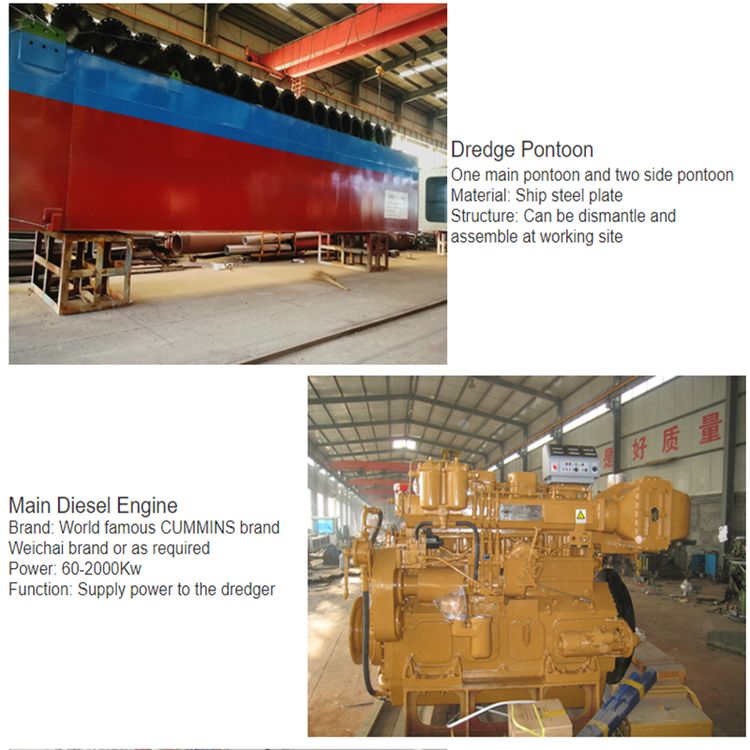

4. Mainly parts introduce:
Best parts will be used for the dredgers, like world famous Cumins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system.
Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves.
5.Our cutter suction dredger feature:
| 1 | Processing furface so flat and complete |
| 2 | Transportation material so quickly use the HDEP pipe . |
| 3 | Contorl and display so clear and easy use the full automatic mornitoring system |
| 4 | Configuration rich such as water flow meter . depth sounder . video mornitoring system so on |
| 5 | Low pollution steady capacity |
6. Our manufactur machine show :
7.Our customer:
8. Our factory :
| Set sail factory is found in 1992 . it is one of the leader of china dredging machinery equipment industrial. We have manufacture experience more than 20 years so far. Our mainly product : all kinds power of cutter suction dredger (electric hydraulic ) jet suction dredger trailing suction dredger wheel suction dredger chain bucket dredger chain bucket mining dredger land mining machinery multi-function service working boat sand transportation boat sand wishing machinery etc. We can according to customers requirement to make the design and customize the product . |
9. Questions for buyer :
| 1 | How many water flow is the cutter suction dredger ? |
| 2 | How many maximum dredging depth ? |
| 3 | How many kilo meter is your discharge distance ? |
