Product Description

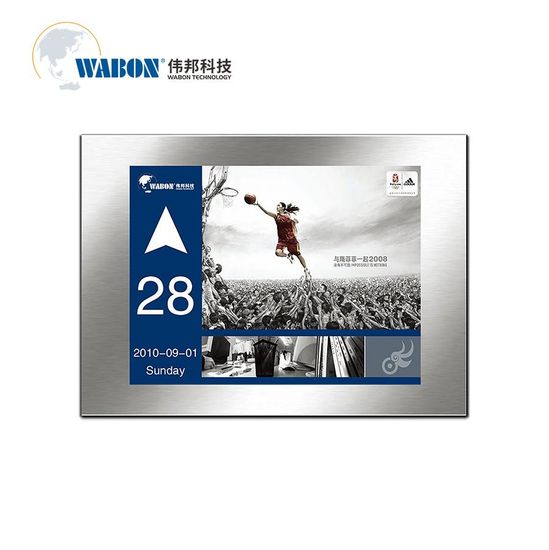

EGES-T series display is a kind of elevator multimedia color LCD with LAN network update function developed by Weibang Technology. This series of products have several powerful functions: elevator real-time operating status display function, LOGO and time and date display function, local video music picture playback function, play content LAN remote update function, text information cell broadcast function, power saving operation function. Weibang Technology can provide shielded twisted pair (two copper wires) and wireless, optical fiber three advanced and mature networking solutions to meet customers' requirements for elevator LCD real-time control.
| model | EGES-084T | EGES-104T | EGES-121T | EGES-150T | EGES-170T | |
| show | display screen | 8.4 Inch | 10.4 Inch | 12.1 Inch | 15 Inch | 17 Inch |
| Display size (mm) | 162x121 | 214×161 | 247×186 | 304x228 | 335x268 | |
| Image ratio | 4:3 | 4:3 | 4:3 | 4:3 | 4:3 | |
| resolution ratio | 800x600 | 1024×768 | 1024x768 | 1024x768 | 1280x1024 | |
| Show brightness | 330 | 400 | 400 | 350 | 350 | |
| contrast ratio | 500:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | |
| angle of view | -85°~85° | -85°~85° | -85°~85° | -85°~85° | -85°~85° | |
| Backlight life span / hour | 50000 | 50000 | 50000 | 50000 | 50000 | |
| response time /ms | 18 | 25 | 25 | 30 | 3.5 | |
| system | operating system | Android 10 | ||||
| CPU | Car rules | |||||
| internal storage | 2GB DDR 3 | |||||
| memory | 8G eMMc | |||||
| communication mode | Parallel signal | Gray code, BCD code, seven-segment code, etc | ||||
| Serial signal | RS-485, RS-422, CAN, Tyssen, OTIS, Kone, Mitsubishi, Xizi, Xinshida, Mernike, etc | |||||
| joggle | Audio and video interface | HDMI OUT ×1 | ||||
| network interface | Wired network LAN 1 (RJ45 100 / 1000M Ethernet), wireless network WiFi×1(802.11bgn) | |||||
| Storage extension | Micro TF Card×1 32G (Max) | |||||
| Other interfaces | Can ×1,RS485 ×1,USB 2.0(TypeA)×2 ,DC IN(3.81-2P) | |||||
| Media format | video frequency | mpg,mpeg,avi,mp4,divx,vob,mkv,flv,mov,rm,rmvb,ts,tp | ||||
| audio frequency | Support for MP3, and other audio format | |||||
| picture | jpg,jpeg,gif,bmp,png | |||||
| text | txt | |||||
| program | Play mode | Horizontal screen, portrait screen, full screen, split screen | ||||
| Program transmission | USB, LAN transmission, and WAN transmission | |||||
| Real-time streaming | support | |||||
| way to install | Inbedded, external | |||||
| Display mode | Horizontal screen, vertical screen | |||||
| Timed function | Multi-time timing switch machine, port timing automatic switch | |||||
| administration software | Multimedia management system (PC + mobile phone terminal) | |||||
| input voltage | DC24V | |||||
| input currenton | 1A | 1A | 1A | 1A | 1A | |
| The power of the machine | ≤13W | ≤15W | ≤18W | ≤20W | ≤22W | |
| loudspeaker | Stereo sound of 1 * 3W 4 Ω | |||||
| operating ambient temperature | -20~70 | -20~70 | -20~70 | -20~70 | -20~70 | |
| Storage of the ambient temperature | -30~70 | -30~70 | -30~70 | -30~70 | -30~70 | |
Guangdong Wabon Technology Co., Ltd. was established in June 2004. It is committed to the development and manufacture of high-quality elevator human-computer interaction system, and the use of AI algorithm for professional customization of commercial intelligent hardware in various industries, providing advanced, complete and diverse multimedia networking solutions.
