Model NO.:

AM8-3001LB

Type:

Namur Sensor

Output Signal Type:

Switching Type

Production Process:

Normal Wirewound

Material:

Metal

Feature:

SemiConductor

IP Rating:

IP67

Certification:

Customized:

Customized

Output:

Analog Sensor

Usage:

Position Sensor

Theory:

Namur Sensor

Antistop:

Numur Sensor

Protection Degree:

IP67

Test:

100% Full Load in Test

Dimension:

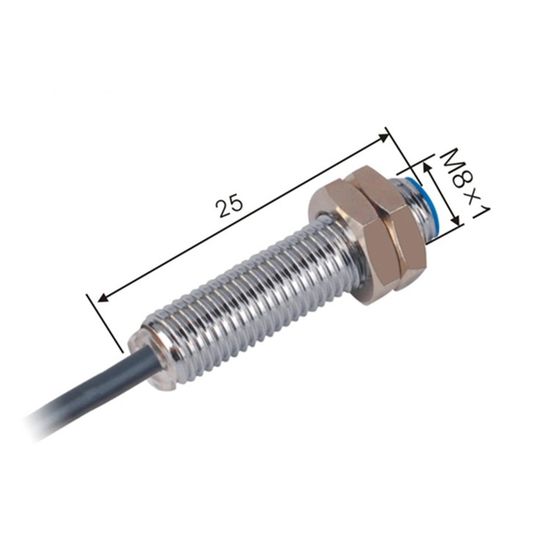

M8*25mm

Sensing Range:

1mm

Flush Type:

Yes

Manufacturer:

Yueqing Winston Electric Co.,Ltd

Trademark:

Winston/OEM/Neutral

Transport Package:

Export Standard Carton Box or ODM

Specification:

Origin:

China, Zhejiang, Wenzhou

HS Code:

903300000

Product Description

Professional supplier, not only can OEM, also can ODM, Already got CE.
Diameter: M8, M12, M18, M30, Detection object: Q235 Steel. Rated voltage: 8.2VDC. IP67. Two wire, flush type and non-flush type; Detection distance: 1mm, 2mm, 4mm, 5mm, 8mm, 10mm, 15mm

Technical Parameters:

Model	Two-wire normally close	AM8-3001LB
Specification	Rated Vollage	8.2V
	Sensing Range	1mm
	Standard Object Q235 steel(mm)	12121t
	Oscillating /Stop Pscillating Current	≥2.2mA/≤1mA
	load resistance	1KΩ
	Switch frequency, Flush	1.5Hz
	Shell material	Nickel-plated brass
	Protection Level	IP67
	working environment temperature	-20ºC~70ºC
	External wiring diagram

Namur sensor, also called safety explosion proof proximity switch, is made according to NAMUR and DIN 1923, measured and designed as per chemical industry standard.

Why choose us?

1.Professional manufacture
2.With complete varieties
3.Accept OEM&ODM
4.We have completely sales service system, ensure every detail is going smooth
5.We have new designed products each year by our R&D Department
6.Perfect testing system ensure each product is qualified

Price	$6.23 / Pieces
Mini Order	-+Subtotal: $62.3
Availability	In Stock

Purchase details Payments: Returns&Refunds: Eligible for returns and refunds View More

Am8-3001lb Namur Safety Explosion-Proof Proximity Sensor Switch with Ce
