Model NO.
XM-CCB
Type
Traffic Barrier
Sample
Free
Size
1.1X2.1m, 1.17X3.05m
Frame Pipes
25mm O.D
Inner Pipes
20mmo.D
Metal Feet
600X60X6mm
Main Markets
American, Australia, New Zealand, Us, Ca etc
Transport Package
on Pallet
Specification
1.1x2.1m, 1.3x2.3m etc
Trademark
XM
Origin
Anping County, China
HS Code
73089000
Production Capacity
400PCS/Day
Position:
Pedestrian Fence
Material:
Steel
Function:
Separation
Upright Post:
19*19
Post Fixation:
Embedded Type
Degree of Distortion:
Flexible Barrier
Galvanized pvc coated metal crowd control barrier road barrier(XMM-RB)
Product Description
Product Description
Crowd control barriers are also called crowd control fencing, removable barriers, pedestrian barricade, pedestrian barriers, portable fence etc.
Temporary pedestrian barricade incorporate a specially designed locking system, that is both easy to use and very secure. The barriers are light and easy to handle, while being strong and robust at the same time.
Applications:
Sporting events, Concerts, Public Gatherings, Construction Sites, Any site and public restriction area.
Main markets:
America, Australia, New Zealand, European countries, and Asia countries.
Surface treatment:
(1). Pre hot dipped galvanized tube welded
(2). Fully hot dipped galvanized after welded
(3). Pre hot dipped galvanized tube welded and then polyester powder coated
1. American Standard Specification:
2. AU and New Zealand Standard Specification:
3. European Standard Specification:
(A) Flat-style feet, is the ideal choice at special events or venues that require funneling crowds or traffic in parallel lines.
Minimizes the tripping hazard and vehicle tires roll easily over the feet without damage the barricade.
The flat feet distribute weight evenly and rubber grommets provide added protection for sensitive floors.
Two holes in each foot allow it to be anchored to the ground.
(B) Bridge-style feet design provides maximum stability for the barrier , thus making the product an ideal choice for use on grass, soft or uneven surfaces.
The Bridge Foot provides the best resistance to pushing by crowds, so if you are planning a parade, rally or concert, choose this for your sensitive crowd control needs.
(C) Cross-style feet:
Its feet are welded with the panel, so it's more convenient to install.
Provides maximum stability for the barrier, thus making the product an ideal choice for use on grass, soft or uneven surfaces.
Barrier/Barricade production flow:
Quality control and package:
Contact us if you are interested.
Anping County XiangMing Wire Mesh Products Co., Ltd
Contact person:Bella Li
Mobile: +86 18942659818
Temporary pedestrian barricade incorporate a specially designed locking system, that is both easy to use and very secure. The barriers are light and easy to handle, while being strong and robust at the same time.
Applications:
Sporting events, Concerts, Public Gatherings, Construction Sites, Any site and public restriction area.
Main markets:
America, Australia, New Zealand, European countries, and Asia countries.
Surface treatment:
(1). Pre hot dipped galvanized tube welded
(2). Fully hot dipped galvanized after welded
(3). Pre hot dipped galvanized tube welded and then polyester powder coated
1. American Standard Specification:
| Height | 1170mm |
| Length | 9ft, 9.5ft |
| Square tube | SHS 20x20mm |
| Detached flat feet | 600x75x8mm |
| Surface treatment | Hot dipped galvanized tube welded and then polyester powder coated |
| Color | White (popular), green, etc |
2. AU and New Zealand Standard Specification:
| Panel Size | 2200mm(L) x 1100mm(H) |
| Frame | 25mm O.D. |
| Infill Pickets | 20mm O.D. |
| Spacing | 200mm (popular), 60mm, 100mm, 190mm |
| Surface Treatment | (1). Pre hot dipped galvanized tube welded (2). Fully hot dipped galvanized after welded |
| Feet | Flat/detached Feet - removable, 600x60x6mm, or as required |
3. European Standard Specification:
| Panel Size | 2300mm/2500mm (L) x 1100mm (H) |
| Frame | 38mm, 40mm |
| Infill Pickets | 16mm, 20mm, 25mm |
| Spacing | 125mm, 150mm, 200mm |
| Feet | Flat/Cross/Bridge feet |
| Surface Treatment | (1). Pre hot dipped galvanized tube welded (2). Fully hot dipped galvanized after welded |
(A) Flat-style feet, is the ideal choice at special events or venues that require funneling crowds or traffic in parallel lines.
Minimizes the tripping hazard and vehicle tires roll easily over the feet without damage the barricade.
The flat feet distribute weight evenly and rubber grommets provide added protection for sensitive floors.
Two holes in each foot allow it to be anchored to the ground.
(B) Bridge-style feet design provides maximum stability for the barrier , thus making the product an ideal choice for use on grass, soft or uneven surfaces.
The Bridge Foot provides the best resistance to pushing by crowds, so if you are planning a parade, rally or concert, choose this for your sensitive crowd control needs.
(C) Cross-style feet:
Its feet are welded with the panel, so it's more convenient to install.
Provides maximum stability for the barrier, thus making the product an ideal choice for use on grass, soft or uneven surfaces.

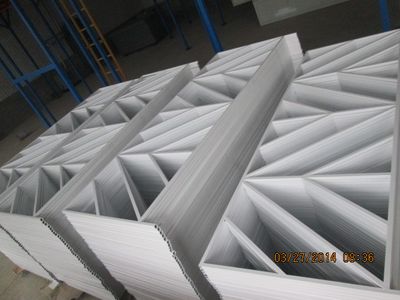

Barrier/Barricade production flow:
Quality control and package:
