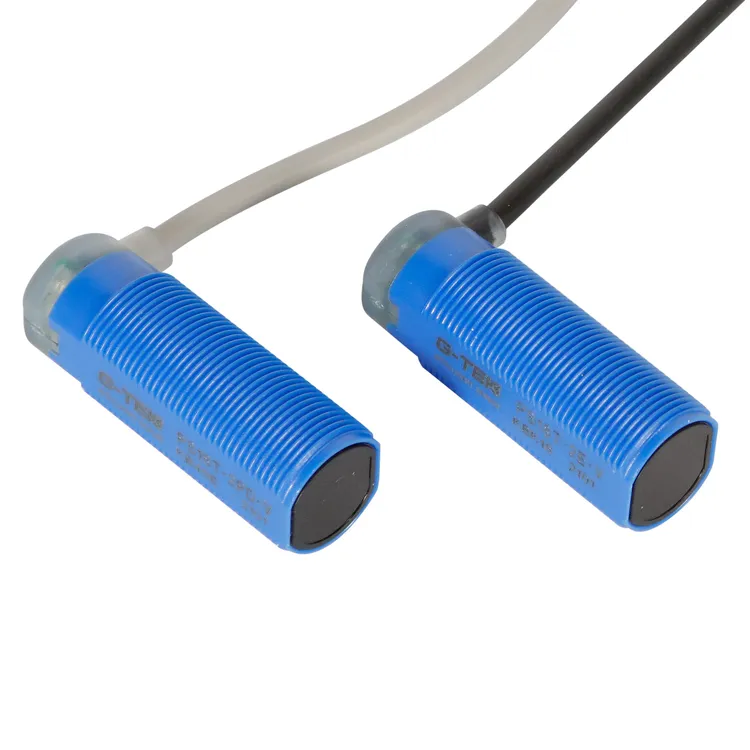

PS18T series photoelectric sensor is one economical shell product which can be a replacement of PM18T, New optical structure, effectively suppress light interference, Special outlet design saves installation space. PS18T photoelectric sensor installed at the turnstile gate entrance is used to detect whether people intrude into the turnstile gate. When swiping the card outside the yellow line, there is no object at the gate entrance, and the sensor signal is normal, the wing door will open; if the person goes inside the yellow line, the sensor signal at the gate entrance changes, even if swiping the card, the wing door will not open. The purpose of this design is to prevent the opening and closing of the wing gate when swiping the card at a short distance, which may cause potential safety hazards, and also prevent ticket evasion. The product detection distance is 20m , with Reverse polarity protection, over-current and over-voltage protection functions, Epoxy resin sealing against rugged environment
| Photoelectricsensor | PS18T-2ND |
| Detection Type | Opposed type |
| Detecting Object | Min Φ18mm opaque object |
| Detecting Distance | 20m |
| Supply Voltage | 10~30V DC |
| No-load Current | Emitter: Max.12mA; Receiver: MAX.7mA |
| Response Time | Max.4ms |
| Light Source | Infrared LED(850nm) |
| Action Mode | Dark On |
| Control Output | NPN open collector |
| Indicator | Power indicator:Green Action indicator:Red |
| Circuit Protection | Reverse polarity protection, short circuit protection, over voltage protection |
| Ambient Brightness | Sunlight:Max.60000lx;Fluorescent:Max.3000lx |
| AmbientTemperature | -30~+60ºC(Non-freezing),Storage:-40~+80ºC |
| Ambient Humidity | 0~90%RH |
| Material | Housing:PC+ABS; Cable: PVC |
| Cable | Emitter:black Receiver: Grey Φ4, 2m |
| Protection Rate | IP67 |
| Accessory | Screw |
