HDS-772S132Z2
1 Year
Car, SUV, Corn Machine, Harvester, Engineering Vehicles, Agricultural Vehicles, Forklift, Escort Car, Sightseeing Car, Truck, RV
10''
IP69
RoHS, CE, ISO
12 Months
Aluminum
7-Inch IPS Screen
2 CH Ideo Inputs
DC24+174V(Td350ms) 5pulses
DC11-32V
1920(H) X 1080(V)
130°
IP69K
CE, FCC, ISO9001: 2000, RoHS, E-MARK
Single Screen + 2 Split Screen
-20ºC to +70ºC
15 Meters (Built-in 18 850nm Infrared Lamps)
Veise/Customized
Each Set to Be Packed in Coloured Box
Standard
Guangzhou
8528591090
Product Description

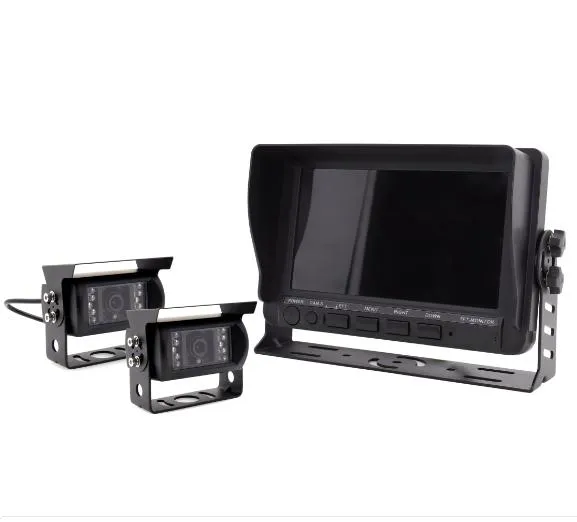

7inch AHD Car Camera Monitor System with Dual Cameras for heavy duty equipment
7-inch IPS screen monitor supports 2 video inputs
Supports dual-screen display
Resolution 1024RGBX600
Digital video processor
OSD menu function
High temperature resistant ABS+PC plastic shell
U-shaped bilateral metal bracket/Sun visor
600cd/M2 high brightness
Anti-dump pulse voltage
Energy-saving and low-power independent power supply
DC11~32V working voltage
Built-in reverse polarity, LED constant current,
load dump pulse voltage suppression protection
HD car camera
IP69K waterproof rating
1080P horizontal resolution
18 pcs 850nm infrared LED
Heat-dissipating aluminum alloy shell
Nitrogen filling to prevent fogging
Cold-resistant waterproof tail cable
Acrylic glass viewing window
Waterproof aviation connection interface
U-shaped + bilateral fastening support
5G seismic rating
Heating wide voltage can be customized
DC 12V operating voltage
Pure copper cable
Double injection of inner and outer molds and O-rings
4-core aviation head adopts phosphor bronze PIN pin
Supports dual-screen display
Resolution 1024RGBX600
Digital video processor
OSD menu function
High temperature resistant ABS+PC plastic shell
U-shaped bilateral metal bracket/Sun visor
600cd/M2 high brightness
Anti-dump pulse voltage
Energy-saving and low-power independent power supply
DC11~32V working voltage
Built-in reverse polarity, LED constant current,
load dump pulse voltage suppression protection
HD car camera
IP69K waterproof rating
1080P horizontal resolution
18 pcs 850nm infrared LED
Heat-dissipating aluminum alloy shell
Nitrogen filling to prevent fogging
Cold-resistant waterproof tail cable
Acrylic glass viewing window
Waterproof aviation connection interface
U-shaped + bilateral fastening support
5G seismic rating
Heating wide voltage can be customized
DC 12V operating voltage
Pure copper cable
Double injection of inner and outer molds and O-rings
4-core aviation head adopts phosphor bronze PIN pin
System model | HDS-772S132Z2 |
High-Definition Car LCD Monitor (MHD-772S) | |
Color LCD screen | 7-inch IPS screen |
Resolution | 1024(H) X 600(V)dot |
Video input | 2 CH ideo inputs |
Picture mode | Single screen + 2 split screen |
Video signal input | CVBS /AHD720P /1080P |
OSD Menu Function | Separately set up image/mirror, reversing delay time setting, trigger priority, multi-language |
Brightness(cd/m2) | 600 |
Surge and load dump protection | ISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms) |
Seismic rating | GB/T 2423.56-2018 standard (random 5G vibration) |
Working temperature | -20ºC to +70ºC |
Storage temperature | -30ºC to +80ºC |
Working voltage | DC11-32V |
Dimensions | (L x W x T) (216 x 150 x 85mm) |
High-Definition Car Waterproof Camera(CHD-132Z) | |
Effective pixels | 1920(H) X 1080(V) |
Horizontal resolution | 1080P |
Viewing angle | 130° |
Infrared distance | 15 meters (built-in 18 850nm infrared lamps) |
Waterproof rating | IP69K |
Working voltage | DC12V±10% (powered by the display) |
Working temperature | -20ºC to +60ºC |
Storage temperature | -30ºC to +70ºC |
Vibration resistance level | 5G (conforms to GB-T2423056-2006 standard) |
Dimensions | 108(W) x 78(H) x 75(D) mm |
Video Signal Cable(XC-HD0004-B-15M) | |
Interface | 4 core aviation male and female connector |
Length | 15 meters |
Detailed Images
Application
Our Company
Our Company
R & D
Quality Control
The light intensity analyzer ensures that the output light intensity of LED warning light conforms to ECE R65;
The patented sealed pressure tester to ensure that the waterproof level of the camera and light conforms to IP69K;
