CL-A11C
One Pile with One Charge
220-240V
50A
50/60Hz
11kw
Type 1
3/5m
Green/Yellow/Blue/Red
Wall-Mount/Floor-Stand
IP55
218*109*404mm
4.5kg
CE/CB/Kc/Au
24 Months
Carton
218*109*404mm
China
8504409999
Product Description

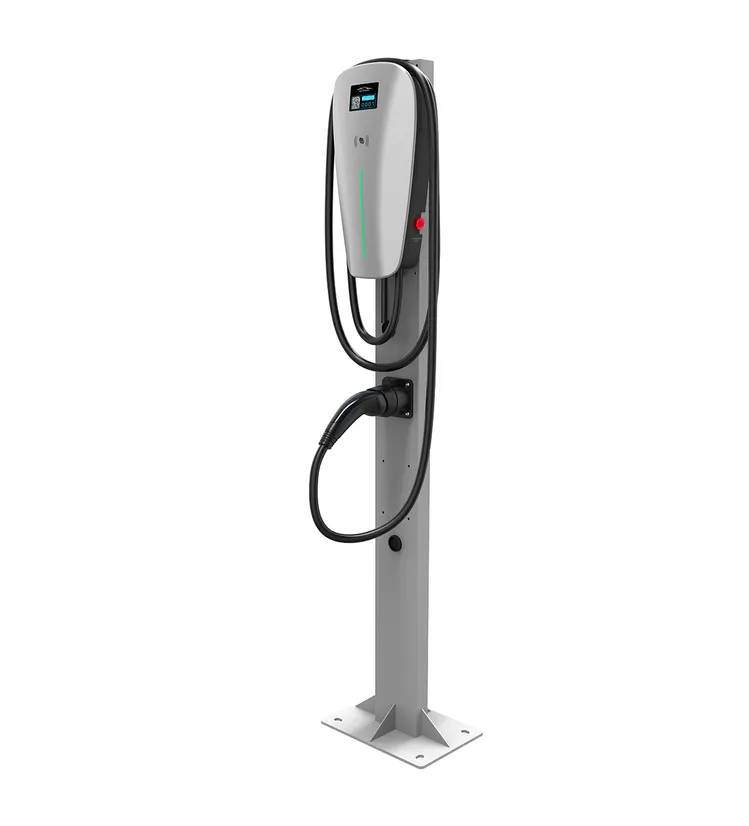

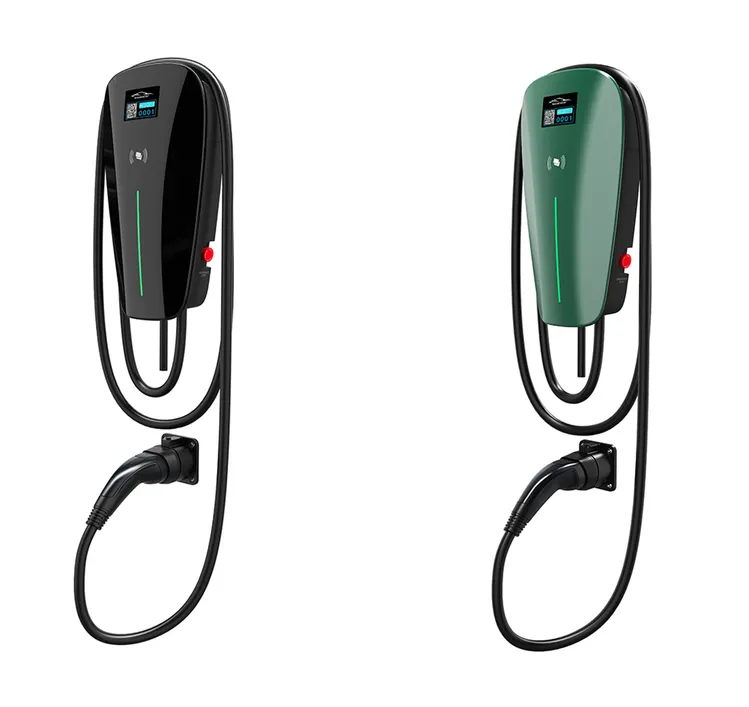

| Product Name | Type 1 50A 11KW Wall-mounted OCPP EV Charging Station with APP |
| Input | |
| Power Supply | P+N+PE |
| Voltage | 220-240V |
| Current | 50A |
| Frequency | 50/60Hz |
| Output | |
| Voltage | 220-240V |
| Max Current | 50A |
| Rated Power | 11kw |
| User Interface | |
| Charge plug | Type 1 |
| Cable Length | 3/5m (including connector) |
| Enclosure | ABS+PC(IMR technology) |
| LED Indicator | Green/Yellow/Blue/Red |
| RFID | Non-contact(ISO/IEC 14443 A) |
| Start Method | QR code/Card/BLE5.0/PnC |
| Communication | |
| Interface | BLE5.0/RS485; Ethernet/4G/WiFi(optional) |
| Protocol | OCPP 1.6J/2.0J(optional) |
| Safety | |
| Energy Meter | Onboard Metering, Accuracy level 1.0 |
| Emergency Stop | Yes |
| RCD | 30mA Type A+6mA DC |
| EMC Level | Class B |
| Protection Grade | IP55 and IK08 |
| Electrical Protection | Over-current, Leakage, Short circuit, Grounding, Lightning, Under-voltage, Over-voltage, and Over-temperature |
| Certification | CE,CB,KC,AU |
| Standard | EN/IEC61851-1, EN/IEC61851-21-2 |
| Working Environment | |
| Installation | Wall mounted/ Floor mounted(with column optional) |
| Temperature | -25ºC~+55ºC |
| Humidity | 5%~95%(Non-condensing) |
| Altitude | ≤2000m |
| Packing Details | |
| Product Size | 218*109*404mm(W*D*H) |
| Package Size | 517*432*207mm(L*W*H) |
| Net Weight | 4.5kg |
