AG-H132
16A Single Phase
Face to Face
OEM & ODM
Pre-Evaluation with Client
Fast and Efficiency
16A 250V
AC IEC62196 Type 2
EV Charger
Yes
Fast EV Charging Station
CCC, CE, TUV, RoHS
24 Months
AEGEN
by Sea, by Air
16A/32A Type2 Plug
Zhejiang
8536690000
Product Description

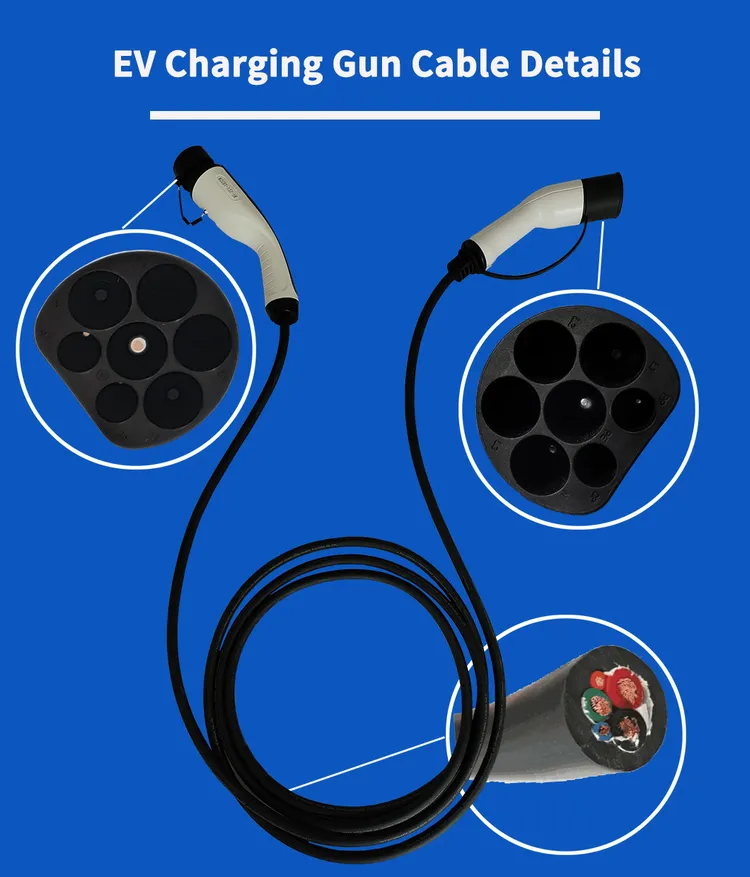

Electric Vehicle Charger Plug Tesla Type1 Type2 GB/T AC EV Charging Gun
AC EV Charging Gun for 3.7KW -7.4 KW -22KW Capacity EV Charging Station
Product Specification
Mode: VCC-M2F1-132
Certificate: CE
Current: 16A-32A 1-Phase - 3Phase
Power: 3.7KW -7.4 KW -22KW
Type : AC IEC62196 Type2
Key Features
-High compatibility. It can charge all EVs manufactured in Europe correctly and effectively.
-Easy to install. Products are sent to clients with associated installation tools and users manual .Users are able to install the charger .
-Easy to maintain. The modularized structure makes easy maintenance ,once anywhere was wrong ,just replace one part like controller / contactor / type B RCD
| Product Name | EV Charging Cable |
| Rated Current: | 16A/32A |
| Power: | 3.7KW 7.4KW 11KW 22KW |
| Sockets/Plugs | Type 2 to Type 2 /Type 2 to Type 1/Type 2 to GBT |
| Cable Length | 5m or customized length |
| Rated Operating Frequency | 50HZ/60HZ |
| Operating Voltage | AC 250V / 480V |
| Insulation Resisitance | >1000MΩ(DC500V) |
| Withstand Voltage | 2000V |
| Contact Pin | Copper alloy, Silver |
| Working temperature | -30°C ~+50°C |
| Flame Retardant Grade | UL94 V-0 |
| Contact Resistance | 0.5mΩ Max |
| Waterproof | IP65 |
| Certificate | CB ,TUV,CE,Rohs Approved |
| Weight | G.W./N.W. 3.55KG/2.57KG |
| Compliance | IEC 62196-1:2014 EN 62196-2:2017 EN50620 |
