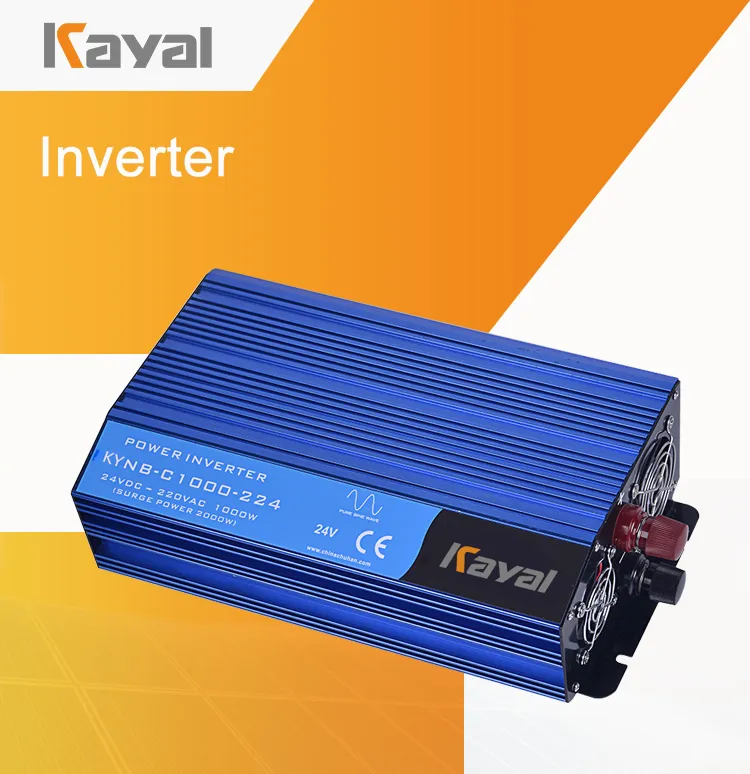

KYNB-C6000
CCC, ISO9001, RoHS, CE, SAA
1-12000W
off-Grid Inverter
Single
Sine Wave Inverter
DC/AC Inverters
6000W
12000W
Pure Sine Wane
50/60 Ihz
12V/24V/48V/60V
110V/220V
Fuset,Cables with Clips
KAYAL
Carton
530*180*130mm
China
8504403090
Product Description
| KAYAL lnverter | KYNB- C300 | KYNB- C500 | KYNB- C1000 | KYNB-C1200 | KYNB-C1500 | KYNB-C2000 | KYNB-C2500 | KYNB-C3000 | KYNB-C5000 | KYNB-C6000 |
| OUTPUT RATED POWER(W) | 300W | 500W | 1000W | 1200W | 1500W | 2000W | 2500W | 3000W | 5000W | 6000W |
| OUTPUT SURGE POWER(W) | 600W | 1000W | 2000W | 2400W | 3000W | 4000W | 5000W | 6000W | 10K | 12K |
| WAVE | Pure Sine Wane | |||||||||
| WAVE DISTORATION | 3.00% | |||||||||
| FREQUENCY | 50/60 IHZ | |||||||||
| DC INPUT | 12V/24V/48V/60V | |||||||||
| AC OUTPUT | 110V/220V | |||||||||
| CHARGING MODE | When the power is off, it will switch to the inverter automatically 40ms-60ms | |||||||||
| PROTECTION | LOW VOL. ALARM | |||||||||
| LOW VOL. SHUT DOWN | ||||||||||
| OVERLOAD PROTECTION | ||||||||||
| OVER VOL. SHUT DOWN | ||||||||||
| OVERHEAT PCOTECTION | ||||||||||
| STANDARD | Compliance with CE, FCC, CNAS, RoHS | |||||||||
| GB 49431-2011, 47 CFR FCC Part 15 Subpart BT, ANSI C63_4: 2014, EN60950-1, EN55032. EN161000-3-2, EN61000-3-3, EN 55024 | ||||||||||
| PRODUCT SIZE(mm) | 224*100*60 | 267*132*68 | 342*166*90 | 342*166*90 | 418*166*90 | 458*166*90 | 400*180*130 | 400*180*130 | 530*180*130 | 530*180*130 |
| NET. Q(G) | 878 | 1360 | 2846 | 2918 | 3750 | 4180 | 6750 | 6750 | 9800 | 9800 |
| 1121 | 1607 | 3400 | 3420 | 4450 | 4680 | 7400 | 7400 | 12000 | ||
| GROSS W/(G) | 12000 | |||||||||
| ACCESSORIES | FUSET, CABLES WITH CLIPS | |||||||||
