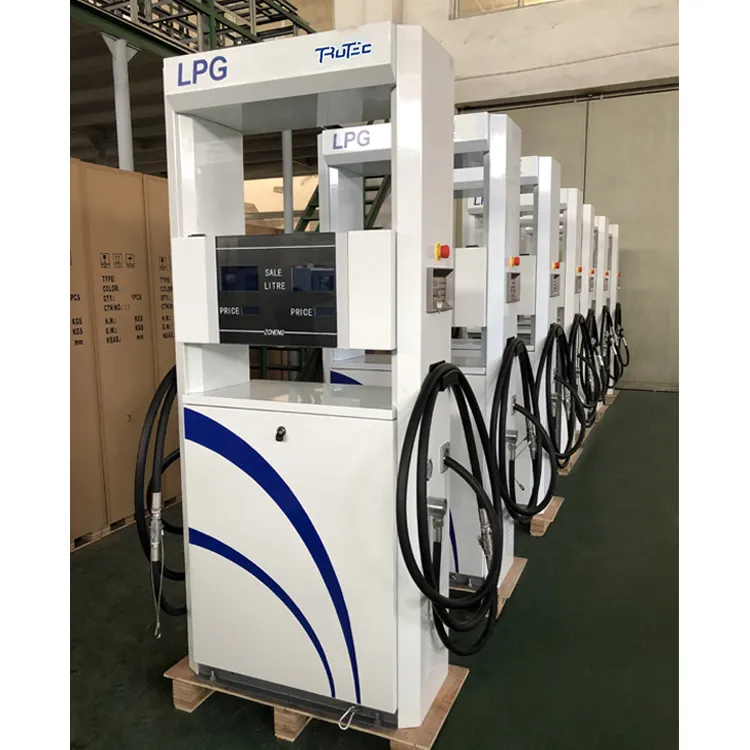

Lpg Nozzle Gas Dispenser for Lpg Dispenser
| Specifications | |||||
Model | Product | Motor | Pump | Flow meter | Nozzle |
ZC-11111 | 1 | 1 | 1 | 1 | 1 |
ZC-11122 | 1 | 1 | 1 | 2 | 2 |
ZC-22222 | 2 | 2 | 2 | 2 | 2 |
ZC-22244 | 2 | 2 | 2 | 4 | 4 |
ZC-33366 | 3 | 3 | 3 | 6 | 6 |
ZC-44488 | 4 | 4 | 4 | 8 | 8 |
| External color, size, shape and inner structure are optional. | |||||
| Technical parameter | |
| Ambient temperature | -25°C~ +55°C |
| Humidity | ≤90% |
| Flow rate | 5~60L/min or 5~90L/min |
| Nozzle | Auto shut-off |
| Suction distance | 6m(Vertical), 50m(horizontal) |
| Accuracy | ±0.30% |
| Repeating tolerance | ≤0.15% |
| Hose | 3m(low hang), 4.5m(high hang) |
| Inlet pressure | ≥54kPa |
| Outlet pressure | ≤0.3MPa |
| Voltage | 110V/220V/380V (50/60Hz) |
| Power | 1HP(0.75kw) |
| Noise | ≤80dB(A class) |
| Unit price range | 0.01~999.99 |
| Single volume range | 0.01~999999.99 |
| Accumulative volume range | 0.01~9999999999.99 |
| Ex-proof signal | ExdmbIIAT3 |
Q1:Are you factory or trading company?
A:We are professional manufacturer for over 20 years
Q2:What kind of product do you make?
A:We produce professional fuel dispenser, LPG dispensesr, CNG dispenser,
mobile fuel dispenser, pump, flow meter, nozzle, etc.
Q3:Can you supply customized service
A:Yes.
Q4:Is that your fuel dispenser easy to operate?
A:Yes, each fuel dispenser packed together with one guide book to help
you get more info. of our fuel dispenser, guide you operate in the
correct way, and future maintain.
Q5:What can we do if we meet problem and need technical consulting?
A:Please give us detail of problem you have, any picture or video
will be more better to help us find a solution for you.
