FAW cargo truck CA1161
1
1
Flatbed Style
Manual
Euro 2
1-10t
Diesel
4×2
≤5
150-250hp
6-8L
ISO
Radial
New
Cargo Truck FAW
FAW Truck lorry
4X2, 4X4 truck
Rhd, LHD cargo truck
>8 Tons cargo truck
Tiger V cargo truck
FAW
Nude
ISO
China
87042230
Product Description

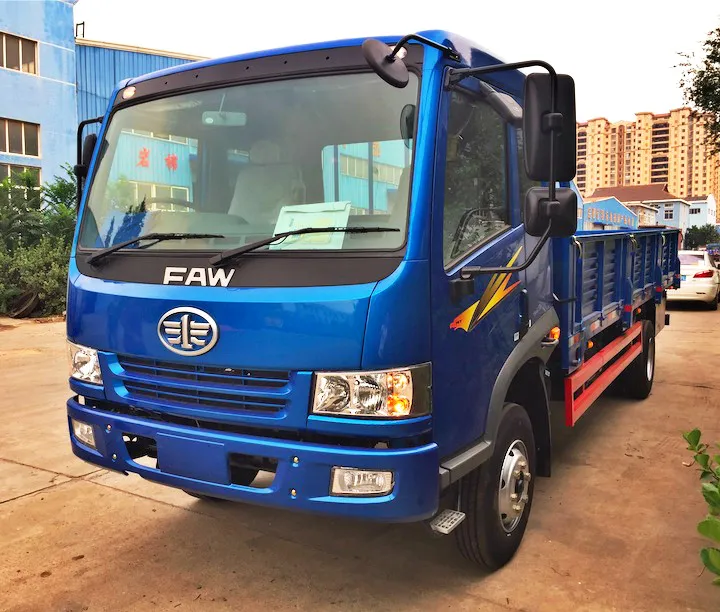

FAW Truck Lorry 4X2 160HP 220HP 8-10 Ton Cargo Truck
FAW 8-10 Tons Lorry truck light truck
1. Type: CA1161
2. Cabin: Long V/ JAK/ JK6
3. Engine Model: WP6.210E32 /CA6DLD-22E5/ CUMMINS ISDE245-30
4. Emission standard: Euro II/ V
5. Power (KW): 165HP/180HP/ 210HP/ 220HP/ 245HP
6. Clutch model: 380/ 395/430mm, single plate, dry,
7. Gearbox Model: CA6TB085M/ FAST FULLER 8JS118/ Alission transmission.
8. Rear Axle: CA385/ 435/ 457 single reduction axle
9. Rear Axle speed ratio: 5.725
10. Wheel & tire:9.00R20/ 10.00R20 radial tire, Model 16Ply Rating. 275/70R22.5-16PR/ 295/80R22.5-16PR tubeless tire
11. Axle Base: 4050/ 4770/ 5250/ 5700
12. Fuel Tank: 200L
Overall dimensions Length: 6898/ 7600/ 8300/ 8500mm
Width: 2490/ 2550mm
Height: 2790/ 3150mm
Front overhang(loaded): 1512
Rear overhang(loaded): 2316
Wheel base Front wheel: 2200
Rear wheel: 2200
Passing angle(loaded) Approach angle: 21
Departure angle: 18
Mass
Parameter Curb weight (kg): 7600
Gross truck weight: 16000/ 18000kg
Max. Loaded weight: 7995/ 10050kg
Cargo box dimesion: 4850/ 5400/ 6200/ 6800/ 7200/ 7700x2300x600. Mm
Other products
1) Manufacturer, more than 14yrs professional experience.
2) CCC,SGS and ISO9001 certificate, one year guarantee term provided.
3) Small order can be accepted.
4) Any color and logo will be available.
5) Products can be custommade according to your design, or diversified needs.
Supply various Truck from 5 tons to 40 tons. Lorry, Van Truck, Wagon Truck, Cargo Truck, Oil Tank Truck, Garbage Truck, cemenet tank truck and so on.
all types semi trailers, low bed semi trailer, container transport semi trailer, side wall semi trailer, store house bar series, van series, car carrier semi trailer ,dump trailer, tanker trailer series, concrete mixer truck series etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for tires. Our products are mainly exported to Philippine, Tunisia, Vietnam, Tanzania, Angola, Mongolia, Venezuela, UAE, Kenya, ect
We're one professional manufacturer which refitting special truck and trailer in China, established in 1969, more than 40 yrs producing experience, a growing enterprise with endless innovations and development. Our corporation mainly specializes in the various semi trailers and special vehicle related business, such as dump truck, tanker trailer, concrete mixer truck, and etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for axles and hydraulic cylinders. We're one of the earliest company to get the approval of the ISO, CCC and Compulsory Product Certification Enterprises. We have exported more than 30 countries from 2005.Looking forward to your visiting or calling.
Our Market
Packing usually in nude, shipping by RORO or bulk carrier ship, also we can do CKD or SKD
Product Parameters
FAW 8-10 Tons Lorry truck light truck
1. Type: CA1161
2. Cabin: Long V/ JAK/ JK6
3. Engine Model: WP6.210E32 /CA6DLD-22E5/ CUMMINS ISDE245-30
4. Emission standard: Euro II/ V
5. Power (KW): 165HP/180HP/ 210HP/ 220HP/ 245HP
6. Clutch model: 380/ 395/430mm, single plate, dry,
7. Gearbox Model: CA6TB085M/ FAST FULLER 8JS118/ Alission transmission.
8. Rear Axle: CA385/ 435/ 457 single reduction axle
9. Rear Axle speed ratio: 5.725
10. Wheel & tire:9.00R20/ 10.00R20 radial tire, Model 16Ply Rating. 275/70R22.5-16PR/ 295/80R22.5-16PR tubeless tire
11. Axle Base: 4050/ 4770/ 5250/ 5700
12. Fuel Tank: 200L
Overall dimensions Length: 6898/ 7600/ 8300/ 8500mm
Width: 2490/ 2550mm
Height: 2790/ 3150mm
Front overhang(loaded): 1512
Rear overhang(loaded): 2316
Wheel base Front wheel: 2200
Rear wheel: 2200
Passing angle(loaded) Approach angle: 21
Departure angle: 18
Mass
Parameter Curb weight (kg): 7600
Gross truck weight: 16000/ 18000kg
Max. Loaded weight: 7995/ 10050kg
Cargo box dimesion: 4850/ 5400/ 6200/ 6800/ 7200/ 7700x2300x600. Mm
Other products
Our advantage
1) Manufacturer, more than 14yrs professional experience.
2) CCC,SGS and ISO9001 certificate, one year guarantee term provided.
3) Small order can be accepted.
4) Any color and logo will be available.
5) Products can be custommade according to your design, or diversified needs.
Supply various Truck from 5 tons to 40 tons. Lorry, Van Truck, Wagon Truck, Cargo Truck, Oil Tank Truck, Garbage Truck, cemenet tank truck and so on.
all types semi trailers, low bed semi trailer, container transport semi trailer, side wall semi trailer, store house bar series, van series, car carrier semi trailer ,dump trailer, tanker trailer series, concrete mixer truck series etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for tires. Our products are mainly exported to Philippine, Tunisia, Vietnam, Tanzania, Angola, Mongolia, Venezuela, UAE, Kenya, ect
Certifications
Customer visit
Company Information
We're one professional manufacturer which refitting special truck and trailer in China, established in 1969, more than 40 yrs producing experience, a growing enterprise with endless innovations and development. Our corporation mainly specializes in the various semi trailers and special vehicle related business, such as dump truck, tanker trailer, concrete mixer truck, and etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for axles and hydraulic cylinders. We're one of the earliest company to get the approval of the ISO, CCC and Compulsory Product Certification Enterprises. We have exported more than 30 countries from 2005.Looking forward to your visiting or calling.
Our Market
Packaging & Shipping
Packing usually in nude, shipping by RORO or bulk carrier ship, also we can do CKD or SKD
