CLW8901
24 Hours Online
1 Year
Rear Loader
ISO9000, CCC, TS16949
＞15000L
Euro 2/3/4/5/6
Manual
20T
Diesel
6×4
Dongfeng
Large
Arm Type
New
18-20cbm
Q345b or High Tensile Steel 610 and 700
CLW
Waxed Before on Board
CCC and ISO9001
Suizhou, Hubei
8701909000
Product Description
New HOWO 6X4 20TON Hook Lift Rear Loader Container Bins Garbage Truck for sale
I. Details of New HOWO 6X4 20TON Hook Lift Rear Loader Container Bins Garbage Truck for sale
(1) Functions:
Hook lift garbage truck ( also called roll-off garbage truck ,hool loader container truck ,roll on off truck ,hook lifter truck hook-lift garbage truck,carriage removable/dismountable truck,garbage collection truck,etc) is designed to colledct and transport municipal solid waste ,widely used in residence commnuity ,hospital ,municipal environmental section ,garbage transportation station.
Loading capaciry ranges from 1 tons ,2tons ,3 tons, 5tons ,8 tons ,14tons ,18tons ,20tons ,30tons .
The operation system could be manual or electrical control.
(1) More than 12 years professional manufacturer experience.
(2) CCC ISO9001 agreement
(3) Be designed according to your requirements
(4) Small order can be accepted
(5) We accept 100% inspection, welcome to our factory at any time
(6) 12 month quality guarantee term
VII. COMPANY INFO
I. Details of New HOWO 6X4 20TON Hook Lift Rear Loader Container Bins Garbage Truck for sale
(1) Functions:
Hook lift garbage truck ( also called roll-off garbage truck ,hool loader container truck ,roll on off truck ,hook lifter truck hook-lift garbage truck,carriage removable/dismountable truck,garbage collection truck,etc) is designed to colledct and transport municipal solid waste ,widely used in residence commnuity ,hospital ,municipal environmental section ,garbage transportation station.
Loading capaciry ranges from 1 tons ,2tons ,3 tons, 5tons ,8 tons ,14tons ,18tons ,20tons ,30tons .
The operation system could be manual or electrical control.
(1) More than 12 years professional manufacturer experience.
(2) CCC ISO9001 agreement
(3) Be designed according to your requirements
(4) Small order can be accepted
(5) We accept 100% inspection, welcome to our factory at any time
(6) 12 month quality guarantee term
We can offer 4x2, 6x4, 8x4, Dongfeng, Sinotruck, FOTON, SHACAN, FAW, CAMC, I-SUZU, JMC, JAC with 3m3 to 20m3 garbage compactor trucks.
II. Details of New HOWO 6X4 20TON Hook Lift Rear Loader Container Bins Garbage Truck for sale
| TECHNICAL SPECIFICATION | |||||
| Main specification | Product Name | HOWO HOOK LIFT GARBAGE TRUCK | |||
| Capacity | 20CBM | ||||
| Dimension | 9500x2500x3500mm | ||||
| Chassis | Brand | SINOTRUK | |||
| Cabin | one and a half row cabin, with a sleeper, with A/C | ||||
| Drive Mode | 6x4, Left hand drive or right hand drive | ||||
| F/R Axles | 7T/ 10T*2 | ||||
| Wheelbase | 4350+1300mm | ||||
| Gearbox | 9-Forwards & 1-Reverse | ||||
| Tire | 11.00R20, 10+1pcs | ||||
| Color & Logo | Green & white as client required | ||||
| Engine | Brand | CUMMINS | |||
| Model | C260 | ||||
| Power | 260HP | ||||
| Emission Standard | Euro 2, diesel | ||||
| Type | 6-cylinders in-line, turbo-charged intercooling | ||||
| UPPER STRUCTURE | |||||
| Upper Parts | Maximum hook up capacity | 20CBM | |||
| Hook center height | 1570mm | ||||
| Outer width of box track | 1060mm | ||||
| Clearance height of box track | ≥150 | ||||
| Dump angle | 50° | ||||
| Hook box time | 55s | ||||
| Box locking mode | Lock outside | ||||
| Box rod diameter | 50mm | ||||
| Pull rod offset | 270mm | ||||
| Displacement of hydraulic oil pump | 80ml/r | ||||
| Maximum pressure of hydraulic system | 30Mpa | ||||
| Multi way directional valve of hydraulic system | Import Italy brand | ||||
| Garbage Container | Capacity | 20CBM | |||
| Size | 5700x2368x1915mm | ||||
| Type | Top open container, Side open | ||||
| Material | High-strength steel Q235 | ||||
| Thickness | Side plate 5mm, bottom plate 6mm | ||||
III. HOOK LIFT GARBAGE TRUCK DETAILS
IV. HOOK LIFT GARBAGE TRUCK WROKSHOP
There are more than 500 workers in our factory. Every production details are strictly controlled by our technicial engineers and production manager.

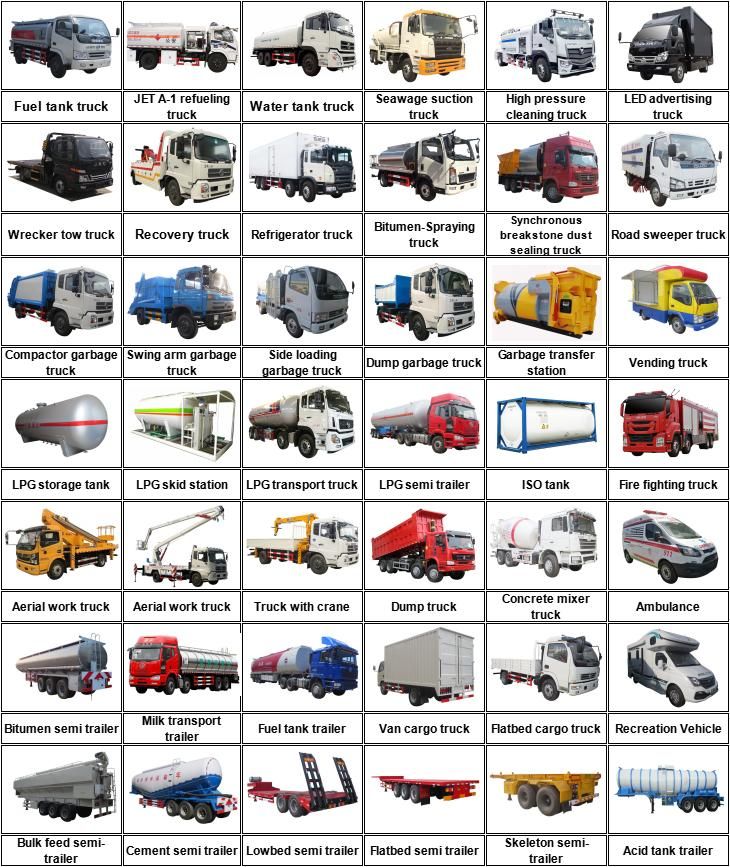

V. OUR OTHER GARBAGE TRUCK SERIES
VI. PRODUCT SHIPPING (RORO OR BULK SHIP OR CONTAINER)
RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.
CONTAINER: The truck is put into the container. This model is used for small model trucks
RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.
CONTAINER: The truck is put into the container. This model is used for small model trucks
VII. COMPANY INFO
CLW SPECIAL AUTOMOBILE CO.,LTD is an authorized special truck manufacturer which has many years in design ,
product ,sales and service in special trucks like as boom truck , fire truck, manlift truck, tank truck , garbage truck, tipper truck ,wrecker truck , refrigerated truck and etc.
Main info as below:
- Established from 2004.
- 12 independents workshops.
- 1000 sets of equipment, 25 assemble lines.
- 300 senior engineers and technicians. About 8000 workers.
- 800kinds of LPG, trucks and semi-trailers.
- 20 years wholesale experience
- Turnover 250 million and Export 20million annually
- Turnover 2 billion trucks and semi-trailers annually.
- LPG/Truck Sold to 90 countries
- Cooperates with DONGFENG,SINOTRUK,I-SUZU,FOTON,FAW,BEIBEN etc.
