*ASME standard available*
*100% new condition by manufacturer direct sale*
*100% quality guaranteed*
I. Details of HOWO RHD LHD 6,000 liters 1000 gallons 3MT loading capacity LPG Gas
Dispenser Trucks LPG Bobtail Truck Price
Chassis brand : Dongfeng ,HOWO, North Benz, JAC, Foton , JMC etc
Tank volume available: 5000 liters, 5500 liters, 8000 liters , 10000 liters, 12cbm, 15cbm , 18cbm, 20cbm, 30cbm etc
Material of the lpg tank: Q345R, Q370R, ASME material SA516, SA612
Refill system: lpg pump+flow meter+fiillin pipe +filling gun / lpg dispenser+filling pipe+filling gun
Applicaition:
Fill gas for small lpg skid station or lpg cylinders
Manufacturer: HUBEI MANTEN AUTOMOBILE CO.,LTD
Features:
a.) Fixed-point procurement of raw material manufacturer
b.) Strictly inspection for incoming material
c.) Vigorous production process
d.) Nondestructive examination / 100% X-ray testing
e.) Water pressure and air tightness testing
f.). Asme certification: We are qualified to provide asme standard pressure vessel products, if customer needs.
» II. Specification of HOWO RHD LHD 6,000 liters 1000 gallons 3MT loading capacity
LPG Gas Dispenser Trucks LPG Bobtail Truck Price
| TECHNICAL SPECIFICATION | ||||||
| Items | Descriptions | Specifications and Types | ||||
| General | Truck Name | LPG bobtail truck | ||||
| Drive Type | 4x2 | |||||
| Gross Vehicle Weight(kg) | 11000 | |||||
| Curb Weight (kg) | 7495 | |||||
| Overall Dimensions(mm) | 5900x2045x2600 | |||||
| Engine | Engine model | YN4102QBZL | ||||
| Fuel Type | Diesel | |||||
| Power | 116HP | |||||
| Emission Standard | Euro III | |||||
| Displacement(ml) | 3760 | |||||
| Engine Type | 4 cylinder in line,water cooling, charged inter-cooling | |||||
| Chassis | Cab | Flat roof , single row , air condition optional | ||||
| Chassis Brand | SINOTRUK | |||||
| Tire | 7.00R16 Radial with one spare tyre | |||||
| Wheelbase (mm) | 3360 | |||||
| Front axle | 2400kgs | |||||
| Rear axles | 4200kgs | |||||
| Gear Box | WLY6T46: 6 speed forward with 1 reverse, manual | |||||
| Steering Wheel | Left hand drive | |||||
| Tank | Filling Medium | LPG(Propane) | ||||
| Tank Volume(L) | 5,000 | |||||
| Cylinder Design Thickness(mm) | 8.53 | |||||
| Head Design Thickness(mm) | 8.51 | |||||
| Tank Material | Q345R high tension steel | |||||
| Density of Medium(kg/m3) | 420(50°) | |||||
| Design Pressure(Mpa) | 1.61 | |||||
| Hydrostatic Test Pressure(Mpa) | 2.66 | |||||
| Equipment | Gas pump, LPG weight scales, gas gun,pressure gauge, thermometer ,discharge valve, Safety Valve, level gauge, Emergency Shut-off Valve, Tool Boxes, Anti-static Grounding Tape.Fire Extinguisher | |||||
» III. Product Detailes

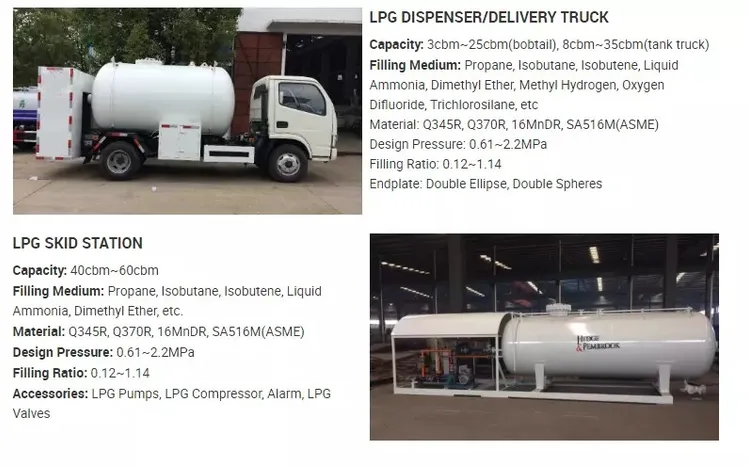

» IV. LPG SERIES
» V. Packaging & Shipping
- Thick wax polished on products before shipping to protect.
- Use container, RORO/bulk ship or others as your requirement.
- We provide transportation insurance to guarantee the new and great condition of products for customers.
» VI. ABOUT US
HUBEI MANTEN AUTOMOBILE CO.,LTD is an authorized special truck manufacturer which has many years
in design ,product ,sales and service in special trucks like as boom truck , fire truck, manlift truck, tank truck , garbage truck,
tipper truck , wrecker truck , refrigerated truck and etc. Main info as below:
(1) More than 500 workers, large and advanced production;
(2) 25 professional engineers, can offer the best and cheapest design;
(3) Build strict QC team to guarantee the quality;
(4) 1 year or 30,000km warranty which comes first.
(5) One set of spare parts of chassis provided which will help you save money on maintenance.
(6) Provide technical support and after serive for life.
(7) Professional sales team which will help you to choose suitable truck.
Welcome to contact with us for more info. We will offer you the best truck as we can .
