HOT3201
24 Hours Online
1 Year
Z
ISO9000, CCC, CE
Euro 3
150-250hp
15tons
Diesel
Manual
4x2
New
Isuzu (HOWO, Dongfeng, etc)
32m
MANTEN
Bulk Ship or Roro
8000X2100X3250mm
China
8705909990
Product Description

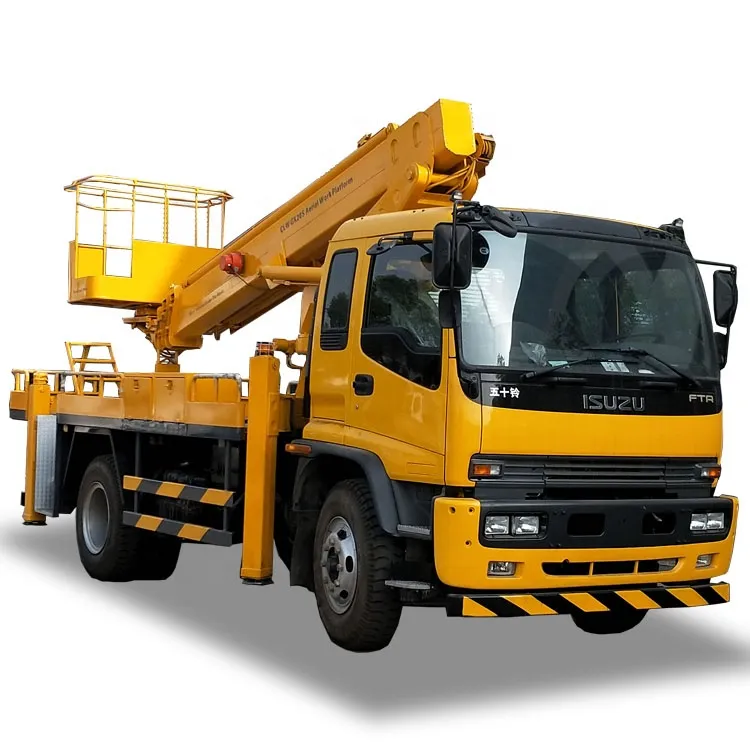

ISUZU 32M Telescopic Boom Cherry Picker
I. Product Description
II. Product Specs
| I-suzu 32M Telescopic Boom Cherry Picker | |
| MAIN DESCRIPTION | |
| Overall Dimensions | 9700X2100X3250mm |
| Wheelbase | 5000 mm |
| CHASSIS | |
| Chassis Brand | I-suzu |
| Engine | 4HK1-TC50, 205hp |
| Gear Box | MLD, 6F+1R |
| Tires | 10.00R20, 6 pieces + 1 spare |
| Parameters for high altitude operation platform | |
| Max working height | 32m |
| Max working radius | 15.6m |
| Max working radium while in the max working height | 5.5m |
| Max loading weight of the basket in the top | 200kg |
| Landing gear | Type: H shape |
| Quantity : 4 pieces | |
| Max outrigger transversal span : 5370 mm | |
| Max Longitudinal span: 4975 mm | |
| Operation system | Rotary platform and lifting basket can operate; |
| Operate type: manual or hydraulic | |
| Lifting arm | 6 telescopic arms |
| slewer device | 360 degree continuous turning |
III. Factory Show
IV. Related Products
V. Company Information
