MT6634
7*24 Hours Online After Sales Service
1 Year
ISO9000, CCC
Euro III/IV/V/VI
25ton
Manual
Diesel
18, 000L-20, 000L
336HP-371HP
New
6mm Thickness Carbon Steel
Weilong/Moro/Jurop Brand
High Quality PVC Suction Hose
Vacuum Pump Drive From Engine Though Pto
Yunnei Brand
11.00-20,, with One Spare Tyre
Within 30 Days
One Year
MANTIN
Nude RO-RO, Bulk Vessel, , 40hq, 20FT, 40FT
18m3-20m3 Vacuum Truck
China
8705909990
Product Description
Product Description:
HUBEI MANTEN AUTOMOBILE CO.,LTD
I. Description of China Manufacturer 20,000L 25cbm Sewage Tank Trailer for Liquid Waste
(1)Remarks:
1.Vacuum sewage suction truck also called sewage suction truck,vacuum truck ,sewage tank truck,vacuum suction truck ,vacuum suction tanker ,vacuum waste collection truck ,sewage suction truck,sewage vacuum truck ,waste vacuum truck ,sewer truck ,cesspit emptier ,gully emptier,etc.
2.Sewage suction truck is a sanitation vehicle, that collects and transfers sludge, septic and sewage with liquid substances such as feces, mud, crude oil, especially the sewage slurry, silt, stones, brick, blocks and other bulk objects, to avoids secondary pollution. It's functioning self-suction and discharge, faster working speed and larger vacuum, that widely used in sewer, cesspit and gully.
3.Vacuum tank capacity ranges from 3,000 Liters to 20,000 liters .
(2)Features:
a.Cylinder vacuum tank can be lifted hydraulically to 40-45 degree.Rear door can be opened and closed hydraulically.
b.Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps,super powerful,highly efficient.
c.Pump can be operated by a hydraulic motor or by an auxiliary engine.
d.Overfill system with music horn is equipped ,preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
e.Nice shape ,rational structure,durable and long service life.

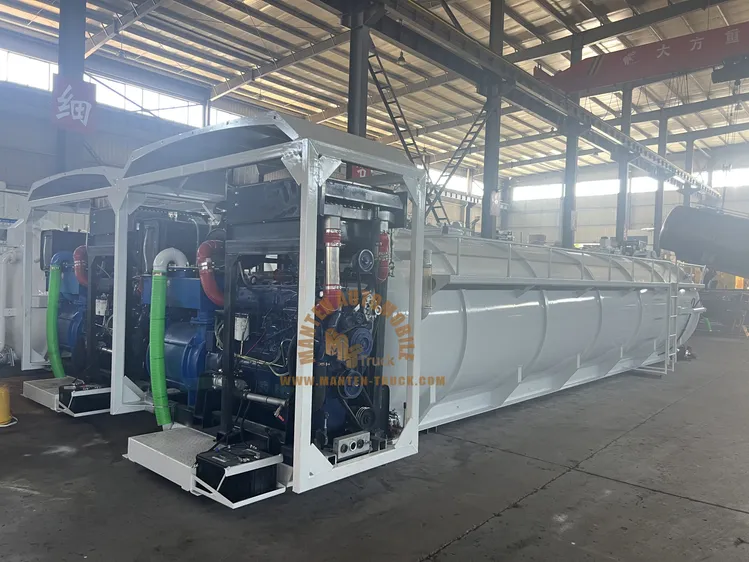

Pictures Of China Manufacturer 20,000L 25cbm Sewage Tank Trailer for Liquid Waste
II. Technical of Factory Price China Manufacturer 20,000L 25cbm Sewage Tank Trailer for Liquid Waste :
| Vacuum Tanker (20,000Litres) | ||
| General | Vehicle Brand | VELDLION |
| Chassis Brand | shacman | |
| Overal lDimension | 10100*2500*3850mm | |
| GWW/Kerb Weight | 25,000kg/11,870kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | with air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | engine | |
| Power | 336Ps(247KW) | |
| Displacement | 9726ml | |
| Emission Standard | Eur II | |
| Chassis | Drive Type | 6X4, left hand or right hand drive |
| Transmission | 10-speedfront,1reverse | |
| Wheelbase/No.of axle | 4600+1350mm/3 | |
| Tyre Specification | 11.00-20 | |
| Tyre Number | 10 tyres and 1 spare tyre | |
| Max Speed | 90km/h | |
| Paint | Metallic paint | |
| Super structure | Tank Capacity | 18,000Litres(about 4,700 gallons) |
| Tank Material | Carbon steel | |
| Suction Head | 7m | |
| Vacuum Pump | Highly efficient,vacuum rate93%, quick suction and discharge,suction 6m. | |
| Hose | High quality,wire strengthened hose | |
| Rear door can be hydraulic opened for complete discharge of solid stuff. | ||
| All standard accessories:inlet,discharge,antifll valve. | ||
| Optional | Tank material could be carbon steel,stainless steel. Vacuum pump could be imported brand. | |
Drawing Of Sewage Suction Truck/ Vacuum Truck:
Open the rear door:
Unloading the sewage:
Open the rear door:Unloading the sewage:III.VACUUM TRUCK/ SEWAGE SUCTION TRUCK WORKMANSHOP
IV. MORE CHOICE OF VACUUM Truck/ SEWAGE SUCTION TRUCK FOR YOUR REFERENCE.
RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.
CONTAINER: The truck is put into the container. This model is used for small model trucks
V. ABOUT US
HUBEI MANTEN AUTOMOBILE CO.,LTD is an authorized special truck manufacturer which has many years in design ,product ,sales and
service in special trucks like as boom truck , fire truck, manlift truck, tank truck , garbage truck, tipper truck , wrecker truck , refrigerated truck and etc.
(1) More than 500 workers, large and advanced production;
(2) 25 professional engineers, can offer the best and cheapest design;
(3) Build strict QC team to guarantee the quality;
(4) 1 year or 30,000km warranty which comes first.
(5) One set of spare parts of chassis provided which will help you save money on maintenance.
(6) Provide technical support and after serive for life.
(7) Professional sales team which will help you to choose suitable truck.
VI. SHIPPING:RORO/BULK VESSEL/CONTAINER
