FUYA telescopic platform trucks are available of 6m-8m, 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.
Funtions:
---- I-SUZU chassis ensures perfect driving performance;
----I-SUZU engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;
---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.
» I. Quick details of Popular Japan Brand 10m 12M Working Platform Truck Folding High Attitude Operation Truck
Similar Key Words: Aerial working platform (truck mounted), aerial telescopic platform, articulated telescopic extension boom, articulated platform,
articulated basket platform ,cherry picker truck
| Bucket Lift Truck I-SUZU (8-14M) | ||
| General | Vehicle Brand | FUYA |
| Chassis Brand | I-SUZU | |
| Overall Dimension | 7640*2000*3150mm | |
| GVW/Kerb Weight | 6,800kg/15,275kg | |
| Cab | Cab Capacity | 2+3 persons allowed |
| Air Conditioner | air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | I-SUZU engine,4JB1CN | |
| Power | 98Ps(70KW) | |
| Displacement | 5193ml | |
| Emission Standard | EuroIV | |
| Chassis | Drive Type | 4X2,left hand drive |
| Transmission | I-SUZU gearbox,no overhaul within 500,000km | |
| Wheelbase/No.of axle | 3360mm/2 | |
| Tyre Specification | 7.00-16 | |
| Tyre Number | 6tyres and 1 sparetyre | |
| Max Speed | 105km/h | |
| Paint | Metallicpaint | |
| Superstructure | Working Cage | 200kg capacity,anti-slipfloor |
| Working Height | ≤14M | |
| Slewing | 360°continuous rotation with base turntable | |
| Control | Control both on the ground and in the cage | |
| Emergency electrical / manual pumpis equipped to operate the equipment in case of engine failure. | ||
| Emergency stop switches at base and operator'scage. | ||
| Optional | Hoist hook with cables can be equipped for the function of a crane. | |
» III.DESCRIPTION OF AERIAL WORKING TRUCK
» IV. WORKING SCENE
» V. SHIPPING:RORO/BULK VESSEL/CONTAINER
RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.
CONTAINER: The truck is put into the container. This model is used for small model trucks

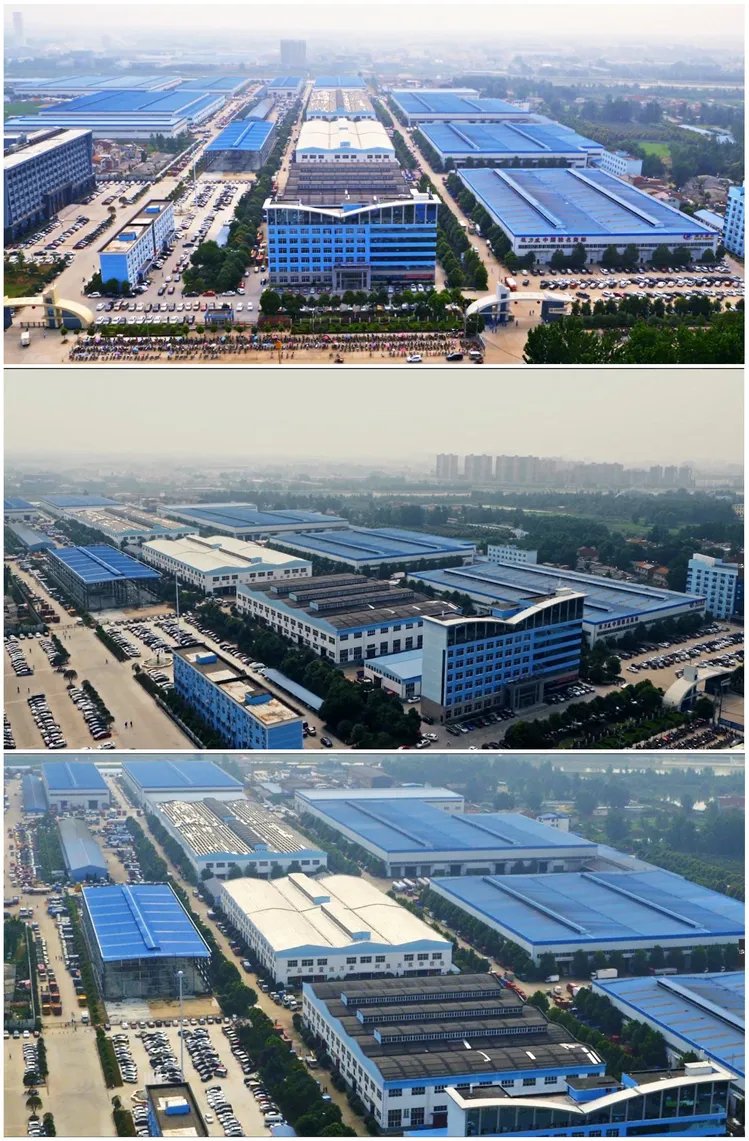

HUBEI FUYA VEHICLE CO.,LTD is an authorized special truck manufacturer which has many years in design ,product ,sales and
service in special trucks like as boom truck , fire truck, manlift truck, tank truck , garbage truck, tipper truck , wrecker truck , refrigerated truck and etc.
Main info as below:
- Established from 2004.
- 12 independents workshops.
- 1000 sets of equipment, 25 assemble lines.
- 300 senior engineers and technicians. About 8000 workers.
- 800kinds of LPG, trucks and semi-trailers.
- 20 years wholesale experience
- Turnover 250 million and Export 20million annually
- Turnover 2 billion trucks and semi-trailers annually.
- LPG/Truck Sold to 90 countries
- Cooperates with DONGFENG,SINOTRUK,I-SUZU,FOTON,FAW,BEIBEN etc.
OUR MAIN PRODUCT
» VII. FAQ
Why choose us?
Experience
More than 15 years experience of production,sales,research and development in the field of special trucks.
Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.
Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.
Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,faw,hino,camc,north-benz,ect.
Production supply capacity
Company scale
More than 8000 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order confirmed.And for the stock, we can delivery it immediately.
