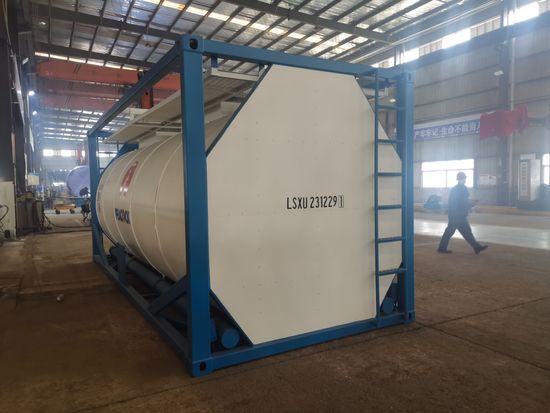

Factory Price 17500litres Hydrochloric Acid Sulphuric Acid Chemical Tank Container, with Liner
| Model | 20ft T14 tank container |
| Medium | Hydrochloric acid UN1789 |
| volume | 17.5 |
| External Dimension | 6058*2438*2591 |
| Rated mass (Kg) | 36000 |
| Overall mass (Kg) | 5600 |
| Working pressure(Mpa) | atmospheric pressure |
| Design pressure(Mpa) | 0.4 |
| Test pressure (Mpa) | 0.6 |
| Design temperature range | -40~ +50 ºC |
| Tank material | Q235B |
| Nominal thickness of shell mm | 6 |
| Nominal thickness of head mm | 8 |
| Lining anti-corrosion | LLDPE7042 16mm |
| Insulation material | 50mm glass fibre wool + 1.0 cold plate outer skin insulation + waterproof hoop tape |
| walkway | Aluminium alloy crocodile non-slip walkway |
| Loading and unloading type | Top loading and unloading |
| Attachment Configuration | Top protection box with cover: one DN500 steel-lined plastic blind manhole, one coated safety valve with tandem PTFE rupture disc and pressure gauge, one DN50 gas-phase stainless-steel fluorine-lined ball valve, one DN80 liquid-phase stainless-steel fluorine-lined ball valve (with siphon tube and liquid gathering nest inside the tank), one DN80 spare port. |
| Other | Simple ladder, etc. |
| Surface Finishes | Acrylic acid and alkali resistant matt paint, total paint thickness 120um, tank white RAL9016, frame blue RAL5015.Stick logo on request. Spray designated LOGO |
| Design / Manufacturing Standards | NB/T47064-2017 "Liquid Dangerous Goods Tank Container". |
1. who are we?
We are based in Henan, China, start from 2015,sell to Africa(50.00%),Southeast Asia(30.00%),South America(15.00%),North America(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Tank Container, Container Trailer, Tank Semi Trailer
4. why should you buy from us not from other suppliers?
International Market: Jushixin is a export-oriented company, most of our products are designed for worldwide use. Till now, we have exported more than 650 semi trailers and trucks to more 25 countries . QA /QC: Jushixin has established sound QA /QC system
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
