CLW5056KTM
Sweep and Suck Type
ISO9000, CCC, CE
Manual
Euro 3, Euro 4, Euro 5
Diesel
2-7t
Stainless Steel
Cold Water Cleaning
New
5 Forwards & 1 Reverse
Stainless Steel
2m3, 4m3, 5m3, 6m3, 8m3
2.2m
96%
80 R/Min
42000m2/H
Customized
1 Year
30 Days
CLW
Container, RO-RO, Bulk
5250*1995*2180mm
Suizhou, China
87059099
Product Description

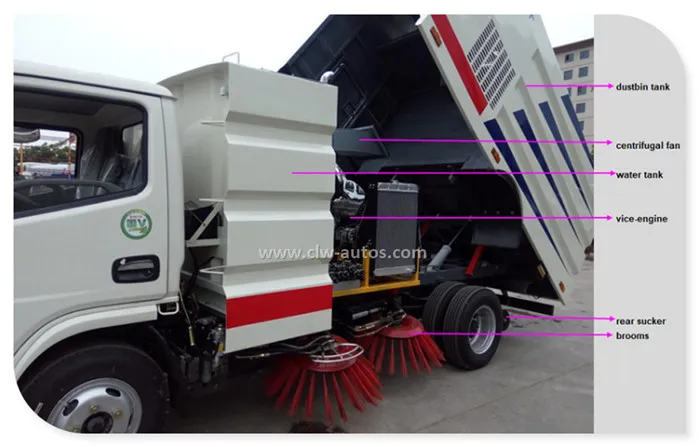

Forland Small 3m3 Street Sweeping Machine / Vacuum Road Sweeper Truck
Advantage:
1. The garbage bin is made of stainless steel with a filter plate inside, which can effectively prevent light objects such as leaves from blocking the air outlet and dust from being discharged.
2. Anti-corrosion, anti-rust and anti-virus treatment inside the water tank.
3. The cleaning structure of "Center 4 brush + rear suction cup", the front sweeping disk has automatic obstacle avoidance function, and the left and right sweeping brushes can be controlled separately.
4. According to the user's needs, it can be equipped with pre-shooting, post-sprinkling, spraying, self-cleaning reel, operation monitoring system, auxiliary suction device and snow shovel.
Optional function:
ChengLi Special Automobile Corporation Limited, The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Bulk Order:
Packaging & Shipping:
1.By cargo bulk shipment or ro-ro shipment .
2.By Flat Rack Container.
Advantage:
1. The garbage bin is made of stainless steel with a filter plate inside, which can effectively prevent light objects such as leaves from blocking the air outlet and dust from being discharged.
2. Anti-corrosion, anti-rust and anti-virus treatment inside the water tank.
3. The cleaning structure of "Center 4 brush + rear suction cup", the front sweeping disk has automatic obstacle avoidance function, and the left and right sweeping brushes can be controlled separately.
4. According to the user's needs, it can be equipped with pre-shooting, post-sprinkling, spraying, self-cleaning reel, operation monitoring system, auxiliary suction device and snow shovel.
Parameter:
| Road Sweeper Truck | ||
| General | Vehicle Brand | CLW |
| Chassis Brand | Forland | |
| Overall Dimension | 5250×1995×2180mm | |
| Kerb Weight | 2,800kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Air conditioner is optional | |
| Engine | Fuel Type | Diesel |
| Engine Brand | China | |
| Power | 75 KW | |
| Displacement | 3856 ml | |
| Emission Standard | Euro III/IV/V | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | 5-speed front, 1 reverse | |
| Wheelbase/No. of axle | 2600 mm / 2 | |
| Tyre Specification | 7.00-16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Water Tank | Stainless Steel |
| Dustbin Capacity | 2 CBM | |
| Dustbin Material | Stainless Steel | |
| Water Tank Capacity | 1,000 Litres | |
| Sweeping Capacity | 42,000 m2/h | |
| Sweeping Speed | 3-15 km/h | |
| Max Sweeping Width | 2200-2700mm | |
| Brooms | 2 sets at each side, at diameter 900 mm | |
| Auxiliary Engine | 77 HP (57 KW), super powerful | |
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual... | ||
| Optional | ** Backup alarm can be equipped. ** Camera can be equipped. ** Air blower can be of stainless steel. | |
Optional function:
ChengLi Special Automobile Corporation Limited, The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
- Certificate: ASM, ISO, BV, SGS, CCC etc.
- 12 independents workshops.
- 1000 sets of equipment, 25 assemble lines.
- 300 senior engineers and technicians. About 8000 workers.
- 800kinds of LPG, trucks and semi-trailers.
- 20 years wholesale experience
- Turnover 250 million and Export 20million annually
- Turnover 2 billion trucks and semi-trailers annually.
- LPG/Truck Sold to 90 countries
- Cooperates DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC
Bulk Order:
Packaging & Shipping:
1.By cargo bulk shipment or ro-ro shipment .
2.By Flat Rack Container.
