8104hdd
1 Year Warranty
1 Year Warranty
4.3"
Driving Data Recording, Accident Recording and Analyzing, Video Storing, Self-checking, Identity Recognition, Data Communication
140°
5 Million
64G
HD
Image Recorder
2-way
High Definition
Ate
ate
Box
50
China
8525802990
Product Description

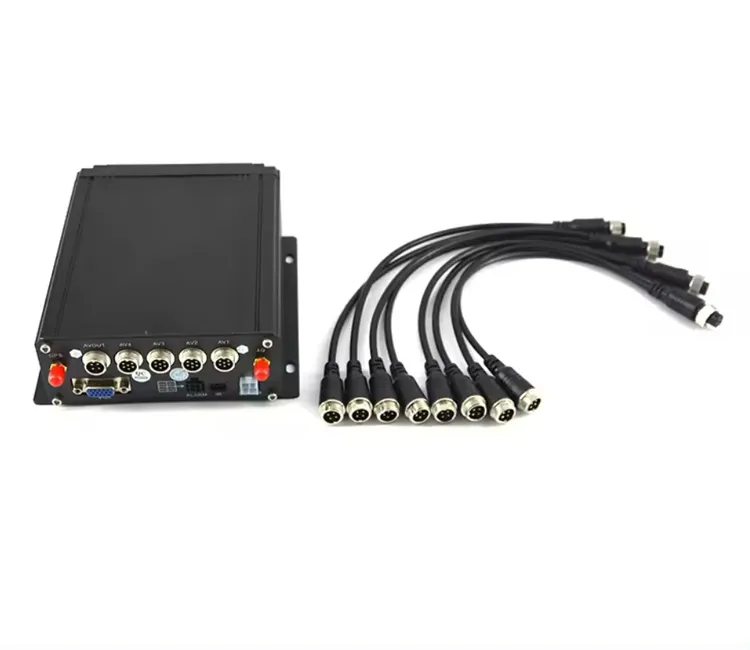

Bus truck taxi 4CH 8CH 1080P MDVR with Max 2TB HDD storage 4G mobile DVR 3G vehicle tracking system 8104hdd
Place of Origin
Fujian, China
Brand Name
ATE
Model Number
8104hdd
Video input
4CH 71080P AHD video/standard definition analog input
Resolution
Support 1080P/D1/HD1//CIF optional
OPERATION SYSTEM
Embedded Linux
WAN
3G/4G,WCDMA, CDMA2000,TDD-LTE, FDD-LTE
WiFi
WIFI transmission,compatible with GPRS, EDGE
Compression
H.264 main profile
Storage
Max 2TB HDD
Work temperature
-20°C to 70°C
COM PORT
1-CH RS232 OR1-CH RS485 for optional
DIMENSION
142mm(L)*146mm(W)*42m(H)
Packaging and delivery
Packaging Details
1 set including the bracket and cables in a box; 8~10 pcs in a master carton.
Port
XIAMEN
Selling Units:
Single item
Single package size:
25X16X10 cm
Single gross weight:
2.000 kg
Supply Ability
Supply Ability
5000 Piece/Pieces per Month
Show less
Lead time
| Quantity (pieces) | 1 - 100 | > 100 |
| Lead time (days) | 15 | To be negotiated |
Technical Specification
Item | Technical Specification | |
System | Language | Chinese, English, Other (customizable) |
Operation System | Linux | |
Network | WAN | 4G,WCDMA, CDMA2000,TDD-LTE, FDD-LTE |
Wi-Fi | WIFI transmission,compatible with GPRS, EDGE | |
Video | Video Input | 4 channels, 1080P/960P/720P AHD video input, aviation interface, 1.0Vp-p, 75Ω |
Video Resolution | Support 960P/720P/D1/HD1//CIF optional | |
Video Output | 1 channel | |
Video file | FAT32 exclusive file system | |
Video Compression | H.264 main profile | |
Video Mode | Default automatic recording, support ignition recording, manual recording, alarm recording, etc. | |
Audio | Audio Input | 4channels |
Audio Output | 1 channel,aviation head interface,Output level: 1V-2V | |
Audio Compression | G.726 compression format, rate 8KB/s | |
Storage | HDD | Max 2TB HDD |
Upgrade | SD card upgrade locally, OTA remote automatic upgrade | |
File | H.264 General video format,FAT32 exclusive file system | |
Power Supply | Power Input | DC +9V ~ +36V |
Power Output | ||
Comsuption | Normal working state <14W, standby state <0.5W | |
Environment | Working Temperature | -20°C ~ +70°C |
I/O | COM Port | 1-CH RS232 OR1-CH RS485 for optional |
Others | Dimension | 140mm(L)*128mm(W)*53.6mm(H) |
Net Weight | 1.35 kg | |
Certificate | CCC, CE | |
