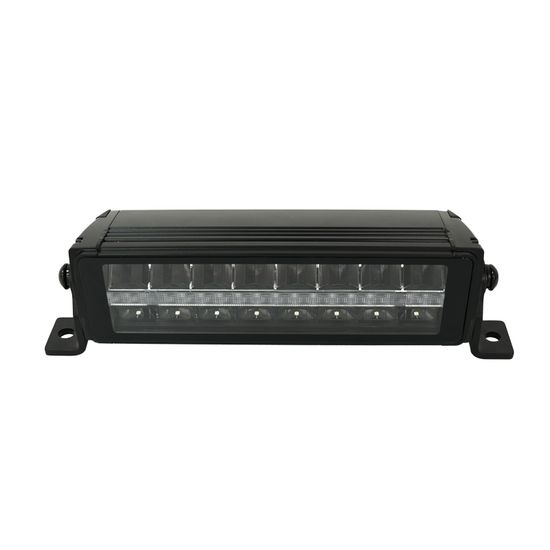

Our GT-BD10 series double row bezel-less led light bars with DRL adopt 5W each Osram P8 LED chips. High-power LED chips and reflector cup produce an incredibly bright and efficient light output. Choose from a smooth white or intense amber DRL. The new frame less lens, without any screws on the front cover, from edge to edge, the light bar has unlimited potential. E-mark R10 and R149, IP67 certificate approved.

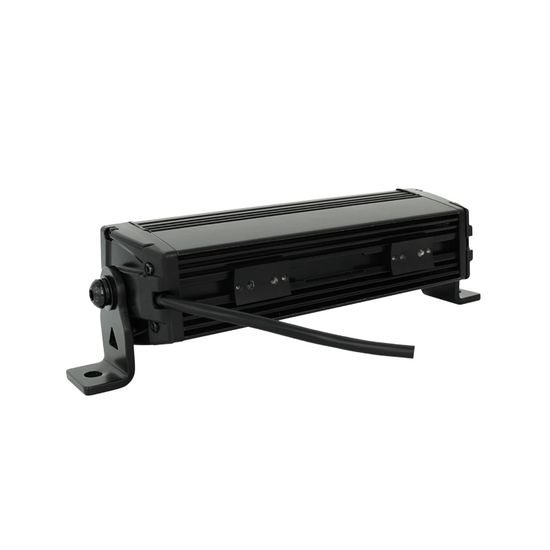

Durable 6063 die-cast aluminum housing with oversized heat sink dissipates heat faster, greatly prolong the lifespan of light over 50,000 hours. 304# Stainless steel side and bottom mounting brackets both are available, easy and convenient mounting ways let user enjoy a great Off road lighting experience.

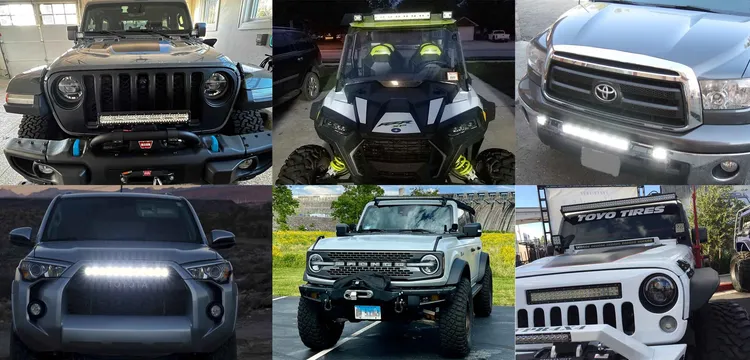

Operating voltage range between 9V-32V. Fit for Truck, Off Road, 4x4, SUV, UTV, ATV, Tractor, Boat, Marine, Farming, Pickup, Golf, van Camper etc.
| Model | Size(mm) | Size(inch) | Watt | AMP Draw | Leds | Theoretical Lumen | Cable Length | |
| GT-BD10-16L | 244.8 | 9.64 | 80W | 6.67A@12V, 3.33A@24V | 5W*16Pcs Osram | 7120Lm | 600mm | |
| GT-BD10-24L | 347.1 | 13.67 | 120W | 10.00A@12V, 5.00A@24V | 5W*24Pcs Osram | 10680Lm | 600mm | |
| GT-BD10-40L | 551.7 | 21.72 | 200W | 16.67A@12V, 8.33A@24V | 5W*40Pcs Osram | 17800Lm | 800mm | |
| GT-BD10-56L | 756.2 | 29.77 | 280W | 23.33A@12V, 11.67A@24V | 5W*56Pcs Osram | 24920Lm | 800mm | |
| GT-BD10-80L | 1062.2 | 41.82 | 400W | 33.33A@12V, 16.67A@24V | 5W*80Pcs Osram | 35600Lm | 800mm | |
| GT-BD10-96L | 1267.8 | 49.91 | 480W | 40.0A@12V, 20.0A@24V | 5W*96Pcs Osram | 42720Lm | 800mm | |
| Model | A(Inch) | B(Inch) | C(Inch) | D(Inch) | E(Inch) | F(Inch) | Leds(Pcs) | Theoretical Power(Watt) | Theoretical Lumen(Lm) |
| GT-BD10-16L | 9.64 | 1.99 | 11.13 | 2.70 | 2.83 | 3.41 | 16 | 80 | 7120 |
| GT-BD10-24L | 13.67 | 1.99 | 15.16 | 2.70 | 2.83 | 3.41 | 24 | 120 | 10680 |
| GT-BD10-40L | 21.72 | 1.99 | 23.22 | 2.70 | 2.83 | 3.41 | 40 | 200 | 17800 |
| GT-BD10-56L | 29.77 | 1.99 | 31.27 | 2.70 | 2.83 | 3.41 | 56 | 280 | 24920 |
| GT-BD10-80L | 41.82 | 1.99 | 43.35 | 2.70 | 2.83 | 3.41 | 80 | 400 | 35600 |
| GT-BD10-96L | 49.91 | 1.99 | 51.41 | 2.70 | 2.83 | 3.41 | 96 | 480 | 42720 |
1. Off road vehicles: 4×4, ATVs, SUV, UTV, truck, trailer, Fork lift, heavy-duty trucks, trains, boat, and tanks.
2. Specialized vehicles: Fire engine, police cars, rescue vehicle, communication vehicle,military command vehicle etc.
3. Other usage: Beach lights, Mining lighting, Caravan lighting, Construction lighting, Garden &exterior lighting, Agricultural machinery lamps, Hunting, camping & outdoor lighting.
Established: 2011
Business model: Manufacturer
Professional Staff: 100+
5 years experience Staff: 65%
Factory Area: 5000 square meters
Production line: 15
OEM projects: 100 cases
Key Products: Led light bar, led work light, led auto lamp, led headlights, led fog lamp mounting brackets, wiring harness, led agricultural lights, beacon, led warning light.
Certification: ISO9001, CE, RoHs, E-mark, CISPR, DOT, SAE, UL, IP67, IP68, IP69K, LVC, WEEE
Production Capacity: Led work light 12,000 SETS/Week, Led light bar 3500 SETS/Week.
Main Markets: Australia /Western Europe / North America/ South America/Southeast Asia/ Africa/ Mid East/ Eastern Asia
Business model: Manufacturer (Specialized in designing and producing premium Led light bar, led work light, mounting clamps/brackets and wiring harness/kits.)
Main Markets: Australia /Western Europe / North America/ South America/Southeast Asia/ Africa/ Mid East/ Eastern Asia
Why choose Ginto?
1.Have a group of experienced optic, structure and graphic engineers;
2.Provide high resolution product pictures/videos, professional lux chart, product specific drawing etc
3.Waterproof Test, EMC Test, Drop Test, Aging TEST, Vibration Test, Salt spraying test etc.
4.CE, RoHS, ECE, E-mark(R10, R23, R112), IP67, IP68, UL, WEEE certification, or any other certification that will help increase customer's sales etc;
1. What are your payment terms?
T/T, Paypal, Western Union are all available.
2. What are your shipping terms?
Small sample orders: By express courier (DHL, UPS, TNT, Fedex)
Bulk orders: By air / By sea
3. Do you offer free samples?
Normally, we need to charge customer sample fee. If their subsequent orders can reach to a certain quantity, we will return them the sample fee.
4. What customized services do you offer?
We can supply customized sticker, usage manual, color box, customized cartons, logo laser/pad printing etc...
5. Delivery Time?
3-5 working days for sample, 15-30days for bulk order.
6. What is your warranty?
Defective rate of Ginto led light is less than 0.5%, please don't worry in case you encounter product problem. Contact us with clear photos or video, we will send new lights in your next order after evaluation.
7.What to prepare before placing an order?
Please send us the model name, beam pattern and quantity, detailed shipping address and post code, preferred shipping way and payment way.
High quality is not only a marketing slogan, it rooted from our every details to our products.
Contact us for a quote now!
