Huahe Brand 3 Ton Diesel Engine Hydraulic Forklift with Side Shift

Huahe Brand 3 Ton Diesel Engine Hydraulic Forklift with side shift

Product description
Whole machine performance
The technology of load sensing and double pump combined hydraulic system is adopted, which has high operation efficiency and low energy consumption.
The special electronic control technology for forklift truck developed jointly with the engine manufacturer making the power of the forklift truck have the best performance.
The 9 inch air filter with safety filter element and electronic pressure alarm are used to ensure the safety and reliability of the engine on the basis of guaranteeing the air intake.
The split radiator has better heat dissipation effect and reliable heat balance of the whole machine.
Standard vacuum booster brake system, using advanced vacuum booster structure on automobile, can effectively prevent dust from entering the brake master pump, mature and reliable;

Ergonomics
With a wide field hoisting system and a wide-angle rearview mirror, the driver has a good field of vision.
The steering wheel twin thread adjusting mechanism with patent technology is easy to operate.
CAN bus instrument with LCD screen is equipped. The driver can know the state of the engine in real time through LCD screen.
Optimized hoods locking mechanism is adopted to make the hoods open flexibly and reliably.

Safety and reliability
The end of driving axle adopts half-shaft sealing technology, which ensures reliable gear oil seal and low cost of after-sale maintenance.
With integrated modular electrical box, the protection level can reach IP56. The electrical system has good security and maintenance convenience.
With double lip sealing gasket, the fuel tank is sealed reliably.
Using high quality power and equipped with engine electronic control technology, it can protect the engine in many directions and ensure the safe operation of the engine.
The safety mechanism of the whole machine is high, such as the locking fuel filling cover and the self-locking hood gas spring.

Easy maintenance
The gearbox oil filter and hydraulic oil return filter adopt external structure, which makes maintenance convenient and fast.
The hood has a large opening angle, which provides a more spacious working space for inspection and maintenance.
K series 5-7 ton diesel balanced forklift trucks are widely used in factories, warehouses, stations, wharfs, ports, etc. for loading, unloading and handling of packaged goods. After equipped with other working accessories, they can also be used for loading and unloading bulk and non-packaged goods.

Technical parameter


Generals	Model		Unit	HH30Z
	Power type			Diesel
	Rated capacity		Kg	3000
	Load center		mm	500
Dimensions	Lift height		mm	3000
	Free lift height		mm	142
	Fork size (L× W× T)		mm	1070× 125× 45
	Mast inclination F/R		Deg	6° /12°
	Front overhang		mm	497
	Overall Dimensions	Length to face of fork	mm	2680
		Overall width	mm	1225
		Mast lowered height	mm	2095
		Overhead guard height	mm	2120
	Turning radius		mm	2460
	Min. right angle aisle width		mm	2105
Performance	Travel speed	Unload I/II	Km/h	9/20
		Full load I/II	Km/h	8.8/19.5
	Lift speed		mm/s	400
	Max. grade ability		%	20
	Max. drawbar pull		Kn	13.5
	Self weight		Kg	4900
Wheels & Tires	Tires	Front		28x9-15-12PR
		Rear		6.50-10-10PR
	Tread	Front Q	mm	1000
		Rear S	mm	970
	Wheelbase		mm	1700
	Min. ground clearance (unload/full load)	Mast	mm	152/110
		Frame	mm	166/160
Drive units & Control	Battery		V/Ah	12/105
	Engine	Model		XINCHAI 490BPG
		Rated output	Kw/rpm	37/2650
		Rated torque	N. m/rpm	148/1800
		Displacement	cc	2540
	Transmission	Type		Hydraulic
		Shift Fwd/Rwd		1/1 Power shift
	Operating pressure		Mpa	17.5

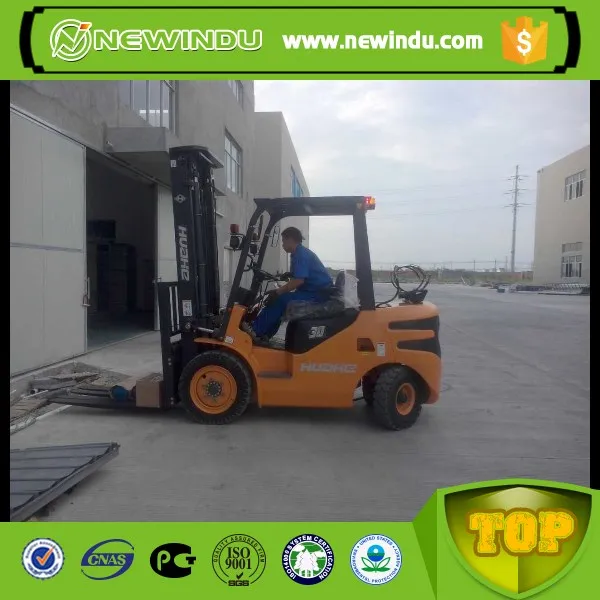

Product iamge
