Our Main Products Heavy Trucks,Electric vehicles and Construction Machinery. include Howo tractor trucks, dump trucks, trailer truck,Fire trucks, water tank trucks, concrete mixer trucks, special trucks,truck parts and Motor grader,wheel loader, roller loader. we can supply these for our clients with good quality and competitive price.

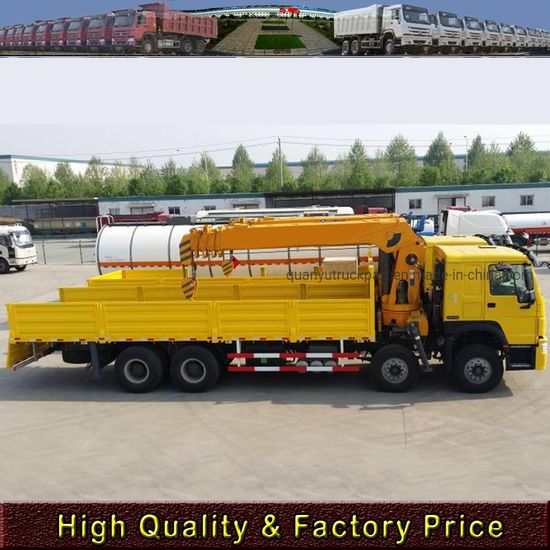

Howo Truck-Mounted Crane 12T
Max lifting capacity:12000kg
Max lifting capacity:30T.M
Rotation angle:360°
Max extension length:13000mm
Max lifting height:15000mm
Crane truck, full name of truck-mounted hoisting truck, is a kind of equipment that realizes the lifting, turning and hoisting of goods through hydraulic lifting and telescopic system. It is usually assembled on trucks. It is generally composed of a truck chassis, a cargo compartment, a power take-off, and a crane. The truck chassis can be selected from 4*2, 6*4 and 8*4,The Crane Type have TELESCOPIC BOOM CRANE(STRAIGHT ARM CRANE) & KNUCKLE BOOM CRANE(FOLDING ARM CRANE) and The crane weight can divided into 2 tons, 3.5 tons, 5 tons, 6.5 tons, 8 tons, 10 tons, 12 tons, 16 tons, 20 tons.
This crane features a compact structural design, lighter deadweight, a greater load ratio, and overall lines that are more optimized, reasonable, and aesthetically pleasing. With the adoption of a four-link structure, it is more energy-saving, cost-effective, and has a larger lifting capacity. The external folding arm can be raised upwards (negative elevation angle), allowing the boom to access lower working spaces. The unique floating three-point bridge structure design effectively reduces the additional stress borne by the vehicle during travel.
| ITEM | UNITS | Parameters |
| Max lifting capacity | kg | 12000 |
| Max lifting capacity | T.M | 30 |
| Recommend power | kw | 30 |
| Max oil flow | L/min | 63 |
| Max pressure | Mpa | 26 |
| Oil Tank Capacity | L | 160 |
| Crane weight | kg | 4200 |
| Installation space | mm | 1300 |
| Rotation angle | ° | 360 |
| Max extension length | mm | 13000 |
| Max lifting height | mm | 15000 |
| Max elevation | ° | 75 |
| The manufacturer reserves the right of technical alteration /change for better improvement without prior notice | ||
SINOTRUK is located in Jinan city and was founed in 1956.It once manufactured china's first heavy duty truck. Our company belong to SINOTRUK sales department and we have specialized in sinotruk trucks and spare parts for many years.The famous brand of sinotruk are HOWO series,HOWO A7 series,HOHAN series.We can supply tractor truck,dump truck,cargo truck,concrete mixer truck,fire tanker truck,water truck,fuel tank truck,bulk cement truck,sewage suction truck and also different types of semi trailers.
annual output of 180,000 vehicles and 200,000 engines capacity.
We have not only the certificate and license of truck export and also strict quality management, fast and convenient channel of
goods delivery, strict examination in quality and quantity of products, professional packing, professional and reliable loading
goods, on-time delivery and competitive prices. If you want to buy these products, please contact us.
We sincerely hope to cooperate with you to expand market in your country!
HOWO Light Truck With Crane has passed strict inspection from assembly to delivery. The crane with technical
performance is one of the most popular crane transportation combination in the world, it can be in: 7-12 meters
radius range of low-altitude lifting and rapid displacement.
Main Products Catalog
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck
12. Semi Trailer
Roll on roll off (RORO) ship
It's the specialized ship to transport cars and trucks, which has power wheel, it's the best way of truck transportation.
Bulk carrier ship
It's the specialized ship to transport grain, coal, ore, salt, cement ,etc, dry and bulk goods, can also used to transport trucks,price is cheap, but the truck always be put on the deck, sea water will damage the truck painting.
Container ship
It's well-known shipping way, and also the highest cost among these three ways. Few sea port only container ship can arrive, so sometimes, we have to use container ship.
Q1. What's your MOQ?
A1. One unit trailer or truck.
Q2. What is your terms of payment?
A2. T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of shipment?
A3. Generally, we ship our truck by ro-ro ship , bulk cargo vessel, container etc. spare parts are packed in wooden cases, shipped by containers
Q4. What is your terms of delivery?
A4. EXW, FOB, CFR, CIF
Q5. How about your delivery time?
A5. It will take 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6. Do you test all your goods before delivery?
A6. Yes, we have 100% test before delivery tructions. When the question occurs, please call us freely.
1. Over 20 years export experience of truck,trailer and spare parts
2. Specialization: Accurately meet your requirement, Experienced engineers serving for you
3. Good quality: Original
4. Great variety and wide range: your "One-shop purchasing service"
5. SINOTRUK Brand & Related Brand
