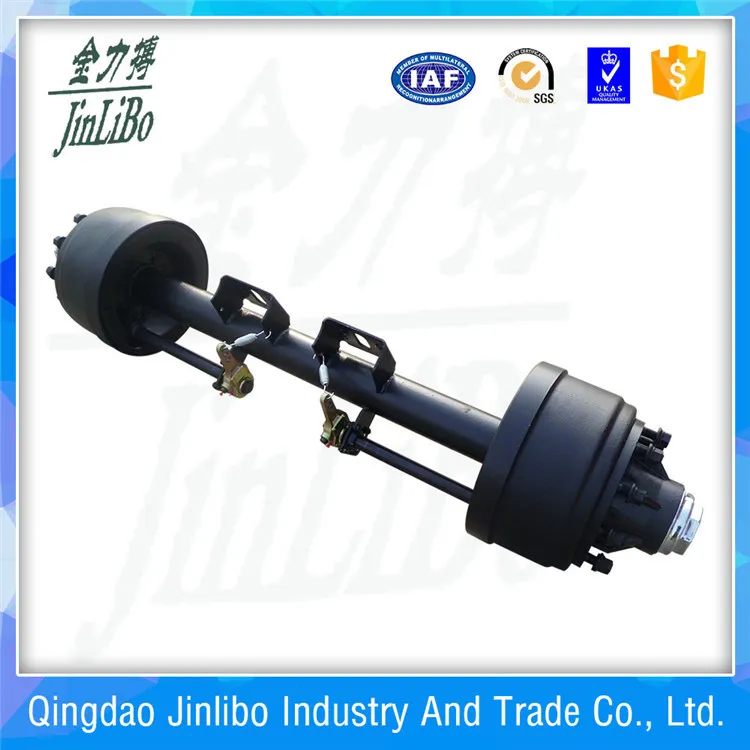

| American Outboarding Axle Specifications 13T | |||||||||||
| AXLE TYPE | BRAKE SIZE | WHEEL FIXING | NO.XSIZE OF WHEEL STUD (DIM A) | WHEEL REG.DIA.(DIM B) | DIM D | WHEEL RIM SIZE | BEAM SIZE | AXLE CAPACITY | SPRING SEAT INSTALLATION | TRACK LENGTH(DIM C) | WEIGHT |
| KMMR1318B | 420*180 | ISO | 10*M22*335 | 281 | 725 | 20´´ | round127x19 | 13T | ≤450 | 1840mm | 378KG |
| square 150 | |||||||||||
| KMMR1320B | 420*200 | ISO | 10*M22*335 | 281 | 735 | 20´´ | round127x19 | 13T | ≤450 | 1840mm | 390KG |
| square 150 | |||||||||||
| KMMR1318C | 420*180 | ISO | 10*M22*285.75 | 221 | 725 | 20´´ | round127x19 | 13T | ≤450 | 1840mm | 378KG |
| square 150 | |||||||||||
| KMMR1320C | 420*200 | ISO | 10*M22*285.75 | 221 | 735 | 20´´ | round127x19 | 13T | ≤450 | 1840mm | 390KG |
| square 150 | |||||||||||
| KMMR1318A | 420*180 | JAP | 10*M22*285.76 | 221 | 725 | 20´´ | round127x19 | 13T | ≤450 | 1840mm | 378KG |
| square 150 | |||||||||||
| KMMR1622E | 420*220 | ISO | 10*M20*335 | 281 | 738 | 20´´ | round127x19 | 16T | ≤450 | 1850mm | 440KG |
| square 150 | |||||||||||
Introduction of enterprise:
Qingdao Jinlibo Trade Co.,Ltd.has introduced sophisticated equipment from overseas to develop and manufacture semi-trailer axles and related parts.Holding ISO9001:2000 certification for our management system,we faithfully follow the stipulations of this standard so as to guarantee high product quality.
Following the principle of " Customers first", our products are guaranteed to be dependable quality and be offered with full after-sales service. Located in Qingdao City, Shandong Province, close to the one of China's main deepwater ports,we can thereby expedite the delivery of all orders. Welcoming interested companies around the world to cooperate with us,we are looking forward to receiving your detailed inquiries.
Characteristics:
1.Special heat-treat,low-alloy steel axle beam,it has the vitues of good synthetic performance,strong load ability and lower self weight.
2.High quality alloy solid inserted spindle,through wholy heat treatment,provide superior fatigue capability.
3.High performance premium non-asbestos brake linings,estend serbice life.
4.Easy for ABS installation.
5.Camshaft,matching with special seals,can ensure no entry of the grease into the brake drum,more safety.
6.New tight fit hub cap habe O rings,high property for sealing.
7.Grease lubricant is supplied by Mobil that lengthens the time of free maintenance.
8.Full range of stud fixing such as ISO,BSF and JAP,it can meet the requirements of various wheel rims.
Scope of our business
1.axles (German type axle,English type axle,American type axle,Spoke axle,ZM axle,Agriculture axle,Half axle,Axle without brake)
2.Suspension (Bogie suspension,One point suspension,Rigid suspension,Spoke suspension,Machinery suspension)
3.Landing gear
4.Fifth wheel (2'' 3.5'')
5.King pin (2'' 3.5'')
6.Semi trailer
7.Other axles and related parts (Low bed axle,hub,rims,spring,drum...)
Q1:Are you a factory?
A:Yes,we are a factory,but not just a factory,as we have sales team,our own offices,and they
all can help the buyers and cooperative partners to decide which products are the best choices
for them,and all your requirements and inquires will be replyed in time.
Q2:What's your Delivery Time?
A:In general, the delivery time is 15-20 days.We will make the delivery as soon as possible with
the guaranted quality.
Q3:What is the convenient way to pay?
A:L/C , T/T,Unionpay,DP are accepted,and if you have a better idea , please be free sharing with us.
Q4:Which type of shipping would be better?
A:Generally,in consideration of the cheap and safe superiorities of sea transportation,we advice
to make delivery by sea.What's more, we respect your views of other transportation as well.
