ME042GS200
Universal, Industrial, Household Appliances, Car, Power Tools
Adjust Speed
Excited
Control
Closed Type
8
Brushless
ISO9001, Ce
Exmek
Exmek
CTN & Pallet
CE, RoHS
China
8501310000
Product Description
General information
- 8 poles with three phases
- 6 slots design for automatic winding
- Insulation class B, higher insulation class on request
- Bonded neo magnet
- Integrated driver available
Specifications
| Specification | ME042GS200 |
| Supply voltage(reference) | 24V DC |
| Rated continuous torque | 0.126nm |
| Rated speed at cont torque | 4000rpm |
| Rated continuous stall current | 3.84A |
| Rated continuous output power | 53W |
| Rated peak torque | 0.38nm |
| Rated peak current | 11.2A |
| Torque constant | 0.0359nm/A |
| KE(voltage constant) | 3.76V/krpm |
| Terminal resistance | 0.72Ω |
| Inductance | 1.2mH |
| Insulation class | B |
| Rotor inertia | 4.80E-06kg.m² |
| Weight | 0.45kg |
| L | 61mm |
Mechanical

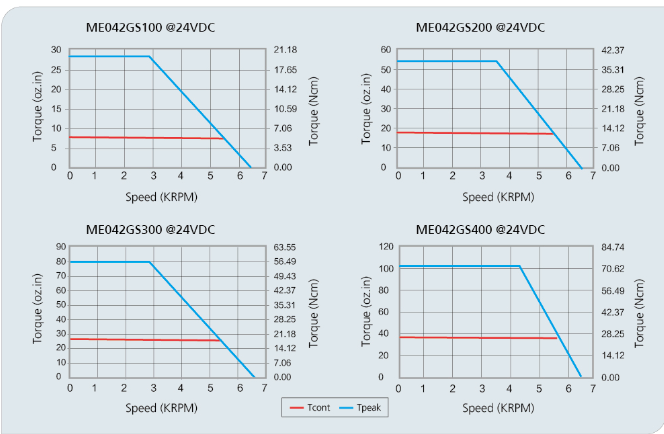

Characteristic diagram
