Hangcha X Series Empty Container Handler 9ton
A new generation high-quality professional product, which is newly developed on the basis of Hangcha's X series platforms and years of industry experience and extensively adopts advanced technologies, is mainly used in the loading, handling and stacking operations of empty 20ft and 40ft ISO containers.
Single handling container spreader
Vertical Twistlocks.
Vertical Twistlocks.
Suitable for:
/ 20' or 40' ISO containers of 8' (2.44 m) width.
/ Approx. 2.45-2.50 m wide "pallet-wide" 20' or 40' containers, with ISO-like 'chamfered' corner castings.
/ With speed limitation for laden/unladen
Not suitable for:
Not suitable for:
/Approx. 2.45 - 2.60 m wide "CPC" containers (Cellular
/Pallet-wide Containers) with non-ISO corner castings.
/Approx. 2.45 - 2.50 m wide "pallet-wide" 20' or 40' containers, with ISO-like 'chamfered' corner castings
| Distinguishing mark | 1.1 | Manufacturer | HANGCHA | ||
| 1.2 | Manufacturer's type designation | H90EC-7-XRW83 | H90EC-8-XRW83 | ||
| 1.3 | Drive: electric (battery or mains), diesel, petrol, fuel gas | Diesel | Diesel | ||
| 1.4 | Operator type: hand, pedestrian, standing, seated, order-picker | Seated | Seated | ||
| 1.5 | Rated capacity/rated load | Q (kg) | 9000 | 9000 | |

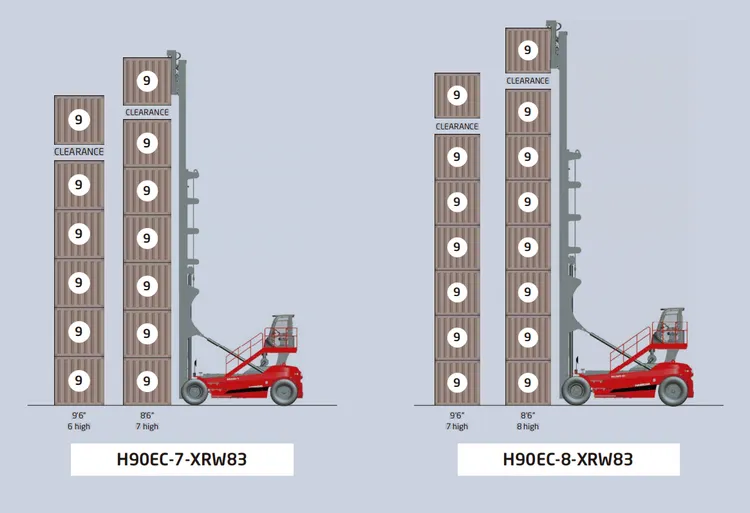

| 1.6 | Stacking height, no. of containers (8'6" / 9'6") | 7/6 | 8/7 | ||
| 1.7 | Load centre distance | c (mm) | 1220 | 1220 | |
| 1.8 | Load distance, centre of drive axle to fork | x (mm) | 1340 | 1340 | |
| 1.9 | Wheelbase | y (mm) | 4550 | 4550 | |
| Weight | 2.1 | Service Weight | kg | 39800 | 41000 |
| Tyres, chassis | 3.1 | Tyres: solid rubber, superelastic, pneumatic, polyurethane | Pneumatic | Pneumatic | |
| 3.2 | Tyre size, front | 14.00-24-28PR | 14.00-24-28PR | ||
| 3.3 | Tyre size, rear | 14.00-24-28PR | 14.00-24-28PR | ||
| 3.5 | Wheels, number front / rear (x = driven wheels) | 4/2 | 4/2 | ||
| 3.6 | Tread, front | b10 (mm) | 3280 | 3280 | |
| 3.7 | Tread, rear | b11 (mm) | 2300 | 2300 | |
| Dimensions | 4.1 | Tilt of mast/fork carriage forward/backward | α/β(°) | 3/4 | 3/4 |
| 4.2 | Height, mast lowered | h1 (mm) | 10715 | 12015 | |
| 4.3 | Lift height, min in twist locks | h2 (mm) | 2200 | 2200 | |
| 4.4 | Lift height, max in twist locks | h3 (mm) | 18670 | 21270 | |
| 4.5 | Height, mast extended | h4 (mm) | 19100 | 21700 | |
| 4.7 | Height of overhead cabin | h6 (mm) | 4600 | 4600 | |
| 4.8 | Seat height relating to SIP | h7 (mm) | 3500 | 3500 | |
| 4.12 | Coupling height | h10 (mm) | 740 | 740 | |
| 4.19 | Overall length | l1 (mm) | 7000 | 7000 | |
| 4.20 | Length to face of forks | l2 (mm) | 6850 | 6850 | |
| 4.21 | Overall width | b1/b2(mm) | 4120/2700 | 4120/2700 | |
| 4.22 | Spreader sideshift | mm | ±600 | ±600 | |
| 4.24 | Spreader width, retracted | b3 (mm) | 6100 | 6100 | |
| 4.25 | Spreader width, extended | b5 (mm) | 12240 | 12240 | |
| 4.31 | Ground clearance, laden, below mast | m1 (mm) | 290 | 290 | |
| 4.32 | Ground clearance, centre of wheelbase | m2 (mm) | 300 | 300 | |
| 4.34 | Aisle width with(8'6" / 9'6") | Ast (mm) | 10200/14000 | 10200/14000 | |
| 4.35 | Turning radius | Wa (mm) | 6000 | 6000 | |
| 4.36 | Minimum pivoting point distance | b13 (mm) | 2085 | 2085 | |
| Perfor mance data | 5.1 | Travel speed, laden/unladen | km/h | 26/28 | 26/28 |
| 5.2 | Lift speed, laden/unladen | m/s | 0.55/0.62 | 0.55/0.62 | |
| 5.3 | Lowering speed, laden/unladen | m/s | 0.5/0.55 | 0.5/0.55 | |
| 5.5 | Drawbar pull, laden | N | 160000 | 160000 | |
| 5.7 | Gradeability, laden | % | 22 | 22 | |
| 5.10 | Service brake | Wet disc brake | Wet disc brake | ||
| Parking brake | spring applied, hydraulic release multi-disc brake | spring applied, hydraulic release multi-disc brake | |||
| 7.1 | Engine manufacturer/type | Volvo TAD851VE | Volvo TAD851VE | ||
| Emission STD | StageIIIA/Tier3 | StageIIIA/Tier3 | |||
| 7.2 | Engine power | kW | 185 | 185 | |
| 7.3 | Rated speed | r/min | 2200 | 2200 | |
| 7.4 | Number of cylinders/displacement | (-)/(cm3) | 6/7700 | 6/7700 | |
| Combusti on- engine | 7.9 | Vehicle electrical system voltage | V | 24 | 24 |
| 7.10 | Battery voltage/nominal capacity | V/Ah | 2×12/150 | 2×12/150 | |
| Rated torque | N·m/r/min | 1160/1350 | 1160/1350 | ||
| Transmissions Manufacturer | DANA | DANA | |||
| Stage FWD/RVS | 3/3 | 3/3 | |||
| Addition data | 10.1 | Operating pressure for attachments | bar | 250 | 250 |
| 10.2 | Oil volume for attachments | l/min | 288 | 288 | |
| 10.3 | Hydraulic Tank - capacity (drain & refill) | liter | 460 | 460 | |
| 10.4 | Fuel tank capacity | liter | 620 | 620 | |
| 10.7 | Sound pressure level at the driver´s seat | dB (A) | 72 | 72 | |
