WLD-2H
Online and Others
12 Months
Wld
AC 110V/220V, 50Hz
-10ºC~40ºC
2L
125cc
28kHz
0-15000r/Min
100r/Min
0-9900s
1.8kg/Cm²
4.5L/Min
55×45×52cm
25kgs
WLD
Cartoon
Fuel Injector Tester & Cleaner
China
8418991000
Product Description

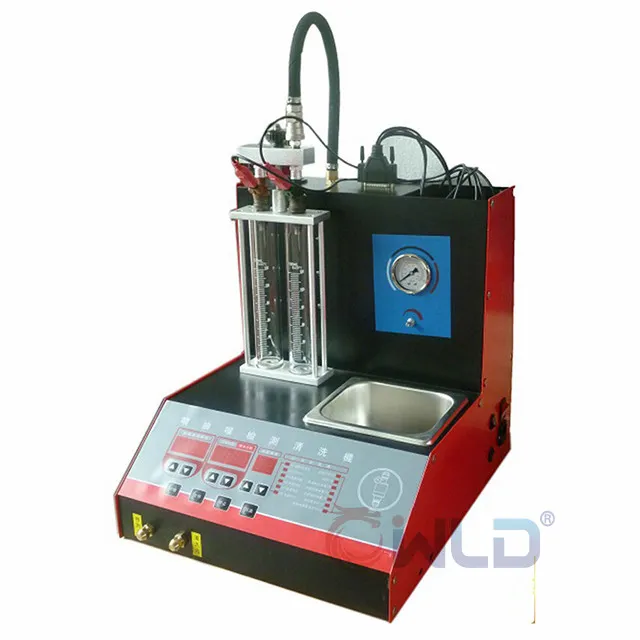

Injector tester. The injector tester consists of a small tank, pump, pressure gauge and handle. There is a separate covered cabin for receiving the sprayed fuel from the nozzle. The injector to be tested is fitted to the injector testing equipment.
Functions:
**Ultrasonic cleaning
**Idling test (1500r/min)
**Medium speed test (9000r/min)
**High speed test (15000r/min)
**Accelerating test
**Shifting speed test
**Leakage testing
**Idling spray value test
**Medium and high speed spray value test
**Reverse flush
**Free dismantle cleaning
**LED display facility
**Built-in 2L ultrasonic cleaning tank
**Easy operating with adjustable heating function
**Automatic oil drain
**Test shortest cycle of fuel injector On and Off
**Test leakage, block, pulverization of fuel injector, spray angles, spraying amount and spraying uniformity
Technical Parameter
Voltage: AC220V/110V 50Hz
Operation Temperature:-10ºC~40ºC
Tank Capacity: 2L
Test Tube Capacity: 125CC
Ultrasonic Frequency: 28KHZ
Rotation Speed: 0~15000r/min
Step: 100r/min
Time Counting Range: 0~9900 sec
Step: 50 sec (adjustable)
Oil Pump Pressure: 1.8kg/cm²---10kg/cm²
FuelFlow: 4.5 L/min
Dimension: carton:55*45*52cm=0.129cbm
Weight: 25kgs
Functions:
**Ultrasonic cleaning
**Idling test (1500r/min)
**Medium speed test (9000r/min)
**High speed test (15000r/min)
**Accelerating test
**Shifting speed test
**Leakage testing
**Idling spray value test
**Medium and high speed spray value test
**Reverse flush
**Free dismantle cleaning
**LED display facility
**Built-in 2L ultrasonic cleaning tank
**Easy operating with adjustable heating function
**Automatic oil drain
**Test shortest cycle of fuel injector On and Off
**Test leakage, block, pulverization of fuel injector, spray angles, spraying amount and spraying uniformity
Technical Parameter
Voltage: AC220V/110V 50Hz
Operation Temperature:-10ºC~40ºC
Tank Capacity: 2L
Test Tube Capacity: 125CC
Ultrasonic Frequency: 28KHZ
Rotation Speed: 0~15000r/min
Step: 100r/min
Time Counting Range: 0~9900 sec
Step: 50 sec (adjustable)
Oil Pump Pressure: 1.8kg/cm²---10kg/cm²
FuelFlow: 4.5 L/min
Dimension: carton:55*45*52cm=0.129cbm
Weight: 25kgs
