CX Small Core Drilling Rig
Shandong, China
Product Description
CX series drilling rigs are equipped with sophisticated hydraulic control system, suitable for medium and deep hole surface core drilling, convenient and flexible operation, high productivity and wide range of applications.zmwm21
The medium shallow hole models are equipped with specially designed top drive powerheads for flexibility and convenience.
The medium and deep hole models are equipped with Christensen chuck powerheads, Funk gearboxes, and advanced technology nitrogen spring grippers for precise control and reliable operation.
The models can be equipped with travelling tracks and wheeled chassis, which are suitable for relocating and transporting in different terrain conditions.
Parameter Of Full Hydraulic Crawler Rotary Mine Diamond Wireline Mining Exploration Borehole Drill Core Drilling Rig
| Technical Parameter | CX600 | CX800 | CX1200 | CX1600 | UX300 | UX600 | UX800 | UX1000 | F300 | F600 | F800 | F1000 | F16-MP |
| Rig type | Fully hydraulic rock core drilling rig | Fully hydraulic pit drilling rig | Fully hydraulic light weight drilling rig | ||||||||||
| Drilling capacity (B/N/H) | 650 / 550 / 300 m | 850 / 650 / 350 m | 1200 / 1000 /680(P300 m) | 1600 / 1250 / 880 (P570 m) | 400 / 300 / 150 m | 600 / 500 / 220 m | 1000 /800 / 520 m | 1200 / 1000 / 620 m | 300 / 220 / 120 m | 600 / 400 /180 m | 800 / 600 /350 m | 1000 / 800 /400 m | 1200 / 1000 /600 m |
| Engine power (Diesel) | 95 KW | 120 KW | 140 KW | 153 KW | 37KW | 55 KW | 75 KW | 90 KW | 1 x 33 KW | 3 x 24KW | 3 x 33 KW | 4 x 33 KW | 4 x 33 KW |
| Feed stroke | 1.8 m | 1.8 m | 3.5 m | 3.5 m | 1.1 m | 1.8 m | 1.8 m | 1.8 m | 1.2/1.8 m | 1.8 m | 1.8 m | 1.8 m | 1.8 m |
| Max. torque | 15 KN | 25 KN | 40 KN | 60 KN | 650 Nm | 1800 Nm | 2000 Nm | 2250 Nm | 300 Nm | 600 Nm | 800 Nm | 1000 Nm | 1600 Nm |
| Max. lifting power | 105 KN | 105 KN | 118 KN | 138 KN | 38 KN | 65 KN | 75 KN | 89 KN | 56 KN | 100 KN | 120 KN | 125 KN | 138 KN |
| Max. Drill Pipe Diameter | 117 mm | 117 mm | 117 mm | 117 mm | 90 mm | 90 mm | 90 mm | 90 mm | 114 mm | 114 mm | 114 mm | 114 mm | 114 mm |
| Length of drill pipe | 1.5 m | 1.5 m | 3 m | 3/6 m | 1.5m | 1.5m / 3 m | 1.5m / 3 m | 1.5m / 3 m | 1.0m /1.5m | 1.5m | 1.5m | 1.5m | 1.5m |
| Weight | 6500 Kg | 7500 Kg | 9000 Kg | 12000 Kg | 1550Kg | 3150Kg | 3350Kg | 3500 Kg | 180 Kg | 160 Kg | 180 Kg | 180 Kg | 180 Kg |
| Forms of transport | Towing/manual labor for carrying | manual labor for carrying/small machinery | |||||||||||

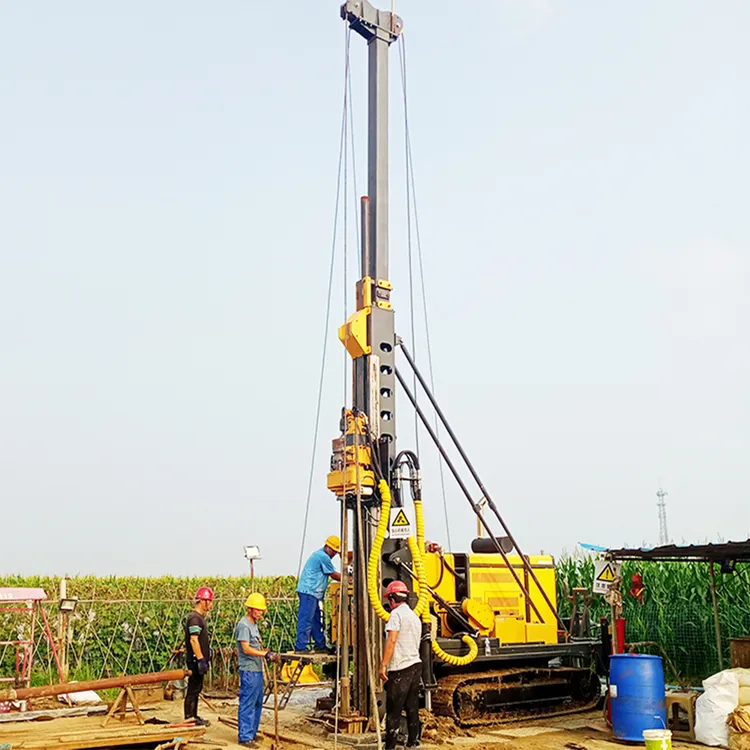

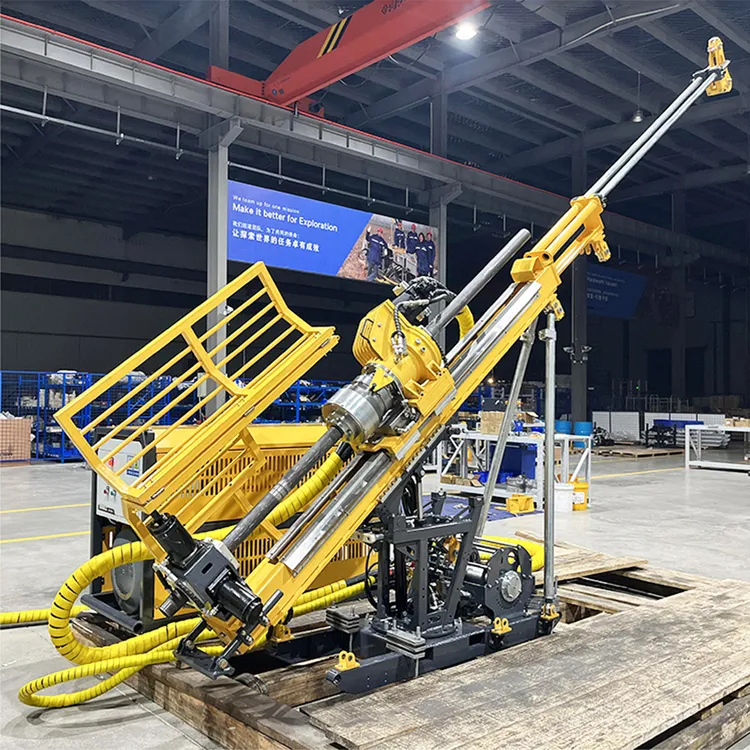

Photo Of Full Hydraulic Crawler Rotary Mine Diamond Wireline Mining Exploration Borehole Drill Core Drilling Rig
