Product Description
The TS501 diagnostic & service tool is specially designed to program vehicles that do not have a TPMS relearn facility in the ECU. It is also able to work with ALL known magnetic and frequency triggered tire sensors for ALL vehicles sold worldwide.

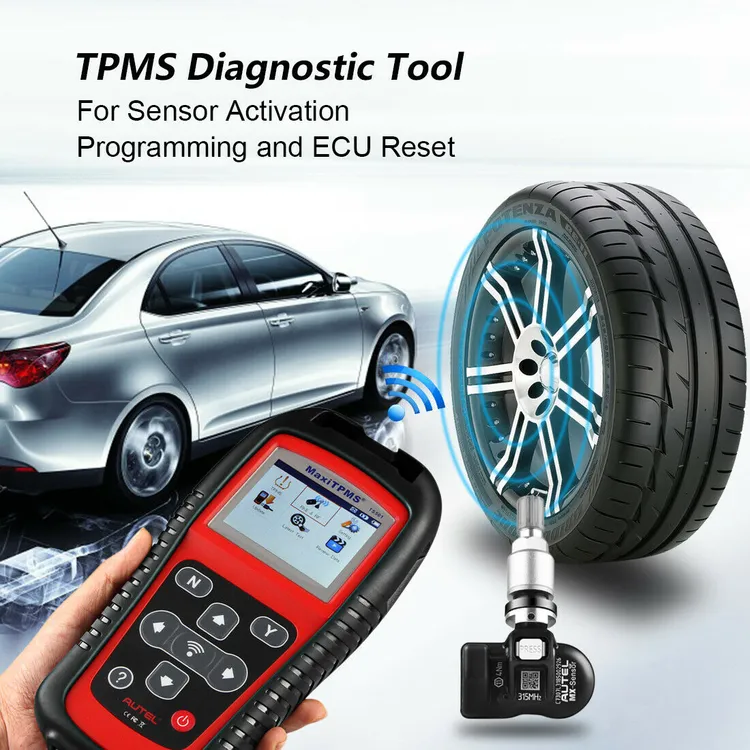

TS501
COMPLETE TPMS DIAGNOSTIC TOOL PACKAGE KIT
The TS501 is capable of wirelessly diagnosing TPMS problems as well as activate any known OEM / Universal TPMS sensors, ID clone or reprogram sensors to the vehicle's ECU, and turn off warning lights.
Top 4 Reasons To Get TS501
1. Pre-selection process offers faster activation and diagnostics
2. Accurate diagnosing results - a tool users can trust
3. Free Update Online Lifetime on Autel Official Website
4. Easy-to-use with intuitive navigation and step-by-step on-screen
Product Features & Functions
Programs vehicle ECU to learn sensor IDs and positions
Activates magnetic, frequency and tire deflation triggered sensors using 125 kHz continuous or
modulated wave signals
Receives 315 MHz, 433.92 MHz and 309MHz signals
Reads sensor ID from vehicle ECU
Reads/clears codes of TPM system and resets malfunction indicator light
Built-in rechargeable Li-ion battery
On-screen code definitions
Simplifies the diagnostic process including four and five wheel
vehicles by showing vehicle graphs
Decodes sensor data and provides visual and audible
responses to confirm sensors are working properly
Interprets data including sensor ID, tire pressure, temperature,
battery status and OE part no.
Modify language steps
Since the original language of the device is English, you can send me the SN on the back of the machine after receiving the scanner (SN is 11 alphanumeric characters)
At-A-Glance TPMS Status Screen
The single screen organization allows you to easily read direct feedback from all 4 sensors, clearly understand the status of all TPMS features,compare sensor and ECU data,then instantly pinpoint system faults to identify the fix.This At-A-Glance view of all sensor information easily shows the location of which sensor battery is low and needs to be replaced soon.
OBD2 Connected TPMS Diagnostics
The TS501 can provide relearn procedures for specific sensors and connect with the OBDII cord to the vehicle's ECU to offer multiple programming options including clone sensor IDs, or auto create ID, or manual write sensor IDs with no sensor re-learn required for sensor positioning.
Instruction
Prints TPMS sensor data via PC
Automatic power-off to preserve battery life
Proper LF signal to prevent being fooled by
other RF signals
Saves up to 16 TPMS records
If a failed sensor is detected, the tool displays
the replacement part number
Vehicle Coverage:
European Vehicle
USA Vehicle
Asia Vehicle
Autel TPMS Function Compare
Package List
TS501 tool
OBDII cable
Molded plastic case
USB cable
Magnet (For early model TPM sensors)
User manual
Battery
