EW glass suction cup
Spare Part for Free
1-Year
4/6/8 Cups as Your Request
7-15 Days
Manual or Electric
EW
Wooden Cases
single cup size 300mm
China
8428909090
Product Description
H-type vacuum glass lifters
| Lifting capacity (kg) | 800,1000,1200,1400 |
| Cup Qty(PCS) | 8,10,12,14 |
| Single Cup Size(mm) | 300 |
| Single Cup Lifting Capacity(kg) | 100 |
| Rotation | 360 degree manual rotate |
| Tilting | 90 degree manual flip |
| Voltage | DC12V |
| Charger | AC220/110 |
| Weight (kg) | 110,120,130,140 |
| Sucker Frame Size(mm) | 2440*1050*3900 |
| Extension Bar Length (mm) | 720 |

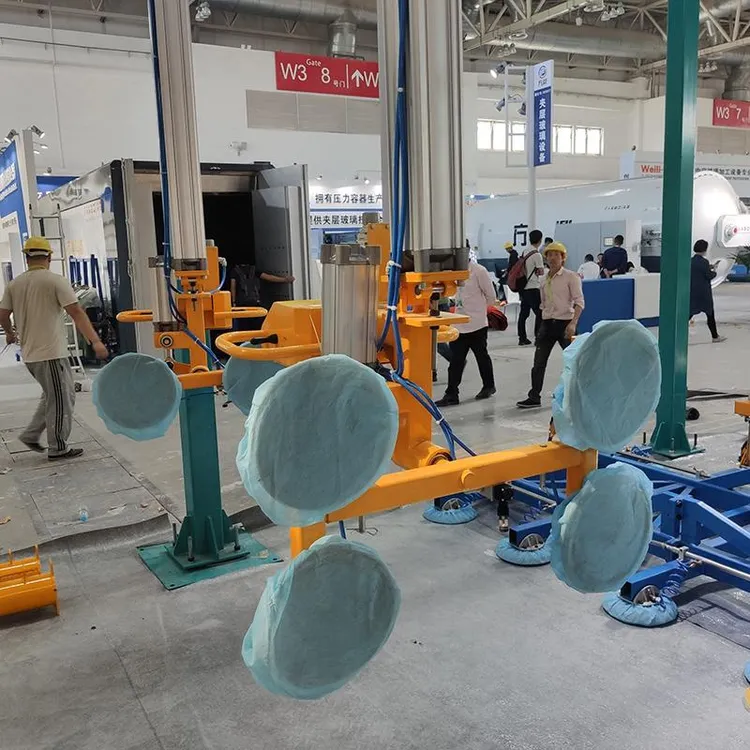

X type vacuum glass lifter
| Model | SSURY400,SSURY600,SSURY800 |
| Lifting capacity (kg) | 400,600,800 |
| Cup Qty | 4,6,8 |
| Single Cup Size(mm) | 300 |
| Single Cup Lifting Capacity(kg) | 100 |
| Rotation | 360 degree manual rotate |
| Tilting | 90degree manual |
| Voltage | DC12 |
| Charger | AC220/110 |
| Weight (kg) | 70,90,100 |
| Sucker Frame Size(mm) | 870*770*200 2370*1030*200 1900*1580*200 |
| Extension Bar Length (mm) | 500 |
| Control System | Integrated Control Cabinet & Wired Remote Control |
Vacuum Lifter for aluminum Sheet/ panel
| Vacuum Lifter for aluminum Sheet/ panel | SSUPYE | ||||||
| Rated Load Capacity(kg) | 200 | 400 | 600 | 800 | 1000 | 1500 | 2000 |
| Pad Size(mm) | 200 | 200 | 200 | 200 | 300 | 300 | 300 |
| Plate Size (mm) | 3000*1500 | ||||||
| Sucker | 6 | 6 | 8 | 8 | 10 | 10 | 12 |
| Power | 380V/DC 12V | ||||||
| Spreader Length (mm) | 2000 | 2000 | 2000 | 2000 | 2000 | 2500 | 2500 |
| Spreader Width (mm) | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
| Pneumatic Vacuum Lifter | RYGDDC | ||
| Capacity (kg) | 300 | 400 | 500 |
| Lifting Cylinder (mm) | SU100*1000 | SU125*1000 | SU160*1000 |
| Rotating Cylinder (mm) | SU80*400 | SU100*400 | SU125*400 |
| Turning Cylinder (mm) | SU80*3300 | SU100*300 | SU125*350 |
| Cup Size (mm) | 250 | 300 | 300 |
| Cup Number | 4 | 4 | 6 |
| Max.Frame Size(mm) | 1150*780 | 1200*820 | 1200*820 |
Glass Lifting Robot | Glass Installation Robot | RYGCPD |
| Rated Load Capacity(kg) | 300 350 400 500 600 |
| Manual Rotating | 360° |
| Lifting Height (mm) | 3500 |
| Manipulation | Walking Type |
| Charger (V/A) | 24/12 24/12 14/15 24/18 24/18 |
| Battery (V/A) | 2*12/80 2*12/90 2*12/100 2*12/120 2*12/120 |
| Drive motor (V/W) | 24/1200 24/1200 24/1200 24/1500 24/1500 |
| Lift Motor (V/W) | 24/2000 24/2000 24/2000 24/2200 24/2200 |
| Overall Width (mm) | 810 |
| Overall Length (mm) | 2660 2660 2660 2800 2800 |
| Driving Wheel Dimension (mm) | 250*80 250*80 250*80 300*100 300*100 |
| Cup Size (mm) | 300 300 300 300 300 |
| Glass Size (mm) | 3660*2440 |
