Features:
For demanding applications, featuring a 4:1 safety factor;
Applicable temperature: -40ºC ~100ºC;
Outside jacket is polyurethane, to provide maximum abrasion resistance;
Both ends of hydraulic hose with NPT3/8 thread;
Exhibits low volumetric expansion under pressure to enhance overall system efficiency;

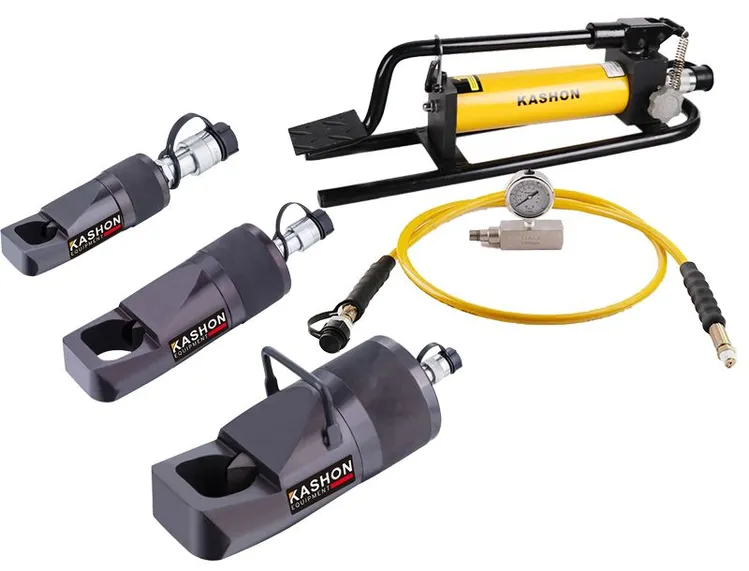

Supporting the use of hydraulic cylinders, hydraulic pullers, hydraulic flange tools, hydraulic torque wrenches, nut splitters and is also suitable for other 700bar pressure hydraulic tools.
Product Show
| Model | Max. Working Pressure (bar) | Length (m) | ID (mm) | End Fitting | Weight (KG) |
| HX-6-2SP-2 | 700 | 1.8 | 6.4 | CH604 | 1.0 |
| HX-6-2SP-3 | 3 | 1.5 | |||
| HX-6-2SP-5 | 5 | 2.5 | |||
| HX-6-2SP-6 | 6 | 3 | |||
| HX-6-2SP-10 | 10 | 5 | |||
| HX-6-2SP-15 | 15 | 7 |
Q1: What's the MOQ?
A1: MOQ is 1 piece.
Q2: How to make payment?
A2: Paypal, Western Union, Moneygram or T/T transfer.
Q3: How long does it take to process orders?
A3: It usually takes 10-14 business days to process most orders for no stock. If stock available, it will only take 2-3 business days.
Q4: What is the packing method?
A4: For small piece, we use carton box; for big piece, we use exporting grade plywood case.
Q5: How to ship?
A5: Sea freight, Air freight or International express (DHL, FEDEX, UPS...) all are available.
Q6: What is the warranty?
A6: 12 months against B/L date.
