CLW5100A8GB
Sweep and Suck Type
ISO9000, CCC, CE
Manual
Euro 4
Diesel
5t
Stainless Steel 304
Cold Water Cleaning
New
3-20 Km/H
60000 Cbm/H
4cbm, Stainless Steel 304
SANYO Brand
1 Set for Each Customer
3.5m
Isuzu 120HP
5cbm, Stainless Steel 304
as Per Customer Requirements
German Imported High Pressure Water Pump
Cummins 140HP
Schneider Brand
CLW
Roll-Roll, Bulk Shipment
7160*2250*2750 (mm)
Suizhou, China
8701909000
Product Description

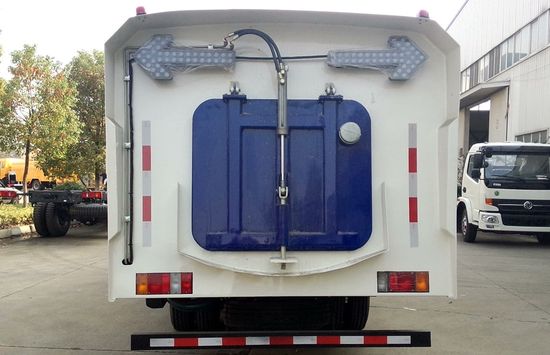

Isuzu 4*2 Road Washing and Sweeper Truck Mobile Cleaning Tanker Vehicle with 4cbm Water and 5cbm Dust vaccum sweeper
Product Description
1. Purpose: Sweeper truck can be widely used in main city road,airport road,residential area road, park,terminal, square, cement factory, power plant and etc.
2. Main parts: Stainless steel dust tank and water tank, Germany hydraulic oil pump and magnetic valve, French Schneider eletronic control switch, auxiliary engine, suction panel, sprinkler system, sweeping brush.
3. Feature: On the basis of one-key control technology, the manual throttle control system of the auxiliary engine is added, which can independently adjust the throttle size according to the road condition, effectively enhancing the cleaning effect and reducing fuel consumption.
Product Specification
| General Technical Parameters | |||||
| Overall Dimension | 7160X2250X2750 (mm) | ||||
| Gross Vehicle Weight | 7300(Kg) | ||||
| Curb Weight | 2110(Kg) | ||||
| Chassis Specification | |||||
| Chassis Brand | ISUZU | ||||
| Drive model | 4*2 | ||||
| Cabin | Single Row, LHD, with air condition. | ||||
| Number of Passengers | 2 | ||||
| Engine | Model | ISUZU 4KH1-TCG4O/120HP, 4-stroke direct injection , 4-cylinder in-line, turbocharged intercooled, with ABS. | |||
| Power | 88KW/120HP | ||||
| Emission standard | EURO 4 | ||||
| Displacement | 2999(ml) | ||||
| Fuel type | Diesel | ||||
| Gearbox | ISUZU MSB, 5Forwards & 1Reverse, manual operation, with power steering. | ||||
| Brake System | Oil break | ||||
| Wheel Base | 3815mm | ||||
| Front/Rear Axle Loading | 2500/4800(Kg) | ||||
| Approach/Departure Angle | 24/14(°) | ||||
| Overhang | Mechanical Suspension, 8/6+5 | ||||
| Tire | 7.00R16 Steel wire tyre, 6pc with 1 spare tire | ||||
| Sweeping Speed | 3-20 km/h | ||||
| Upperstructure Specification | |||||
| Tank | Water Tank | Material | Stainless steel 304 | ||
| Volume | 4(cbm) | ||||
| Dust Tank | Material | Stainless steel 304 | |||
| Volume | 5(cbm) | ||||
| Auxiliary Engine | Model | Cummins | |||
| Power | 140HP/103KW | ||||
| Maximum sweep width | 3.5m | ||||
| Maximum cleaning capacity | 60000m³/h | ||||
| Standard Configuration | 1. Equipped with 1 sweeping brush on each side, and middle suction nozzle; | ||||
| 2. Equipped with Sanyo Motor; | |||||
| 3. Equipped with German imported high pressure water pump(front flush, side sprinkler, middle sprinkler, rear sprayer, water gun, self-cleaning device in dust tank); | |||||
| 4. Equipped with universal high pressure roadside cleaning, and front flush with low pressure pump; | |||||
| 5. Equipped with stainless steel high pressure pipeline, Schneider control switch, and American sensor; | |||||
| 6. Equipped with anti-overflow or low water level alarm device in both water and dust tanks, rear LED arrow lights; | |||||
| 7. Equipped with indoor monitor in reverse and wash state; | |||||
| 8. Equipped with 18 meters high pressure rinsing reel, etc. | |||||
| 9. User's operation manual 1 set. | |||||
| Optional Configuration | Snow shovel, foggy gun, aerial work platform, color is optional, etc. | ||||
