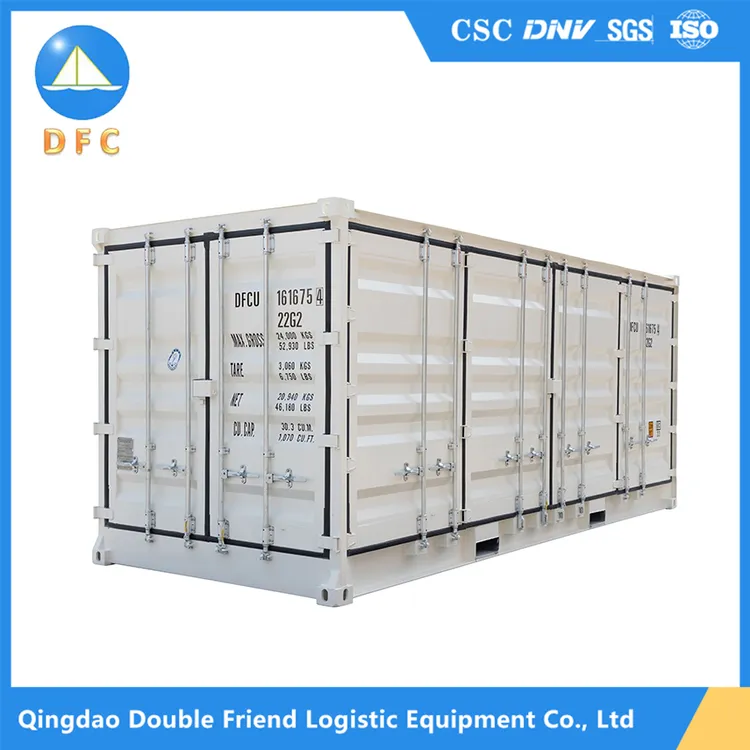

20FT Side Door Container
Customized
Steel Structure
Shipping
ISO9001
20'
>10 Years
<20 Days
>20ft
<25 Years
Permanent After Sales
20 Years
Side Door Container
5898*2288*2254mm
28t
DFC
Nude
6058*2438*2591mm
Qingdao China
Product Description
Standard and certificate:
Containers shall comply with following in their latest editions :
1) ISO/TC-104
| 668 | - | Series 1 freight containers-Classification, external dimensions and ratings |
| 6346 | - | Coding, identification and marking for freight containers |
| 1161 | - | Specification of corner fittings for series 1 freight containers |
| 1496/1 | - | Specification and testing of series 1 freight containers. Part 1 : General cargo containers for general purposes |
| 830 | - | Freight containers-Terminology. |
| 6359 | - | Freight containers-Consolidated data plate |
3) The Customs Convention on the International Transport of Goods(TIR).
4) The International Convention for Safe Containers (CSC).
5) Transportation Cargo Containers and Unit Loads Quarantine Aspects and Procedures by Commonwealth of Australia Department of Health. (TCT)
6) provide certificates from classification society (BV, ABS, GL, CCS, LR, KR).
The specifications of 20' one side full access containers:
1 Dimension
| External Dimensions | Internal Dimensions | |
| Length | 6,058 ( 0, -6 ) mm | 5,898 ( 0, -6 ) mm |
| Width | 2,438 ( 0, -5 ) mm | 2,288 ( 0, -5 ) mm |
| Height | 2,591 ( 0, -5 ) mm | 2,254 ( 0, -5 ) mm |
| Width .................. | 2,280 ( 0,-5 ) | mm |
| Height ................... | 2,140 ( 0,-5 ) | mm |
| Width .................. | 5,700 ( 0,-5 ) | mm |
| Height ................... | 2,140 ( 0,-5 ) | mm |
| Width .................. | 360 | mm |
| Height ................... | 115 | mm |
| Center distance ....... | 2,080 | mm |
30.5 cu.m
6 Rating
| Maximum Gross Weight .............. | 24,000 kg | |
| Maximum Payload ............. | 20,850 kg | |
| Tare Weight ............... | 3,150 kg |
Applications or special features:
1. one end door and one side full access door.
2. can loading cargos from end or side door.
3. for sea, inland, and railway transportation.
3. convenient for loading, lifting, moving.
