XT600
All Life
One Year
CE, ISO 9001:2000
New
DC Motor
<100mm
>200m
Diamond Bit
Mobile Gyrator
QUANHUA
Wooden Box, Wrapped Film
4100mm*1800mm*2400mm
China
8431432000
Product Description

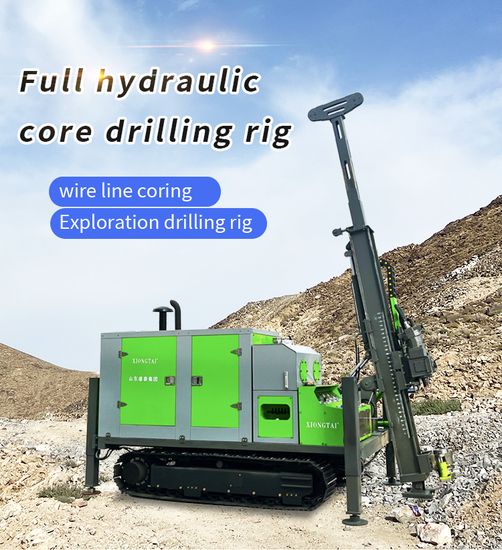

Crawler-type XT-600 fully hydraulic drilling rigs
Product Description:
Wireless remote control walking, hydraulic mast automatic lifting, power head automatic left side moving machine lifting drilling as a major feature of the drilling rig, which mast automatic lifting, power head moving machine for my company utility model patent, greatly easing the difficulty of on-site construction, effectively reducing the number of drilling rig construction, cost savings, the drilling rig were used in the 110KW engine, strong power, high torque, suitable for all kinds of complex stratum of the metal ore mining.
Product Parameters:drilling capacity
Caliber: HTW-NTW-BTW
Maximum depth: 600
hydraulic system
Maximum pressure: 20 (MPA)
Rated flow rate: 250 (L/Min)
Heat dissipation method: air cooling+water cooling
engine
Brand: Yuchai
Rated drilling speed: 2200 (RPM)
Rated power: 110 four cylinders (kW)
Power head
Motor speed: Plunger motor continuously variable speed
Transmission: high, idle, and low three speed transmission
Maximum torque: 1500 (N.M)
Maximum drilling speed: 1300 (RPM)
Drill pipe length: 1500 (MM)
tower
Type: Ground touching integrated tower
Drilling angle: 55-90 (°)
Lifting force: 16 (T)
Feed force: 12 (T)
Winch
Lifting force: 1000 (KG)
Drilling speed: 100-300 (RPM)
Wire rope diameter: 6 (MM)
Rope capacity: 600 (M)
walk
Type: manual+remote control
Walking speed: 3.5 (KM/H)
Single machine climbing angle: 45 (°)
Hydraulic mud pump
Flow rate: 100 (L/min)
Pressure: 4-7 (MPA)
Transportation size: 4300 * 1800 * 2250 (MM)
Total weight: 5200KG
Company Overview:
Shandong Quanhua Machinery Group is a modern large-scale enterprise that integrates scientific research, production, and marketing. The company focuses on the field of green mining. Since its establishment, it has adhered to the concept of "creating conscientious products and developing win-win situations with customers", strives for excellence, and is committed to creating practical, economical, and environmentally friendly drilling equipment for customers. With the continuous development and growth of the group, the company's products have been sold to various parts of the country and multiple countries around the world. Shandong Quanhua Machinery Group welcomes customers to visit and inspect the factory!
Our customers:
With excellent product quality, our company's products are exported to multiple countries and regions such as Malaysia, Russia, Brazil, Vietnam, Africa, and the Middle East, and have undergone strict market tests.
