TQC25
Online Support
1 Year
Adjustable

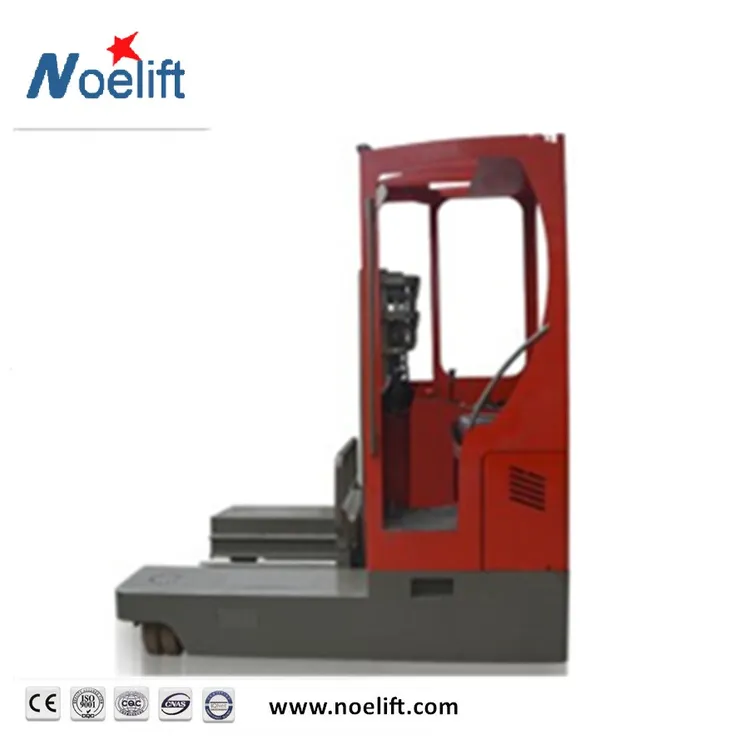

Omnidirectional Reach Truck
AC Motor
1T - 5T
Electric
500mm
6000mm
New
48/600ah
Included
1000mm
PU
Noelift
Export Packing
2080*2920*3010mm
Zhejiang, China
84271090
Product Description
Advantages:
Electric multi-directional forklift, used for long material, such as wood, steel, wird rod, rebar, can meet more than 10m length.
Features:
1.load capacity is 2500kg-4000kg, lift height is 3000mm-7000mm
2.used for long material
3.can move in all directions, saving space.
4.high configuration, good performance.
5.overseas service.
6.one year warranty
Specification:
| Descriptiom | TFC25 | TFC40 | ||
| Features | Rated Load Capacity | Q(kg) | 2500 | 4000 |
| Power | Battery | Battery | ||
| Operate Type | Seated | Seated | ||
| Load Center | C(mm) | 600 | 600 | |
| Front Tread | X(mm) | 302 | 318 | |
| Wheebase | Y(mm) | 1910 | 1800 | |
| Service Weight(Incl. battery) | kg | 6100 | 9100 | |
| Wheels | Wheel typre | PU | PU | |
| Wheel size-load wheel | mm | φ267x76/2 | φ377x110x2 | |
| Wheel size-Drive wheel | mm | φ380x165 | φ380x165 | |
| Wheels number,front/rear (X=drive) | 4/1X | 4/2X | ||
| Tread,drive wheel | b10(mm) | 0 | 1986 | |
| Tread,Load wheel | b11(mm) | 1880 | 1960 | |
| Dimensions | Mast Tilt Angle-Upward/Downward | α/β(°) | 3/5 | 3/5 |
| Height-Overhead Guard | h6(mm) | 2680 | 2680 | |
| Height-seat | h7(mm) | 1275 | 1375 | |
| Height-Leg | h8(mm) | 440 | 510 | |
| Overall Length | L1(mm) | 2400 | 2300 | |
| Overall Width | b1/b2(mm) | 2490 | 2880 | |
| Fork size | l/e/s(mm) | 1200*100*45 | 1200*150*50 | |
| Width of Fork carriage | b3(mm) | 1194 | 2280 | |
| Fork Spread | b5(mm) | 247-1072 | 560-2840 | |
| Width between legs | b4(mm) | 1290 | 1340 | |
| Reach stroke | I4(mm) | 1300 | 1300 | |
| Mast' Ground Clearance | m1(mm) | 80 | 150 | |
| performance | Travel Speed laden/unladen | mm/s | 7.8/9.0 | 7.8/9.0 |
| Lift Speed laden/unladen | mm/s | 110/243 | 170/220 | |
| Max. Gradeability,laden/unladen-Straight | %(tanθ ) | ≤10 | 8/10 | |
| Max. Gradeability,laden/unladen-sideways | %(tanθ ) | ≤5 | 5/10 | |
| Service Brake | Electromagnetic | Electromagnetic | ||
| Drive | Drive Motor | KW | 5.5 | 5.5 |
| Lift motor | KW | 7.5 | 7.5 | |
| Battery-voltage /capacity | V/AH | 48/460 | 48/900 | |
| Battery weight | KG | 724 | 1470 | |
| Steering system | Hydraulic | Hydraulic | ||
| Battery changing way | Side Changing | hoisting | ||
