HTF15/HTF20/HTF25
1 Year After Delivery
12 Months
Not Adjustable
Reach Forklift
AC Motor
1T - 5T
Electric
500mm
3000~5000mm
New
2ton Capacity Electric Reach Forklift
Htf20-45
3000mm-7500mm
AC Motor
DC Motor
2370kgs
HYDER
Sea-Worthy Packing for Exporting
2284X1098X2085MM
China
84271090
Product Description
Factory Supply 1.5t 2ton 2.5t Electric Reach Forklift Lifting 5m, 6m, 7m, 7.5m
Reach Forklift rely on the mast or fork frame to move back and forth to maintain balance. The mast or the fork frame of the reach-type forklift can move forward and backward. The mast-type forklift refers to that the mast drives the fork to move forward during operation, and stretches out of the front wheel to pick up or put down the goods. The fork belt cargo is retracted so that the center of gravity of the cargo is within the support surface. The forward-moving forklift refers to that the shelf drives the fork to move forward outside the front wheels for operation, and the fork frame drives the fork to retract into the support plane when walking.
1.Better passing performance through small aisle,to improve the warehouse' capacity greatly
2.AC bruchless drive motor to reduce the maintenance time and cost.AC drive motor with high effciency,better service life and energy saving,to make the forklift with long-time running based on normal output
3.Disc brake and EPS steering system coordinated with high operating efficiency,to makes the forklift with better performance during heavy working condition
4.Three braking system.They can provide the necessary protection to machine or operator whatever the forklift is
running or not.
5. Buffering technology can reduce the vibration when the mast lifts up to the top or down to the bottom,and make the goods less damaged and operator feel more comfortable.
6.Ergonomic design for the small steering wheel coordinating with the panel can provide a comfortable,safe and high efficiency
environment for operators.
2.AC bruchless drive motor to reduce the maintenance time and cost.AC drive motor with high effciency,better service life and energy saving,to make the forklift with long-time running based on normal output
3.Disc brake and EPS steering system coordinated with high operating efficiency,to makes the forklift with better performance during heavy working condition
4.Three braking system.They can provide the necessary protection to machine or operator whatever the forklift is
running or not.
5. Buffering technology can reduce the vibration when the mast lifts up to the top or down to the bottom,and make the goods less damaged and operator feel more comfortable.
6.Ergonomic design for the small steering wheel coordinating with the panel can provide a comfortable,safe and high efficiency
environment for operators.
| Specification | ||||
| 1 | Manufacturer | - | HYDER | |
| 2 | Operation type | - | Standing posture | |
| 3 | Model | - | HTF15-50 | |
| 4 | Power type | - | Full-Electric | |
| 5 | Capacity | kg | 1500 | |
| 6 | Max lifting height | mm | 5000 | |
| 7 | Load center | mm | 500 | |
| 8 | Wheel type | - | Pu solid tire | |
| 9 | Fork dimensions | mm | 1070X100X35 | |
| 10 | Fork spread | - | 222-650 | |
| 11 | Overall length including fork | mm | 2580 | |
| 12 | Overall width | mm | 1090 | |
| 13 | Height--mast Lowered | mm | 2309 | |
| 14 | Turning radius | Wa(mm) | 1594 | |
| 15 | The height of overhead guards | mm | 2240 | |
| 16 | Min ground clearance | mm | 80 | |
| 17 | Max travel speed | km/h | 7 | |
| 18 | Lifting speed | mm/s | 200 | |
| 19 | Total weight | kg | 2450 | |
| 20 | Driving wheel | mm | Ø343*108 | |
| 21 | front wheel | mm | Ø254*104 | |
| 23 | Battery capacity | V/Ah | 48/300 | |
| 24 | Charger-intelligent | V/A | 48/40 | |
| 25 | Driving motor | kw | 4.5(AC) | |
| 26 | Lifting motor | kw | 7.5(DC) | |
| 27 | Transmission controller type | - | Electric | |
| 31 | Walking adjustable type | - | Holzer type accelerator | |
| 32 | Braking type | - | Electromagnetic | |

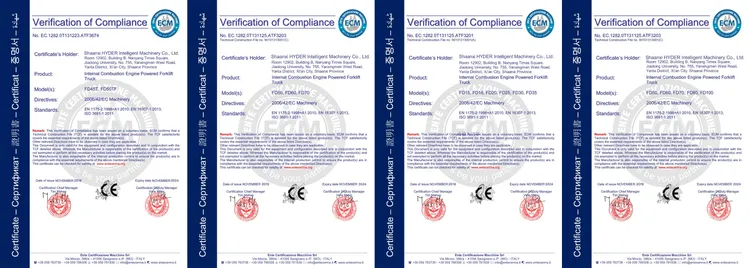

The head office of HYDER Intelligent Machinery in Yanta district, Xi'an city, our engineer team all have more than 17 years working experience in the fields of forklift. Professional international sale and after sales service team can offer you quick response and effective service. HYDER has built long and stable cooperation with many well-known domestic and oversea enterprises and our products have passed the CE, BV, ISO and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 40 countries where the sales network has built.
Shaanxi hyder Intelligent Machinery Co., Ltd. is committed to becoming a high-end intelligent storage and logistics equipment recognized and trusted by the world. We build our national brand with advanced technology, mainly engaged in global warehousing and logistics business.
Our products are Pallet truck series, Stacker series and Electric forklift series. By repeatedly testing in the market and adopting customer feedback, while reducing costs, we are committed to every small function, improving work efficiency, reducing employee operation safety risks, and improving customer use efficiency.
Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer, and we have our own factory and trading company.
Q2: How is Your Price Compare With Other Factories?
A2: We are professional forklift manufacturers with more than 12 years produce and export experience we can sure to provide
you more competitive price than other factories.
Q3: Can you guarantee your products?
A3: Yes, we guarantee your 100% satisfaction on all our products.
Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
Q4: Do you offer custom design?
A4: Custom design is surely available. We have very rich experience in customizing shelves.
Q5: Can you manufacture the forklift as per my requirement?
Yes, these items have other options: lifting height, tires, cabin,lights, fork length, colors,controller, engine, battery, charging voltage.etc
