ZM Pit Drilling Rig-UX1000
Online
Online
CE
New
DC Motor
100-150mm
>200m
Diamond Bit
Mobile Gyrator
Ux1000
1200 / 1000 / 620 M
90 Kw
1.8 M
2250 Nm
89 kN
90 mm
1.5m / 3 M
3500 Kg
zhongmei
Wooden
Rock Core Drilling Rig
China
Product Description

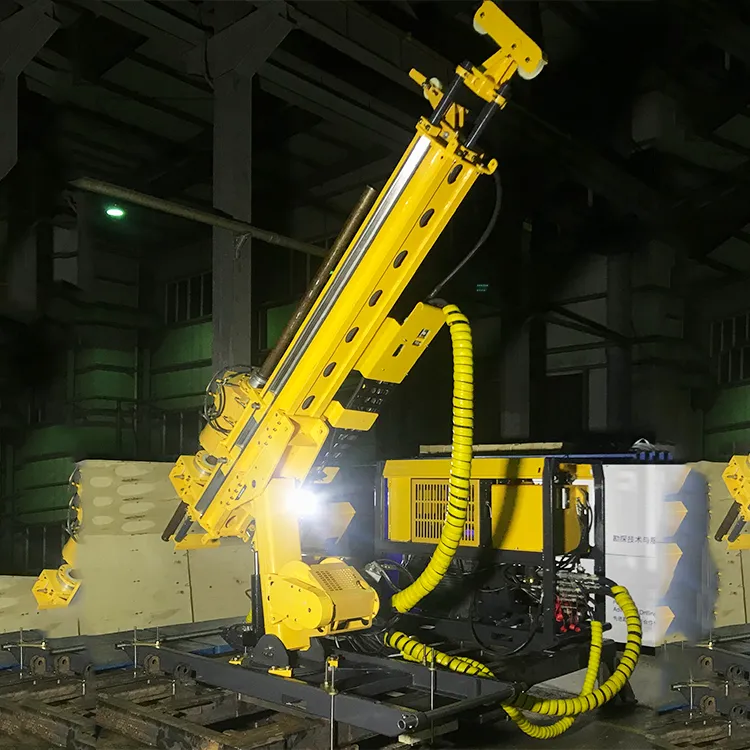

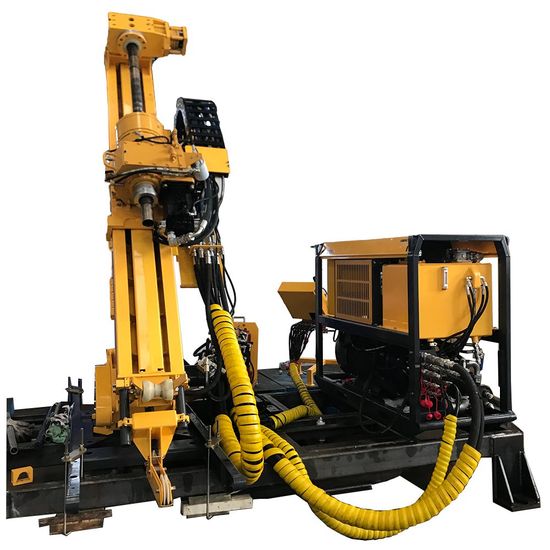

| The UX tunnel drilling rigs are operated by hydraulic active control (HDC), hydraulic pilot control (SHE) and digital intelligent control (IAM). The UX series of drilling rigs are equipped with intelligent hydraulic technology for flexible and comfortable operation and high productivity. Adopting AMMEX™ advanced iAM intelligent control system, the UX series drilling rigs are capable of automated drilling control, automatic stratigraphic adaptation, intelligent parameter adjustment, etc., and at the same time, they can realise the functions of on-site data remote communication monitoring and remote service support. With sufficient torque reserve and wide speed range, it can effectively cope with the challenges of complex formations. The nitrogen spring drill pipe gripper is flexible in control and reliable in operation, and realises synergistic linkage with the power head to ensure safe operation. Compact and multi-purpose design with modular layout allows flexible operation in narrow areas and easy drilling at any angle.zmwm22 | |||
| Technical Parameter | UX300 | UX600 | UX800 | UX1000 |
| Rig type | Fully hydraulic pit drilling rig | |||
| Drilling capacity (B/N/H) | 400 / 300 / 150 m | 600 / 500 / 220 m | 1000 /800 / 520 m | 1200 / 1000 / 620 m |
| Engine power (electric) | 37KW | 55 KW | 75 KW | 90 KW |
| Feed stroke | 1.1 m | 1.8 m | 1.8 m | 1.8 m |
| Max. torque | 650 Nm | 1800 Nm | 2000 Nm | 2250 Nm |
| upgrading power | 38 KN | 65 KN | 75 KN | 89 KN |
| Max. Drill Pipe Diameter | 90 mm | 90 mm | 90 mm | 90 mm |
| Suitable length of drill pipe | 1.5m | 1.5m / 3 m | 1.5m / 3 m | 1.5m / 3 m |
| Weight | 1550Kg | 3150Kg | 3350Kg | 3500 Kg |
| Forms of transport | Towing/manual labor for carrying | |||
