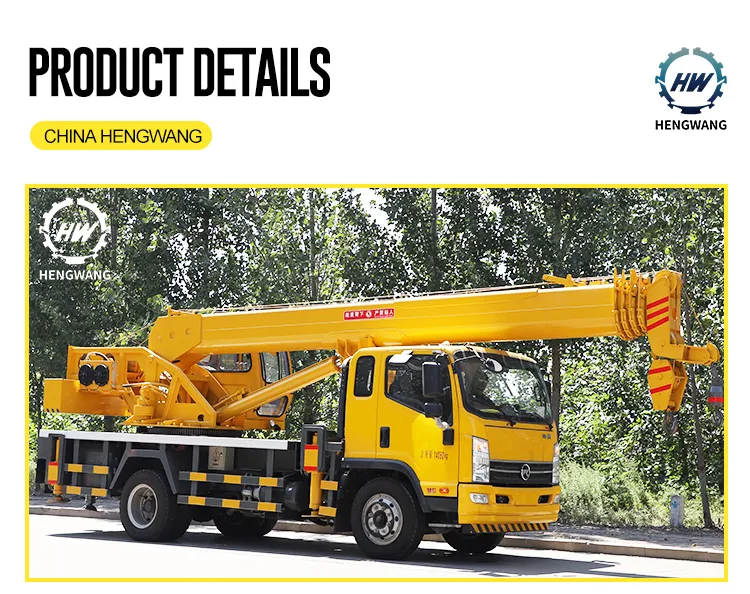

Name: China Brand New Factory 16ton Telescopic Boom Truck Crane
Brand: findtextile.com
SKU: CAUTOP-2061991
Price: 31250.00 USD
Availability: InStock

Model NO.:

HW-16

After-sales Service:

Video Technical Support, Online Support

Warranty:

12months

Certification:

CE, ISO9001

Condition:

New

Maximum Lifting Height:

30-40m

Maximum Lifting Weight:

14-16t

Shaft Number:

Crane Jib:

Five-Arm

Type:

Straight Arm

Trademark:

Transport Package:

Bare Metal

Specification:

10.5*2.3*3.48m

Origin:

China

HS Code:

8428909090

Product Description

Brand	HW	Slewing ring	Internal tooth 1.4m
Chassis model	Xugong Dongfeng	Rotary mechanism	Planetary steering
Total weight	14000kg	Outrigger	5 full hydraulic legs (double section)
Overall dimension	10.52.33.48m	Outrigger span	6250mm
Wheelbase	3800mm	Outrigger span(double)	5800mm
Main hook single load	16000kg	Protective device	Two-way hydraulic lock
Max. Lifting Height	30m,35m	Working lamp	double
Engine model	Diesel	Hydraulic pump	double pump 50/40
Gearbox model	6-speed gearbox	Oil and electricity	15kw IP6motor40/32
Power/motor	95kw (130hp)	Tire	825-20
Emission Standards	Guo3	Boom size	520mm*350mm
Braking System	Air break
Steering mechanism	Hydraulic power direction
Boom structure type	Walking rope within 7 meters and 5 knots
Boom structure type	Walking rope within 7 meters and 6 knots
Main lifting mechanism	16t hoist
Deputy Lifting Organization	12t hoist

Price	$31250.00 / SET
Mini Order	-+Subtotal: $312500
Availability	In Stock
