FD100, FD120
Provide
1 Year or 2000 Working Hours
Adjustable
Powered Pallet Truck
Diesel Engine
10T - 18T
Diesel
600mm
3000~5000mm
New
1220*175*75mm
12450kg
Japanese or Chinese Engine
2800mm
Red or Customized
3000mm
112kw/2000rpm
10 Ton Diesel Forklift
3900mm
10 Ton Diesel Forklift
Diesel Forklift
LTMG
Container
4255*2245*2850mm
China
84272090
Product Description

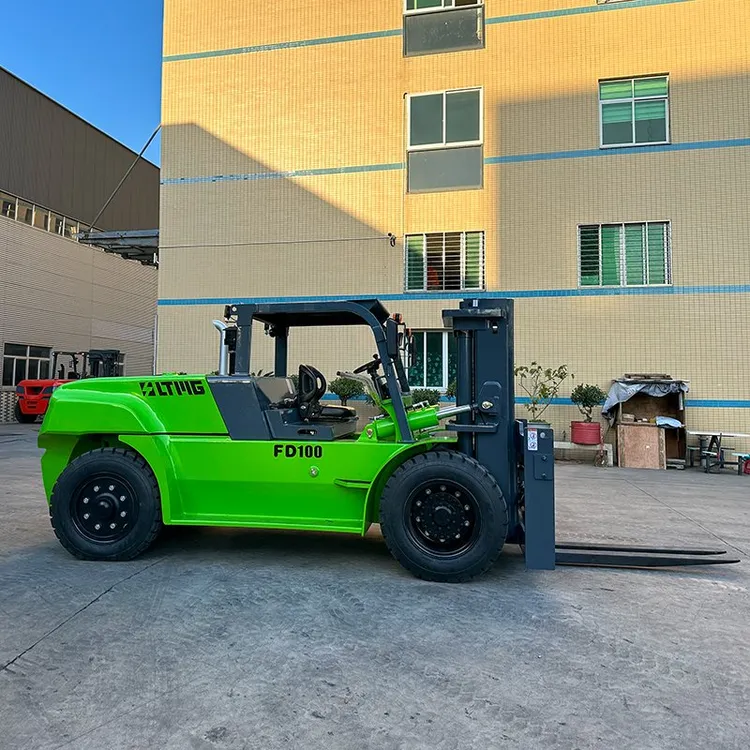

LTMG Container heavy duty forklift which has low mast suitable for working inside container
| Features | 1 | Manufacturer | LTMG | ||
| 2 | Model | FD100 | |||
| 3 | Load capacity | kg | 10000 | ||
| 4 | Load center | mm | 600 | ||
| 5 | Power unit | Diesel | |||
| 6 | Operator type | Driver/seat | |||
| 7 | Tire type | Pneumatic | |||
| 8 | Wheel | Front/rear | 4/2 | ||
| Dimension | 9 | Max. lifting height | mm | 3000 | |
| 10 | Free lift | mm | 205 | ||
| 11 | Fork size | L*W*T | mm | 1220*175*75 | |
| 12 | Tilt range | Mast forward/backward | deg | 6/12 | |
| 13 | Overall length(without fork) | mm | 4255 | ||
| 14 | Total width | mm | 2245 | ||
| 15 | Mast height (fork lowering) | mm | 2548 | ||
| 16 | Overall height fork raised | With backrest | mm | 4330 | |
| 17 | Height to head guard | mm | 2560 | ||
| 18 | Turning raduis(outside) | mm | 3900 | ||
| 19 | Front face of fork to front axle | mm | 710 | ||
| 20 | Min. right angle stacking aisle | pallet size :1100×1100 add clearence | mm | 6250 | |
| Performance | 21 | Speed | Max Travelling full/no load | km/h | 24/30 |
| 22 | Lifting full/no load | mm/s | 390/410 | ||
| 23 | Lowering full/no load | mm/s | 470/340 | ||
| 24 | Max.drawbar pull | full/no load | kg | 5850/3200 | |
| 25 | Gradeability at 1.6km/h | full load | % | 22 | |
| Max. Gradeability | full/no load | % | 24/20 | ||
| Weight | 26 | Truck weight | kg | 12450 | |
| 27 | Weight distribution | Full load front/rear | kg | 20160/2290 | |
| 28 | No load front/rear | kg | 5480/6970 | ||
| Frame | 29 | Tires | Number | front/rear | 4/2 |
| 30 | Model | front axle | 9.00x20-14PR | ||
| 31 | rear axle | 9.00x20-14PR | |||
| 32 | Wheelbase | mm | 2800 | ||
| 33 | Tread | Front/rear | mm | 1600/1700 | |
| 34 | Ground clearence | At lowest point(mast) | mm | 245 | |
| Frame | mm | 320 | |||
| 35 | Brake | Service brake | power brake | ||
| Parking brake | Mechanical-hand lever | ||||
| Engine | 36 | Battery | Voltage/capacity | V/AH | 2x12V-80AH |
| 37 | Engine | Model | 6BG1 | ||
| Rated power | kw/rpm | 82.3/2000 | |||
| Rated torque | N-m/rpm | 418/1500 | |||
| Number of cylinders | 6 | ||||
| Displacement | L | 6.494 | |||
| Fuel tank capacity | L | 140 | |||
| 38 | Transmission | shift stage(front/rear-type) | 2-2 automatic | ||
| 39 | Operating pressure | Hydraulic system pressure | kg/cm² | 200 |
1. Why choose us?
As a manufacturer, LTMG industrial is committed to offer not only products with high quality and performance and
competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of your factory ?
LTMG industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders,forklift trucks,excavator and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can you accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do you have?
competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of your factory ?
LTMG industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders,forklift trucks,excavator and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can you accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do you have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5. How about your delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can you provide OEM service?
LTMG industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
5. How about your delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can you provide OEM service?
LTMG industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
