China telescopic aerial platforms factory JIUHE articulated aerial platforms 21m 23m 25m 29m 38m 45m aerial vehicle

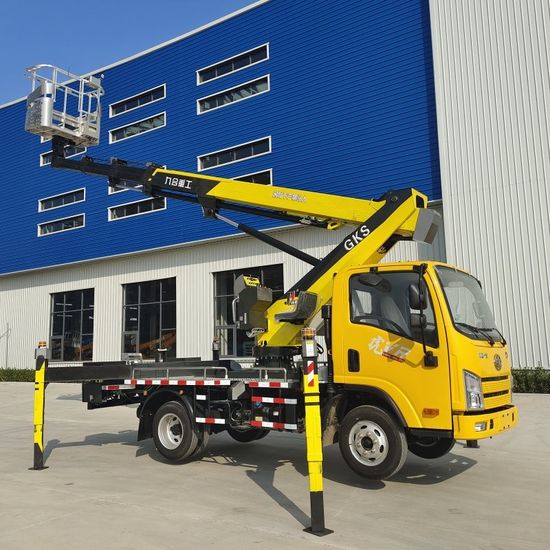

JIUHE 21M truck mounted aerial work platform( high altitude working truck ) is new product of JIUHE group, set many function in one machine, specification, performance advanced than domestic same level products.
Aerial work vehicles wide application range:
1.Engineering construction;
2. Plant maintenance and construction;
3.Municipal, electricity, street lights, communications, gardening, shipbuilding, transportation, docks, airports and ports, emergency rescue, large industrial and mining enterprises, industrial installation and maintenance and climbing operations;
4. equipment maintenance;
5.Three-dimensional warehouse, billboard installation;
6.Filming of film and television commercials;
7. High-altitude pipeline laying;
8.Laying of various pipelines;
9.Maintenance of various venues;
10.Construction and painting of viaducts, etc.
JIUHE High altitude working truck Available Model: 21M 23M 25M 29M 38M 45M, any model interest you, welcome contact us.
Main features as follows:
1. china aerial platform Lightweight design of the whole vehicle, welded with high-strength steel, with beautiful appearance;
2. The boom and outrigger are welded with high-strength steel, with beautiful appearance, large force and high strength;
3. The telescopic boom expand and contract synchronously, which is fast, stable and reliable;
4. The front and rear outriggers have good stability and large span. The outriggers can be operated at the same time or separately, and the operation is flexible. Can adapt to a variety of working conditions;
5. The turntable rotates 350 left and right, and adopts a double deceleration mechanism to move smoothly
6. Aerial work vehicle adopt Automatic control by controller, with display screen, setting protection mode to limit amplitude, safe and reliable;
Type | Item | Unit | Data | |
Dimension | total length | mm | 5995 | |
total width | mm | 2100 | ||
total height | mm | 2950 | ||
Chassis | chassis brand | -- | JMC/FAW | |
type | -- | 4*2 | ||
Engine power | KW | 85 | ||
steering wheel | -- | Left hand drive | ||
Emission standard | -- | China 6 | ||
seat(include driver) | person | 2 | ||
total weight | kg | 4495 | ||
Main performance data | working platform rated load | kg | 200/120/80 | |
max. working height | m | 21 | ||
operation range under max. working height | m | 2.0 | ||
Max. working amplitude | m | 11(200kg) 13.3(120kg) 14.5(80kg) | ||
Working height under max. working range | m | 5.1 | ||
· Outrigger span | Horizontal(front/rear) | mm | 4300/3600 | |
Vertical(left/right) | mm | 4100/3945 | ||
woring platform rotation angle | º | ±122 | ||
boom changing time | s | 40≤t≤80 | ||
boom rotation speed | s/r | 60≤t≤120 | ||
legs setting out and down time | s | 80≤t≤160 | ||
1. Q: What is your MOQ?
A: One Set is ok for your trail order.
2. Q: What is your price?
A: Please tell us the products model and quantity required, as well as your email, our sales will share you the best price.
3. Q: What is the delivery time?
A: Most of the order will within 20days, sometimes depend on your quantity and our present production plan.
4. Q: How about your Warranty and after sale service?
5. Q: Interested in your products, can you introduce them to me?
A: Please directly sent inquiry either leaving message or consulting online on website, and confirm us your correct email, so that our sales can show you more detailed information on products.
6. Q: OEM or ODM is available?
A: Yes, we can produce with your logo.
