45mvk High and Low Altitude Curved Arm Aerial Operation Working Vehicle Platform Truck Lift Bucket Truck with Scalable Long Flying Arm
Jiuhe Heavey Industry is a professional large manufacturer for concrete machinery located in Qingdao,China.Up to now, 68 distributors or agents and 128 after-sales services offices are scattered in all over China such as Beijing, Shanghai,Tianjin.Xian.Taiyuan and so on. Global business contacts are from more than 148 countries and now Jiuhe Brand has been a global famous brand in construction machinery industry.
JIUHE 45MVK Aerial Working Platform trucks Advantages
1. Good working performance and large working area
The maximum operating height is 45.8m, the maximum operating rnge is 27.5m, the working platform is 400kg load, and the operating parameters are far ahead of the domestic products of the same level.
This product uses new high-strength ultra-thin steel, and optimized the vehicle layout, to ensure that the product has a large operating range, while the vehicle is not overweight.
2. Flexible and convenient operation, a variety of operation options

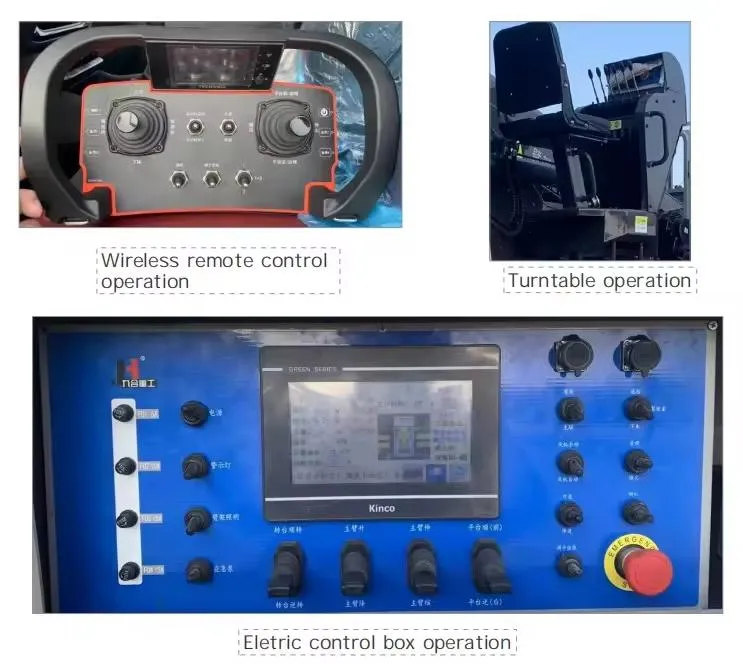

The whole vehicle has two operations: wireless remote control operation, and can also be operated in the hanging basket, which is safe, reliable and efficient.
Long-distance wireless remote control technology, joystick handle, zero-second response, no delay, to ensure that the operator is in a small working environment, Flexible and convenient operation, eliminating blind spots, better working vision, and avoiding the operator enduring severe cold and hot weather, you can choose Complete the operation in a suitable location; all main action operations can be performed with one hand.
3. Unique long flying arm function
Set up a retractable long flying arm, improve the ability to cross obstacles at high altitude, more adaptable to working conditions, and in a wide range of adjustments, the operation is more rapid and convenient, can be convenient to accurately locate the air work position, greatly improve work efficiency.
| Category | Item | Unit | Detail Data |
| Size parameters | Total length | mm | 9697 |
| Total width | mm | 2500 | |
| Total height | mm | 4000 | |
| Weight parameters | Total passengers | person | 3 |
| Total weight | kg | 18000 | |
| Curb weight | kg | 17805 | |
| Performance parameters | Rated load of working platform | kg | 400 |
| Work platform size | mm | 3200x1100x1145 | |
| Boom type | - | 5 + 2 Telescopic composite boom | |
| Max. working height | m | 45.8 | |
| Working range at max. working height | m | 7.4 | |
| Max. working range | m | 27.5 | |
| Working height at max. working range | m | 35.5 | |
| Rotary angle of turntable | ºC | Any angle | |
| Working platform rotation angle | ºC | ±360 | |
| Outriggers span (full extension) | mm | Front 8133 Rear7992 | |
| mm | Left 6742 Right7010 | ||
| Driving parameters | Front overhang/rear overhang/rear protraction | mm | 1430/3226/289 |
| Wheel track Front/Rear | mm | 1914/1860 | |
| Wheelbase | mm | 5000 | |
| Max. driving speed | km/h | 100 | |
| Min. ground clearance | mm | 250 | |
| Approach/departure angle | ºC | 23/9 | |
| Chassis | Chassis model | FAW/HOWO | |
| Engine model | - | CA4DKI-22E61/WP4.6NQ220E61 | |
| Max. engine power | kw | 165/162 | |
| Emission standard | - | GB17691-2018 Euro 6 | |
| Fuel type | Diesel | ||
| Brake system | - | Air brake |
Founded in 2011, Qingdao Jiuhe Heavy Industry Machinery Co., Ltd. is a national grade high-tech enterprise integrating the R&D, production, sales and services of concrete machinery and high altitude work truck. Main products:trailer concrete pump, concrete pump truck, concrete placing boom, wet shotcrete machine, ladder lift truck, aerial work vehicle and so on.
JIUHE always focuses on customer needs and satisfaction. Each year the company will invest 5%-8% of its annual sales revenue in R&D and innovation, and is committed to producing world-class high-quality products. by now, the company has applied for more than 200 patents and won multiple honorary certificates of both national and industry-level.
As one of the companies in the implementation of "Made in China 2025" plan, Jiuhe actively responds to China "One Belt, One Road" initiative, and keep marching towards the world market at "China Speed". In the ever-changing industry pattern, Our company has achieved steady and rapid development and is committed to becoming a world-class Chinese brand.
Q:Are you trading company or manufacturer?
A:We are factory, and we are gald if you would like visiting our company.
Q:How long is your delivery time?
A:Generally it is 5-10days if the goods are in stock or it is 15-30days if the goods are not in stock. It is according to your quantity.
Q:what services can we provide?
A:Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,DAF,DES;
Payment Currency:USD;
Payment Type: T/T,L/C;
Language Spoken:English,Chinese
A: Most of the order will within 20days, sometimes depend on your quantity and our present production plan.
Distributor Or Dealer Under Recruiting:
Now to open international market deeper and better,We are looking for suitable partner who can work as our certain market local distributor or dealer. If your company in construction machinery industry more than 5 years, has stable clients that their need just match our products, welcome communicate further, if all condition is ok, we can authorize your company as our certain local distributor or dealer. From which time we will support and protect your right to ensure your benefits. if you are looking for suitable business chance to work with China factory deeper, then don't hesitate to contact us!
