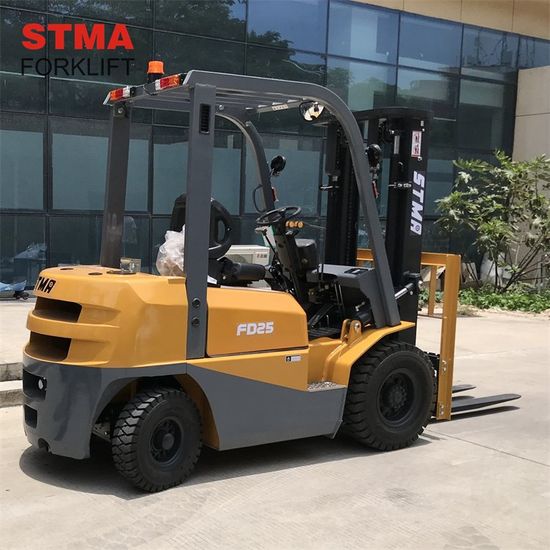

Small forklift
Features of small diesel forklift1. Forward visibility has been improved 10%.The wide mast,with lift chain spacing,makes the view forward less cluttered,to enhance safety and improve productivity.
2. Safe inspection .The engine hood has an automatically-locked.This fail-safe stopper prevents the hood from closing unexpectedly,ensuring safe inspection under the hood.
3. Optimal gearshift pattern is selectable.Trucks with an automatic transmission come wit a three-mode selection switch.You can select the automatic transmission gearshift pattern according to your working conditions with the flick of the switch.
4. Durable hydraulics.Oil-filled cylinders.The lift cylinder piston rads are filled with hydraulic oil to improve the durability of the lift cylinders.
5. Safe starting.Neutral safety mechanism.The neutral safety mechanism prevents the engine from being started unless the directional control lever is in the neutral position.This prevents the truck from moving abruptly when the starter switch is turned on both automatic and manual transmission trucks.
6. Outstanding visibility from the rear.High-mount stop lamps.The stop lamps are installed at the rear on the top of the overhead guard to provide improved visibility to nearby works or other vehicles behind the truck,thus offer added safety in the workplace.
Details:
Specifications of forklift truck
| Manufacturer | STMA | ||||
| 1 | Model | FD20T | FD25T | ||
| 2 | Power Type | Diesel | Diesel | ||
| 3 | Rated Capacity | kg | 2000 | 2500 | |
| 4 | Load Centre | mm | 500 | 500 | |
| 5 | Lift Height | mm | 3000 | 3000 | |
| 6 | Fork Size (L×W×T ) | mm | 1070×120×40 | 1070×120×40 | |
| 7 | Mast Tilt Angle (F/R) | Deg | 6°/12° | 6°/12° | |
| 8 | Front Overhang (Wheel center to fork face) | mm | 470 | 470 | |
| 9 | Ground Clearance(Bottom of mast) | mm | 120 | 120 | |
| 10 | Turning Radius (outside) | mm | 2170 | 2240 | |
| 11 | Min. Intersecting aisle | mm | 1920 | 1920 | |
| 12 | Max.Gradeability (No load/Full load) | % | 20 | 20 | |
| 13 | Wheelbase | mm | 1600 | 1600 | |
| 14 | Service weight | kg | 3350 | 3750 | |
| 15 | Battery (Voltage/Capacity) | V/Ah | 12/80 | 12/90 | |
| 16 | Length to face of fork(Without fork) | mm | 2460 | 2530 | |
| 17 | Overall Width | mm | 1150 | 1150 | |
| 18 | Mast Lowered Height | mm | 1985 | 1985 | |
| 19 | Mast Extended Height(With backrest) | mm | 4030 | 4030 | |
| 20 | Overhead Guard Height | mm | 2070 | 2070 | |
| 21 | Travel (No load) | km/h | 19 | 19 | |
| 22 | Lifting(Full load) | mm/s | 490 | 490 | |
| 23 | Front | mm | 7.00-12-12PR | 7.00-12-12PR | |
| 24 | Rear | mm | 6.00-9-10PR | 6.00-9-10PR | |
| 25 | Model | C490 | C490 | ||
| 26 | Manufacture | Xinchai | Xinchai | ||
| 27 | Rated output/r.p.m. | N.n/rpm | 40/2650 | 40/2650 | |
| 28 | Rated torque/r.p.m. | N·m | 160/1800-1900 | 160/1800-1900 | |
| 29 | No.of Cylinder | 4 | 4 | ||
| 31 | Displacement | L | 2.67 | 2.67 | |
| 32 | Fuel Tank Capacity | L | 60 | 60 | |
STMA Industrial(Xiamen) Co.,Ltd is a national high-tech enterprise specializing in the research development, production, sales and service of storage equipment and intelligent industrial vehicles, the company is located in a beautiful coastal city XIAMEN in China, It has advanced forklift manufacturing technology, perfect processing equipment and product testing center, and is a member of china industrial Vehicle Association, it has passed the safety production standardization, ISO9001 international quality system certification and EU CE certification, and has obtained nearly 50+ national invention patents, the main products are counterbalanced forklift truck(diesel forklift, gasoline forklift, electric forklift) and electric storage equipment such as pallet truck, stacker, reach truck, etc, are widely used in fields such as: automobiles, chemicals, products, electric applications, papermakig, medicine, beverages, clothing, logistics, e-commerce, and airport terminals.
Our company inherits the enterprise tenet of "honesty, customer first, quality first, timely delivery, service, whole staff participating, ceaseless improvement and pursuing excellence", and constantly develop new products to meet market demands, professional, high-quality, pioneering and energetic team, with a full range of skills, good reputation and professional ethics, to provide customers with comprehensive personalized service.
7*24HOURS SERVICE
******
Pre-Sales Service:
-- Inquiry and consulting support.
-- OEM Service available
-- Visit to our factory.
-- Photos&Videos for your order before shipment.
After-Sales Service
-- 1 year or 2000 working hours (which occurs first) period quality warranty , during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.
-- Spare parts: STMA is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
Q.What's the Certificate do you have?
A. STMA forklift meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements.
Q. What are our advantages compared with other manufactures/factories?
A.1) Reliable Quality: Carefully select regular manufacturers for supporting spare parts, like engines, bridge,transmissions, and many parts designed and produced by ourselves, always adapting the best materials
A.2) Fast Delivery: Generally, we can delivery within 10 working days in factory after receiving pre-payment from customers.
Q. Which payment terms can we accept?
A. Normally we can work on T/T or L/C.
A.1) On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or againes the copy of original B/L for old long cooperation clients.
A.2) On L/C term, 100% irrevocable LC at sight without "soft clauses" can be accepted.
Q. Can we provide OEM SERVICE?
A. STMA can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
