KX-CDSS10 3M
Online Support, Spare Parts
1 Year
Not Adjustable
Stacker
Manual
1000kg
500mm
3m
New
910mm(1150mm)
340-1000mm
550/685mm
1585mm
1045mm
2068mm
3568mm
1480mm
φ80X70
φ180X50
1200mm
Nylon Wheel
Black, Red, Blue, Yellow
340kg
KAIXUN
Seaworthy Packing
1600X1050X2200mm
China
84279000
Product Description
Features
2. Lifting Height 3M
3. Fork Length 910mm/1150mm
4. Fork Adjustable Width from 340mm to 1000mm
5. Fixed straggle legs width 685mm/550mm
6. Turning radius 1480mm
7. 3-Position handle control - Raise, Lower, and Neutral
8. With metal grid and brake system to ensure safety
Advantages
- Reasonable design and compact structure
- steady lifting, flexible moving, and convenient operation.
- High efficient pumps makes the control easier to operate
- Metal grid protects user from lift chains
- With brake system to ensure safety during operation.
Parameters:
| Articles/Model | Unit | KX-CDSS-10 | KX-CDSS-15 | KX-CDSS-20 | |
| Main characteristics | Rated load capacity | kg | 1000 | 1500 | 2000 |
| N.W. | kg | 278 288 310 340 | 288 317 340 363 | 269 320 343 366 | |
| Max.mast height | mm | 2068/2568/3068/3568 | |||
| Wheel specification | Wheel material | Nylon | |||
| Carrying wheel | mm | Φ80×70 | |||
| Driving wheel | mm | Φ180×50 | |||
| Wheel base | mm | 1200 | |||
| Size | Lifting height | mm | 1600/2000/2500/3000 | ||
| Overall height | mm | 2068/1568/1818/2068 | |||
| Fork length | mm | 910/1150 | |||
| Fork adjustable width | mm | 340/1000 | |||
| Overall width | mm | 1045 | |||
| Overall length | mm | 1585 | |||
| Turning radius | mm | 1480 | |||
| Wheel base | mm | 1200 | |||

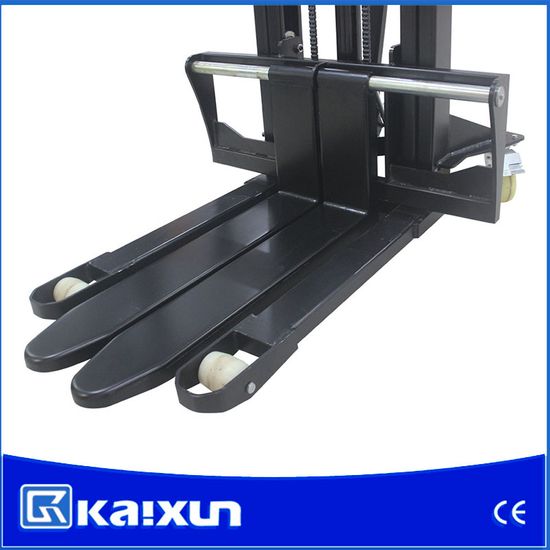

Photos :
Company Profile
Kaixun Group --- Zhejiang Kaixun Mechanical and Electrical Co., Ltd., which founded in 1998, is an export-oriented high-tech enterprise. We integrate R&D, production and sales into one body, and we are specialized in manufacturing various 380 items, including hoisting macchinery, financial equipments, electric winch, wlwctric truck, electric forklift and hydraulic car, etc.
Our comapny locates at Wenzhou City, Zhejiang Province, China. We covers an area of 59000m², structure area 87000m², and owned 880 sets of production equipment, which includes 260 sets of testing instruments. We have the ability of output RMB1500 million every year.
We aim to set up KAIXUN brand, creat top quality, offrt brst service and ensure customer satisfactory. We have passed the certification of ISO9001:2008 quality system. Many products have got CE, GS, RoHS, CB, UL, CUL, and FCC approvals.
Now we have been exporting 90% of our products in bulk to Europe, USA, Africa, Middle east, south Asia, Russia, India, etc. Over 120 countries and regions. Our products are highly praiised by our clients.
