Marine Heat Exchange Cooler Shell and Tube Evaporator Equipment

Model NO.:

Heat Exchange Equipment

After-sales Service:

Guarantee Repair

Warranty:

1 Year

Model No.:

Th08031047

Application:

Heater, Cooler, Condenser

Principle:

Tube Heat Exchange

Style:

Dry Heat Exchange

Trademark:

TAIHANG

Transport Package:

Wooden Case

Specification:

As per request

Origin:

China

HS Code:

8419500090

Product Description

Marine Heat Exchange Cooler Shell and Tube Evaporator Equipment

Type	Single /Double /Triple/Fourfold Circuit System
After-Sales Service Provided	Video Technical Support
Use	Cooling and Heating
Outer Shell	PP/ PVC Plastic
Tube Material	SUS304/316L/Titanium/Stainless Steel
HS Code	8419500090
Origin	China

Corrosion Resistant U Shaped Shell And Tube Evapopator
Work Condition:
1)Refrigerant side: R22,R134a,R407c,R410a etc.
2)Water side: fresh water, nature water, drink water, seawater, saltwater, ground water etc .
Material:
1)Heat transfer Tube: 316L / SUS304 / Copper / Titanium
2)Shell: 316L / SUS304 / Carbon steel / PP / PVC

The combined pure titanium evaporator adopts the structure of upper and lower double barrels.The upper and lower barrels make internal diversion, so that the flow of chemical liquid changes direction.Also the cold and heat exchange is uniform.

The inner tube refrigerant adopts double in and double out, which makes the refrigeration effect better, the refrigerant flows smoothly, and the cold and heat exchange improves rapidly.

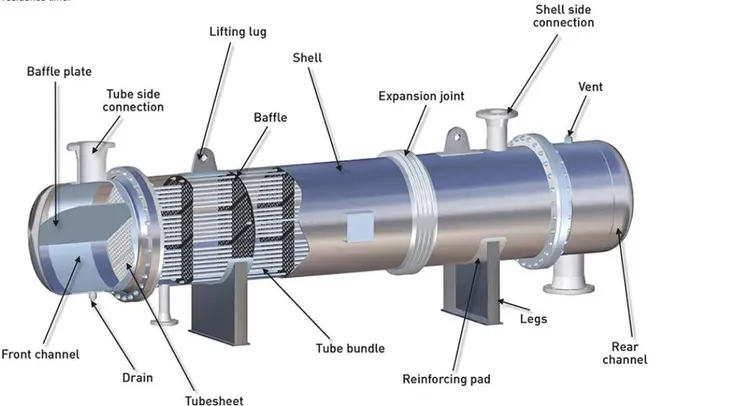

Removable Easy To Clean

You can take tube bundle out of shell, it can be easily claned.

The spiral baffle makes the shell side fluid flow in a continuous spiral shape.

Shell and Titanium Tube Evaporator
Model	Capacity	Water flow	Dimension size(mm)										Gas out	Gas in	Water in/out	Temp senator	Drain port	N.W
Model	KW	m²/H	A	B	C	D	E	F	G	H	R	L	øa	øb	w1/2	i1/2	g	kg
TH-1	11.6	2.0	660	200	90	510	150	340	60	200	40	40	22	19	50	1/2	25	33
TH-2	18.6	3.2	830	200	90	660	150	500	60	200	40	40	28	19	50	1/2	25	38
TH-3	23.2	4.0	1050	200	90	900	300	600	60	200	40	40	28	19	50	1/2	25	42
TH-4	27.9	4.8	1200	200	90	1050	350	600	60	200	40	40	28	19	50	1/2	25	46
TH-5	35	6.0	1420	200	100	1270	400	800	60	200	40	40	38	22	63	1/2	25	52
TH-6	46,5	8.0	1500	225	100	1350	450	800	60	200	43	43	38	22	63	1/2	25	55
TH-7	58.1	10.0	1370	250	100	1220	350	800	60	260	53	53	38	28	63	1/2	25	57
TH-8	69.7	12.0	1600	250	100	1450	350	1000	60	260	53	53	38	28	63	1/2	25	62
TH-9	93	16.0	1920	250	110	1740	420	1200	60	260	53	53	54	38	75	1/2	25	71
TH-10	116.3	20.0	1550	215	110	1370	300	1000	60	300	65	65	54	38	75	1/2	25	97
TH-11	139.5	24.0	1810	215	110	1630	360	1200	60	300	65	65	76	38	75	1/2	25	114
TH-12	162.8	28.0	2070	215	120	1870	550	1200	60	300	65	65	76	38	90	1/2	25	125
TH-13	186	32.0	2250	215	120	2070	450	1500	60	300	65	65	76	38	90	1/2	25	135
TH-14	209.3	36.0	2600	215	120	2420	350	2000	60	300	65	65	76	38	90	1/2	25	147
TH-15	232.6	40.0	2800	215	120	2620	500	2000	60	300	65	65	89	54	90	1/2	25	157
TH-16	255.80	44.0	2500	255	140	2280	600	1600	60	400	80	80	89	54	110	1/2	25	184
TH-17	279.12	45.0	2700	255	140	2450	400	2000	60	400	80	80	89	54	110	1/2	21	195
TH-18	302.38	52.0	2920	255	140	2700	600	2000	60	400	80	80	89	54	110	1/2	25	205
TH-19	325.64	56.0	2400	400	150	2170	550	1500	80	400	90	85	108	54	110	1/2	25	239
TH-20	348.9	60.0	2550	400	150	2320	500	1800	80	400	90	85	108	54	110	1/2	25	250
Th-21	372.16	64.0	2710	400	150	2480	550	1800	80	400	90	85	108	54	110	1/2	25	260
TH-22	395.42	68.0	2860	400	150	2630	550	2000	80	400	90	85	108	54	110	1/2	25	270
TH-23	418.68	72.0	3010	400	150	2780	600	2000	80	400	90	85	108	54	110	1/2	25	282
TH-24	441.94	76.0	3210	400	150	2980	750	2000	80	400	90	85	108	54	110	1/2	25	296

1.Our Shipyard:Ningbo Zhenhe shipyard, and now Taihang is the branch representative of our yard.
2.Our founding team has experience of more than 15 years in ship building and ship repair with our own engineer and designer.
3.Equipment quality guarantee: Based on shipyard feedback, we built up manufacturer file to ensure the good quality of the products. Also we can send our engineers to help our clients to install and test these exported equipment.
4.We are a second hand ship broker to help you find the satisfied used different kind vessels.
5.We are able to provide the CKD kits and one-stop service based on our laser-cutting machine and purchase ability
6. We have a very professional design and technical team to work out perfect plan for our clients and help to slove out any matters with pre-sale and after-sale.
7.Customer Distribution: Tananzia, Rwanda, India(Mumbai and Kalkatta), Suva, Portugal, Russia, Nertherland, Iceland, Denmark, Malaysia, Mexico.......

Price	$1500.00 / Piece
Mini Order	-+Subtotal: $15000
Availability	In Stock
