EVD-40W-CC
One Pile with Multiple Charges
Public Use
Floor Type
Quick Charge
40kw DC EV Charge
Commercial EV Charger
Fast Charging
150-1000V DC
260-480V AC
Over-Voltage Protection
Free Accessories
Fast EV Charging Station

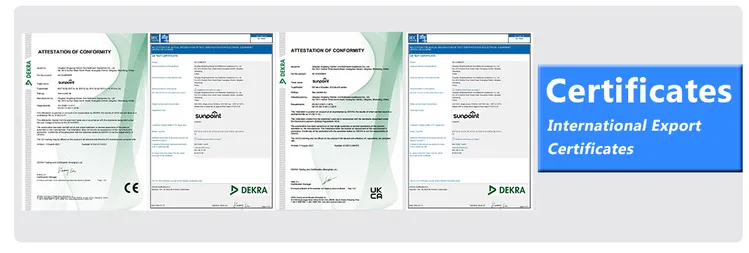

CE, CB
12 Months
Standard Export Carton Packing
650/270/759
China
Product Description
Efficient charging
One charger with 2 charging points, internal automatic load balance The power can be expanded from 40kW
One charger with 2 charging points, internal automatic load balance The power can be expanded from 40kW
IP54 Weatherproof Rated
It can withstand the harshest of weather conditions for years to come
It can withstand the harshest of weather conditions for years to come
Protection
Over voltage protection
Under voltage protection
Over load protection
Short circuit protection
O-PEN Protection
Over voltage protection
Under voltage protection
Over load protection
Short circuit protection
O-PEN Protection
Intelligent control
Supports the OCPP1.6J communication protocol Remote maintenance monitoring APP intelligent operation control
Supports the OCPP1.6J communication protocol Remote maintenance monitoring APP intelligent operation control
Cable Length
5m (Customized acceptable) TPU Cable Long service life Environmental-friendly
5m (Customized acceptable) TPU Cable Long service life Environmental-friendly
Smart app gives you full control of your charger. From scheduling your charging session for when your electricity is cheapest, adjusting the power rating, monitoring your energy usage and much more.
Model | EVD-40W-CC | EVD-40W-C |
Input characteristic | ||
| 260-480V AC | 260-480V AC | |
| 50/60Hz | 50/60Hz | |
| 60A | 288A | |
| <30W | <30W | |
DC Output characteristic | ||
| CCS2×2 | CCS2×1 | |
| Mode 4 | Mode 4 | |
| 150-1000V DC | 150-1000V DC | |
| 40kw | 40kw | |
| 0~130A DC | 0~130A DC | |
| <±0.5% | <±0.5% | |
| <±1% | <±1% | |
| RMS: ±0.5%;Peak: ±1% | RMS: ±0.5%;Peak: ±1% | |
| ≤5%@50%~100%full load | ≤5%@50%~100%full load | |
| 0.5 | 0.5 | |
| ≥ 95.2% (Full load) | ≥ 95.2% (Full load) | |
| 5m (Customized acceptable) | 5m (Customized acceptable) |
