SLD13YA12A2CC
24 Hours Online
New
3
Trailer
ASTM, CE, DIN, ISO
Steel
Rear Axles
Customer Demands
13t/16t
338/410
SHENLI
Container
1816/1850
Shangdong Province China
87169000
Product Description
American Type 127 round Axle Series Specifications
| Axle Type | Max Capacity(T) | Track(mm) | Brake Size(mm) | Center Distance of Spring Seat(mm) | Axle Tube(mm) | GM Center Distance of Brake Chamber(mm) | Wheel Fixing | Total Length(mm) | Rim is recommended to use | Axle Weight(kg) | Bearing | ||
| Studs | P.C.D(mm) | Hole Diameter(mm) | |||||||||||
| SLD13YA12A2CC | 13 | 1816 | Φ420×180 | ≥916 | 127×18 | 356 | 10-M22×1.5 ISO | 335 | 281 | 2176 | 7.5v-20 | 338 | (Outer)518445/10 (Inner)518445/10 |
| SLD13YA11A2CC | 13 | 1816 | Φ420×180 | ≥916 | 127×18 | 356 | 10-M22×1.5 ISO | 285.75 | 221 | 2176 | 7.5v-20 | 358 | |
| SLD13YA14A2CC | 13 | 1816 | Φ420×180 | ≥916 | 127×18 | 356 | 8-M20×1.5 JAP | 285 | 221 | 2176 | 7.5v-20 | 338 | |
| SLD13YA17A2CC | 13 | 1816 | Φ420×180 | ≥916 | 127×18 | 356 | 10×7/8''-11 BSF | 335 | 281 | 2176 | 7.5v-20 | 338 | |
| SLD16YA12A4CJ | 16 | 1850 | Φ420×220 | ≥940 | 127×19 | 370 | 10-M22×1.5 ISO | 335 | 281 | 2200 | 8.0v-20 | 410 | (Outer)518445/10 (Inner)220149/10 |
| Remarks: Axle can do inboard and outboard upon your requirement. | |||||||||||||
Performance and characteristics:
1.Simple disassembly and easy maintenance
2.Strong bearing capacity, perfect braking performance
1.Simple disassembly and easy maintenance
2.Strong bearing capacity, perfect braking performance
| Company Profile |

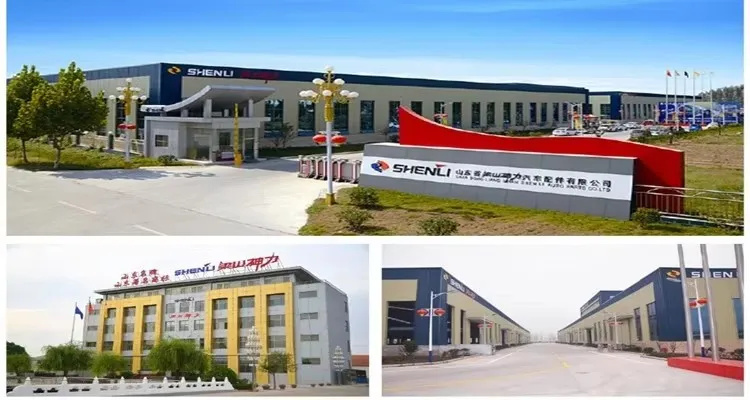

Shandong Province Liangshan Shenli Auto Parts Co.,Ltd. was build in 1995, located in Liangshan Shandong which is the largest trailer base in China, we are professional in manufacturing Trailer Axle, Suspension, Brake shoe, Brake pad and Brake liners. Company have two factories which covers an area of 90,000 square meters. All technical targets conform to or exceed the national standards.
Shenli relies on the world First-class production Line, professional R&D, technical team and skilled workers, has won the ISO/TS16949:2009, USA DOT and Europe EMARK etc. Certifications. At the same time, the liners had passed USA Link and Green Test.
Shenli products were sold to all over the world, such as America, Canada, Australia ,UAE, India, Thailand, Iran and south Africa..., are well-recoginzed by our customers.
Company always insist on "quality first, customer service", General manager Mr. Feng Jingyou and his staff welcome all friends from home and abroad come to our factory and make business together.
Shenli relies on the world First-class production Line, professional R&D, technical team and skilled workers, has won the ISO/TS16949:2009, USA DOT and Europe EMARK etc. Certifications. At the same time, the liners had passed USA Link and Green Test.
Shenli products were sold to all over the world, such as America, Canada, Australia ,UAE, India, Thailand, Iran and south Africa..., are well-recoginzed by our customers.
Company always insist on "quality first, customer service", General manager Mr. Feng Jingyou and his staff welcome all friends from home and abroad come to our factory and make business together.
