HY940ST126
with After Sales Service
One Year Warranty
Semi-Trailer
30T
CE, ISO9001, CCC
8000-9000mm
2240mm
Heavy Duty
Leaf Spring Suspension
Van-type
4 Axles
16 Pieces with One Spare Tire
Not Self-dumping
No ABS Anti-lock Braking System
Steel
New
Jost Brand, 2" or 3"
Optional for BPW,Fuwa,Fengbao,L1
Jost or Fuwa Brand
Linglong 12r22.5, 17 Pieces
700mm+150mm+650mm or Customized
30 Tons, 35 Tons, 40 Tons, 30tons, 35tons, 40tons
12500mm
2500mm
Mechanical Suspension X 3, Front Air Suspension X1
2mm Thickness Checker Plate
12 Pieces, Suitable for 20FT, 40FT Container
Wabco Braking System
Huayue
Naked or Waxed Before Shipment
12500*2500*3250mm
Xiangyang, China
8701200000
Product Description

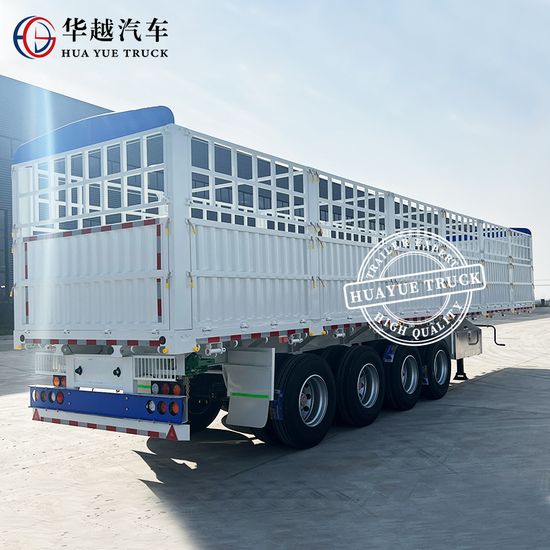

Huayue 4 Axles Container/Bulk Cargo Transport Stake Semi Trailer With High Side Wall
We are professional semi trailer manufacturer since 2013
Warehouse fence semi trailer is wildly used in logistics industry for mid and long distance transportation due to the multipurpose feature, it can carry many kinds of cargos and materials such as agricultural and sideline products, livestock, bulk cargo, bagged cement, construction machinery, etc. The side wall of fence semi trailer is detachable, with trun-locks, it is also suitable to carry container.
Huayue warehouse fence semi trailer use international famous brand accessories such as BPW axles, JOST landing gear, JOST kingpin, WABCO braking system,etc, we are also optional for China famous brand accessories such as FUWA landing gear, FUWA axles, Fengbao axles, etc.
Huayue can customize your semi trailer as per your request, whatever you need, we are commited to meet your demands at our efforts!
| Huayue 4 Axles Container/Bulk Cargo Transport Stake Semi Trailer With High Side Wall | |
| Tare Weight | 7860 kg |
| Overall Length | 12500 mm |
| Overall Width | 2500 mm |
| Fence Size | 700mm+150mm+650mm Total: 1500mm. Detachable. |
| Overall Height | 3020mm |
| Payload | Max. 32000 kg |
| I Beam & Chassis | Heavy duty and extra durability designed I beam. Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 8mm; Middle Flange 5 mm; Bottom Flange 10 mm. |
| Axle | 4 axles |
| Fuwa 13T with front axle liftable with Air bag | |
| Suspension | 3 sets Mechanical suspension, one set air suspension on front axle. |
| Floor | 2 mm thickness checker plate |
| Side height | 1500 mm, detachable |
| Leaf Spring | 10-piece leaf spring 16*9mm thickness |
| King Pin | JOST brand 2" Bolt-in King Pin |
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear |
| Wheel Rim | 9.00-22.5 wheel rim, 17 pieces including one spare |
| Tire | Linglong 12R22.5 tubeless tire, 17 pieces including one spare |
| Twist Lock | 12 nos. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down. |
| Spare Tire | one set of spare tire including a carriers |
| Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Accessories | One standard tool box 1000L fuel tank |
