CLW5180TX7
Available
1 Year
Compactor
＞15000L
Euro 3
Manual
5t
Diesel
4×2
Dongfeng
Medium
Compression Type
New
Side Is 4mm,Bottom Is 5mm
No More Than 23s
Q345 Carbon Steel
Customization
0.2 Cbm
1:0.8
6 Tires+1 Spare Tire
10r20 Standard Tire
13 Tons
CLW
Naked, Waxed, RO-RO, Bulk Ship, etc
8900*2480*3100mm
Hubei, China
8704230090
Product Description

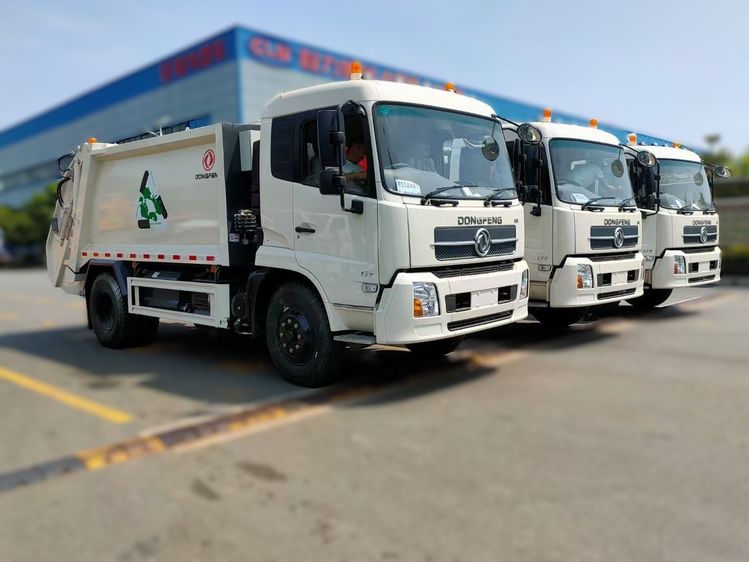

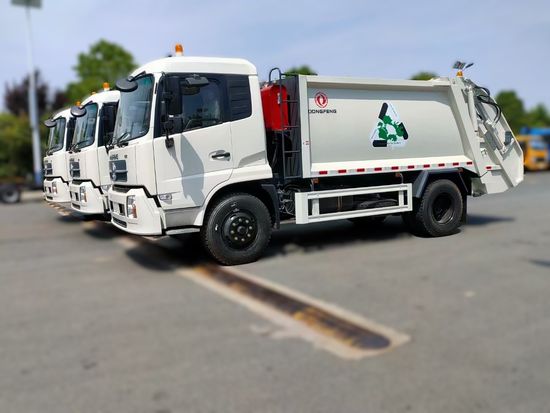

The chassis of this Dongfeng garbage compression truck is the 4*2 type of Dongfeng KR, and the power is provided by the B190 33 engine. The overall dimension is 8900*2480*3100mm.
The volume of the garbage bin on the upper part reaches 16 cubic meters. The tank body is made of Q345 carbon steel, with a thickness of 4 mm on the side and 5 mm on the bottom. The compaction ratio of this vehicle is 1:0.75, and the compression force is as high as 13 tons. It is also equipped with a sewage tank, which can effectively handle the sewage generated during the garbage compression process, improving the efficiency and environmental protection of garbage disposal.
Whether it is for garbage collection on urban streets or in communities, this Dongfeng garbage compression truck can play an important role and provide strong support for maintaining environmental cleanliness.
| Main Technology Parameter | |
| Model Name | CLW brand 16cbm garbage compactor truck |
| Driving Type | 4×2, |
| Color | White color or based on client's request. |
| Weights | |
| Rated payload weight(kg) | 13000 |
| Curb weight(kg) | 5000 |
| Dimensions | |
| Wheelbase(mm) | 4500 |
| Overall Dimension(mm) | 8900*2480*3100 |
| Max speed(km/h) | 95 |
| Engine | |
| Engine model | B190 33 |
| Emission standard | Euro 3 |
| Engine type | Vertical/in-line/water-cooling/ four-stroke/ supercharged inter cooler |
| No. of cylinders | straight-6 cylinders, diesel |
| Displacement(L) | 5.9L |
| Max. output (kw) | 140 (190HP) |
| Drive Line | |
| Transmission | DF brand: 6S900;6 forwards,1 reverse gear, manual operation |
| Steering | Power steering |
| Brake | Oil brake with vacuum pump |
| Axle | |
| Front axle | Dena 6 tons |
| Rear axle | Dena 10 tons |
| Tire specification | |
| Tire specification | 10R20 standard tire,6 tires+1 spare tire |
| Garbage compactor box | |
| Volume | 16 cbm |
| Raw material | Q345 carbon steel, side is 4mm, and bottom is 5mm. |
| Loading Method | Rear loader, waste bins flipover mechanism, can match 2 units 120 L, or 1 unit 240L and 1 unit 660L waste bins |
| Unloading Method | The back garbage filler unit is lifting up first, then garbage is pushed out by pushing plate |
| Compacted Ratio | 1:0.8 |
| Crushing Force | 13 tons |
| Control Method | Double side control box + manual levers |
| PLC; one-key cycling + half-auto control | |
| Sewage Tank | One unit |
| Others | The bottom box and filler unit are made of thick steel plate. The back filler unit lifting cylinder is equipped with a locking device. The upper part is equipped with a function of repeated compression and bidirectional peristaltic compression, an integrated flashlight operation mode, and a double-sided control box. |
| Camera | 2 units; one is for reverse image, and one is for checking the working condition. |
1)Bysea (ro-ro,bulk ship or container),We will choose economical, safe andreliable transportation methods forcustomers2)Byroad (send to korgos , erlian , ruili , reindship gate , Kashgar and otherBorder ports )
ChengLi Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China. It is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness, etc. Our company has independent export authority, with good technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation, we have attracted a lot of customer from all over the world.
l More than 10 years' experience as a manufacturer
l CCC, ISO, BV, ASME certification
l Perfect after-sale service
l Trucks covering more than 50 countries and regions
l 300 kinds of trucks and trailers
l Good cooperation with 30% regular customers
l Annual production value topped 240,000,000 US dollars per year
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
1.Our Advantages:
A:1. Factory direct supply: reliable quality and fast delivery.
2. Warranty: From the date of receiving, in normal use within 30000km or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs.
3. Tracking service: lifelong.
4. Chassis question: When the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station.
5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.
6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.
2.Packaging & Shipping
A:Mainly in 3 ways:
1. Miscellaneous vessel
2. RORO
3. Flatrack container
3.Are you trading company or manufacturer?
A:CLW is a manifacturer.
4.Payment:
A:30% advance payment after signed the contract, 70% balance should be paid before delivery. We can accept T/T and L/C
5. Delivery time:
A:25-45 working days after payment is received. According to different trucks models
6.What about the minimum order quantity?
A:The minimum order quantity is 1 Pcs.
7. What about the warranty period?
A: The warranty of our products is 1 year or 50000km, which comes first.
