Model NO.
ZVA-DN32
Working Pressure
0.05 to 0.6MPa
Spout Diameter
1-1/2"
Max Flow Rate
200L/M
Inlet Size
M54*1.5
Swivel
1-1/2"
Thread
Bsp or NPT
Thread Type
Female or Male
Weight
2.75kg
Transport Package
Each Fuel Nozzle with Box, 10PCS in a Carton
Specification
58*20*10cm
Trademark
ZVA
Origin
Wenzhou, Zhejiang, China
HS Code
84242000
Production Capacity
30000 Pieces Per Month
Warranty:
1 Year
Self Closure Time:
0.1s
LPM:
200L/M
Oil Outlet Caliber:
1-1/2"
Type:
Self Closure Fuel Nozzle
Material:
Aluminum and Brass

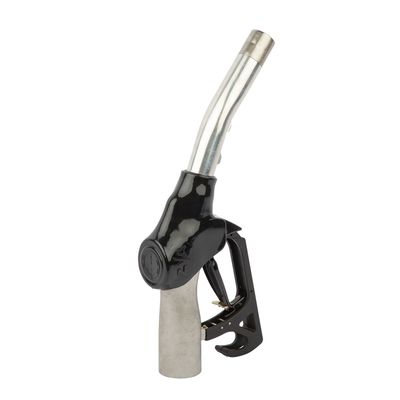

Refueling Equipment Standard ZVA Nozzle With Safe Swivel For Petrol Filling Stations
Specification
Specification
The New ZVA automatic nozzle with snap spout, and customer can select magnet handle.
1. All type of guards are available if requested.
2. All type of guards with block magnet are available if requested.
3. "ZVA" logo or blank are available.
4. 100% Factory tested.
5. Factory direct selling
6. One year warranty and guarantee
| Material | |
| Body | Aluminum |
| Spout | Aluminum |
| Swivel | Aluminum |
| Seals | Buna-N, Viton |
| Covers | PVC |
| Technical Specifical | |
| Working Pressure | 0.05 - 0.6 Mpa |
| Flow Rate | 200 L/m |
| Auto Shut-off sensibility | 0.1 second |
| Spout Internal Diameter | 39 mm |
| Intel Thread | Female/Male, BSP/NPT, 1-1/2" |
| Net Weight | 1.92 KG |
| Swivel Net Weight | 0.64 KG |
| Order Specifications | ||
| Item No. | Swivel | Inlet Size |
| ZVA DN3201 | without swivel | M54 × 1.5 |
| ZVA DN3202 | with swivel | Female, BSP, 1-1/2" |
| ZVA DN3203 | with swivel | Female, NPT, 1-1/2" |
| ZVA DN3204 | with swivel | Male, BSP, 1-1/2" |
| ZVA DN3205 | with swivel | Male, NPT, 1-1/2" |
| Color Options |
| Black |
1- Could you develop our own design? Yes
2- The fuel nozzle including swivel? Yes
3- Can we visit your factory? Yes
4- Could you send the sample for testing? Yes
5- Could you offer door to door service? Yes
