Model NO.
BSEC-C01-2
Environment Temperature
-40ºC~+75ºC
Cable Length
4 Meters
MOQ
1 PCS
Protection Degree
IP55
RCD
Type a
Certificate
CE, TUV, ISO, IP55, Ik10
Product Name

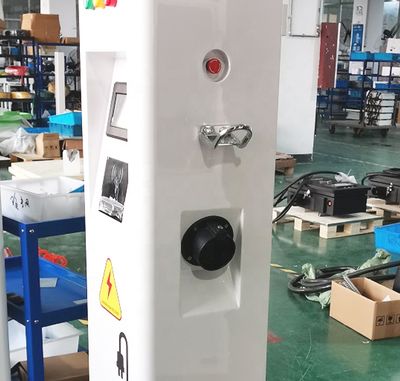

11kw AC EV Charger Floor-Mounted
Visual Indication
LED Indicator Light
Push Button
Emergency Stop
Language
English
Maximum Altitude
up to 2000m
Applicable Scene
Indoor/Outdoor
Transport Package
Standard Wooden Box
Specification
840*950*1740
Trademark
Bluesky
Origin
Zhejiang, China
Production Capacity
500 Piece/Pieces Per Month
Certification:
CE, ISO
Usage:
Car Battery
Color:
Customized
RFID:
Yes
Keyword:
EV Fast Charger
Communication Protocol:
Ocpp1.6
AC Input | ||||
Input frequency | 50Hz/60Hz | |||
Input voltage | 400Vac±10% | |||
Power factor | >0.99 | |||
Overall efficiency | 95% | |||
DC Output | ||||
Output voltage | 200-500Vac | 200-500Vac | 200-750Vac | 200-750Vac |
Max current | 150A | 200A | 200A | 200A |
Output power | 30/60KW | 80KW | 100KW | 120KW |
Output mode | DC outputs(Mode-4) | |||
Output interface | CCS 1 / CCS 2 / CHAdeMO / GB/T | |||
Number of Outputs | single charging gun | |||
General | ||||
Network connection | Ethernet/No/4G | |||
Communication Protocol | OCPP1.6 / No | |||
LCD Display | 7 inch TFT Color screen | |||
Language | English | |||
RFID | Yes/No | |||
RCD Type | Type A/Type B | |||
Installation method | floor-mounted | |||
Dimension(W/H/D) | 900*720*1600 | |||
Weight | 250KG | |||
Certificate | CE,TUV,ISO,IP54,IK10 | |||
Environment | ||||
Cooling | Air cooling | |||
Applicable Scene | Indoor/Outdoor | |||
Operating temperature | -35ºC~+60ºC(-35ºC~-20ºC,heating required) | |||
Storage temperature | -40ºC~+70ºC | |||
Operating humidity | ≤95% non-condensing | |||
Acoustic noise | <55db<> | |||
Maximum altitude | Up to 1000m | |||
We have rich experiences in EV Charging field. Thanks to cooperation with many clients from different continents and countries, We have customized lots of products for many clients. Thus we know how to provide more suitable products and solutions according to different regions. We are totally ready to provide our customers with timely, effective and full of care service to help them solve most of the EV Charging issues.
FACTORY
We are cooperating with customers from Belgium, installed in the parking area outside their own factory not only to provide charging benefits for their employees, but also to provide a charging place for electric vehicles on the market.
