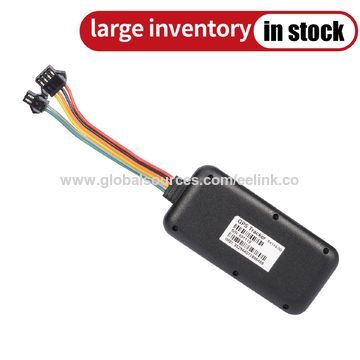

3G GPS tracker TK119-3G works with WCDMA / GSM network and GPS positioning system. It needs a piece SIM Card to upload the data via cellular communication network. Default uploading intervals is 30 seconds by default, uploading intervals range is 10-18000s which can be set by user.
-GSM / WCDMA dual-mode 8-frequency, universal in the world.
-Input voltage range: 6-36 V DC
-Double Module,GPS & LBS positioning.
-GPS precise positioning with A-GPS and uploaded by GPRS regularly, Supports real-time tracking and history track playback.
-Supports ACC status checking and vehicle status notifying.
-Built-in battery, Power disconnect alarm & Low battery alarm.
-Built-in G-sensor ,Vibration, collision and falling alarm.
-GEO-fence alarm, speed & shift alarm.
-Use relay to remotely cut the oil
-Extend I/O port to add extension function
-Multiple protocol support, can be integrated to platform of customers
-OTA upgrade firmware.
-Water proof level IP67
Function Interface: Power cable , Relays, ACC
Extended Interface: GPIO for adding extensions (need customization)
Functions,
Live GPS tracking via SMS, GPRS
ACC On or off
Vibration Alarm
Collision / falling Alarm
Speed Alarm
Geo-fence Alarm
low battery alarm
power disconnected alarm
| Voltage: | 12VDC/24VDC/36 VDC |
| Standby Current: | <10mA@12V |
| Work current: | <30mA@12V |
| GPS positioning accuracy: | 15m |
| GSM positioning accuracy: | 100m(Depending on density of base stations) |
| GPS Frequency: | 1575MHz |
| GSM Frequency: WCDMA frequency | 850/900/1800/1900MHz W850/W1900/W2100MHz |
| Hot/warm/cold start time: | 87(L)X41.6(W)X 12(H) |
| Operating temperature: | -20ºC~70ºC |
| Operating humidity: | 20%~80%RH |
| Net Weight: | 50 g |
Eelink provide GPS Tracking plarform service. Tracking website findtextile.com/store/eelink or findtextile.com/store/eelink
Eelink GPS Tracker supports GPS tracking platform of the third partyEelink protocol could be given for the integration into customers' GPS tracking platform.
Mileage reports, alarm reports,
Alerts via PC, APP, SMS,
Car rental solution
Taxi management solutionVehicle tracking solution
Trucking and logistics solution
Secure transportation solution
Service oriented transporter solution
Operation centric solution
School bus management solution
Employee commuting solution
Public safety solution
*Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
*For order over 500pcs or customized order, please contact our sales to make sure the current inventory. Our manufacturing capacity is 1, 200, 000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.
*All products have been strictly Quality Checked in house before packing.
*All products have been well packed before shipping.
*One year warranty is provided for all models. We will bear maintenance cost during warranty.
